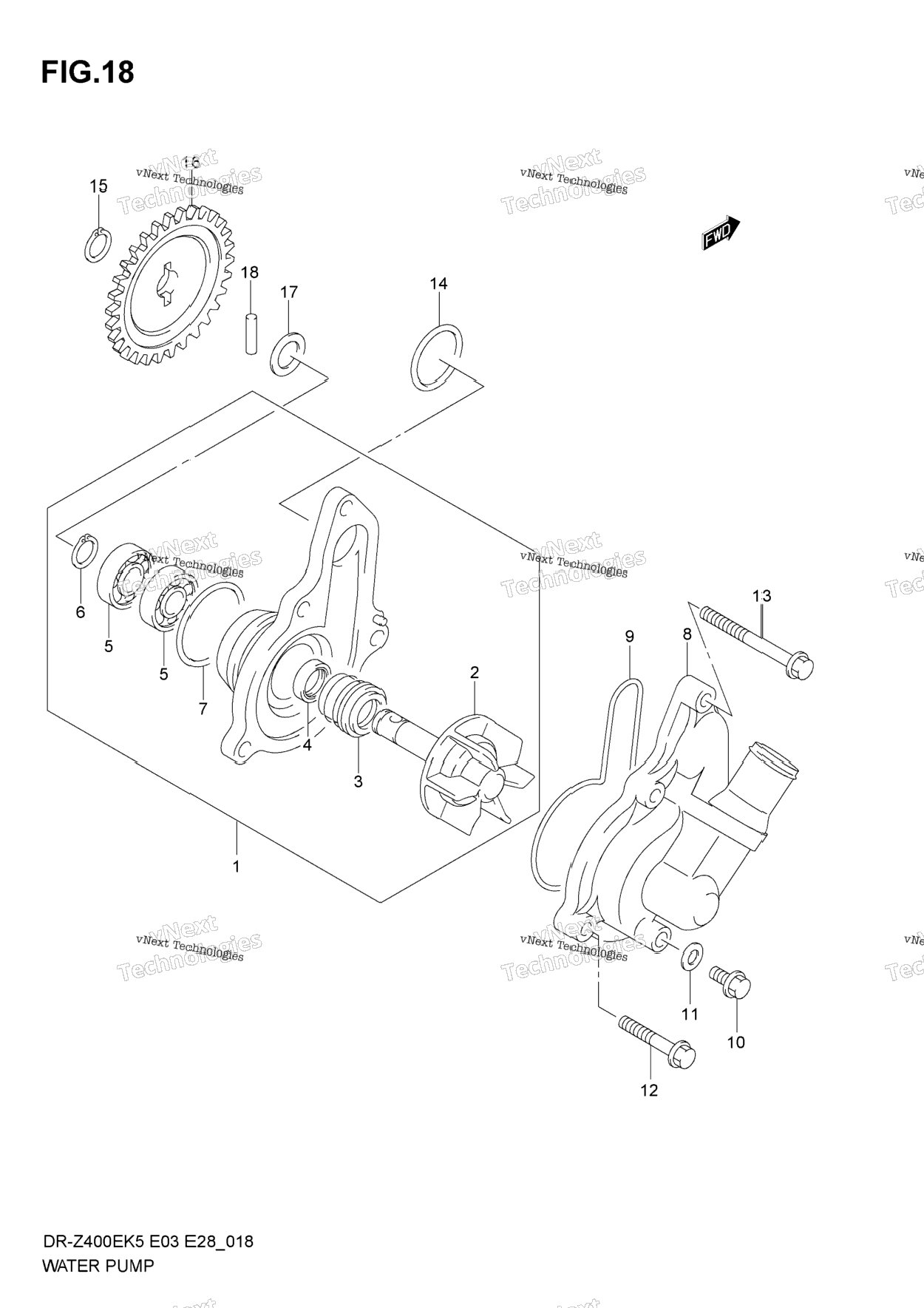

| 1 | 17400-29F00 | PUMP ASSY, WATER MODEL K5 | 1 шт. | — | |
|
| 2 | 17400-29F10 | PUMP ASSY, WATER MODEL K6/K7; Includes Item(s) 2 - 7 | 1 шт. | — | |
|
| 3 | 17491-29F00 | IMPELLER SHAFT MODEL K5 | 1 шт. | — | |
|
| 4 | 17491-29F10 | IMPELLER SHAFT MODEL K6/K7 | 1 шт. | — | |
|
| 5 | 17470-02F10 | SEAL, MECHANICAL | 1 шт. | — | |
|
| 6 | 17419-29F00 | OIL SEAL MODEL K5 | 1 шт. | — | |
|
| 7 | 09283-10004 | .SEAL OIL (10X21X5) MODEL K6/K7 | 1 шт. | — | |
|
| 8 | 08110-69000 | BEARING | 2 шт. | — | |
|
| 9 | 08332-11086 | E RING | 1 шт. | — | |
|
| 10 | 17435-33400 | O RING | 1 шт. | — | |
|
| 11 | 17410-29F21 | CASE WATER PUMP | 1 шт. | — | |
|
| 12 | 17435-29F00 | O RING WATER PUMP CASE | 1 шт. | — | |
|
| 13 | 01547-06103 | BOLT, DRAIN | 1 шт. | — | |
|
| 14 | 09168-06026 | GASKET | 1 шт. | — | |
|
| 15 | 09103-06204 | BOLT (6X30) | 3 шт. | — | |
|
| 16 | 09103-06209 | BOLT | 1 шт. | — | |
|
| 17 | 09280-22001 | O RING (D:2.4,ID:21.8) | 1 шт. | — | |
|
| 18 | 08331-31106 | CIRCLIP | 1 шт. | — | |
|
| 19 | 17461-29F00 | GEAR WATER PUMP DRIVEN (NT:30 | 1 шт. | — | |
|
| 20 | 09181-10158 | WASHER | 1 шт. | — | |
|
| 21 | 09261-04001 | PIN | 1 шт. | — | |
|
