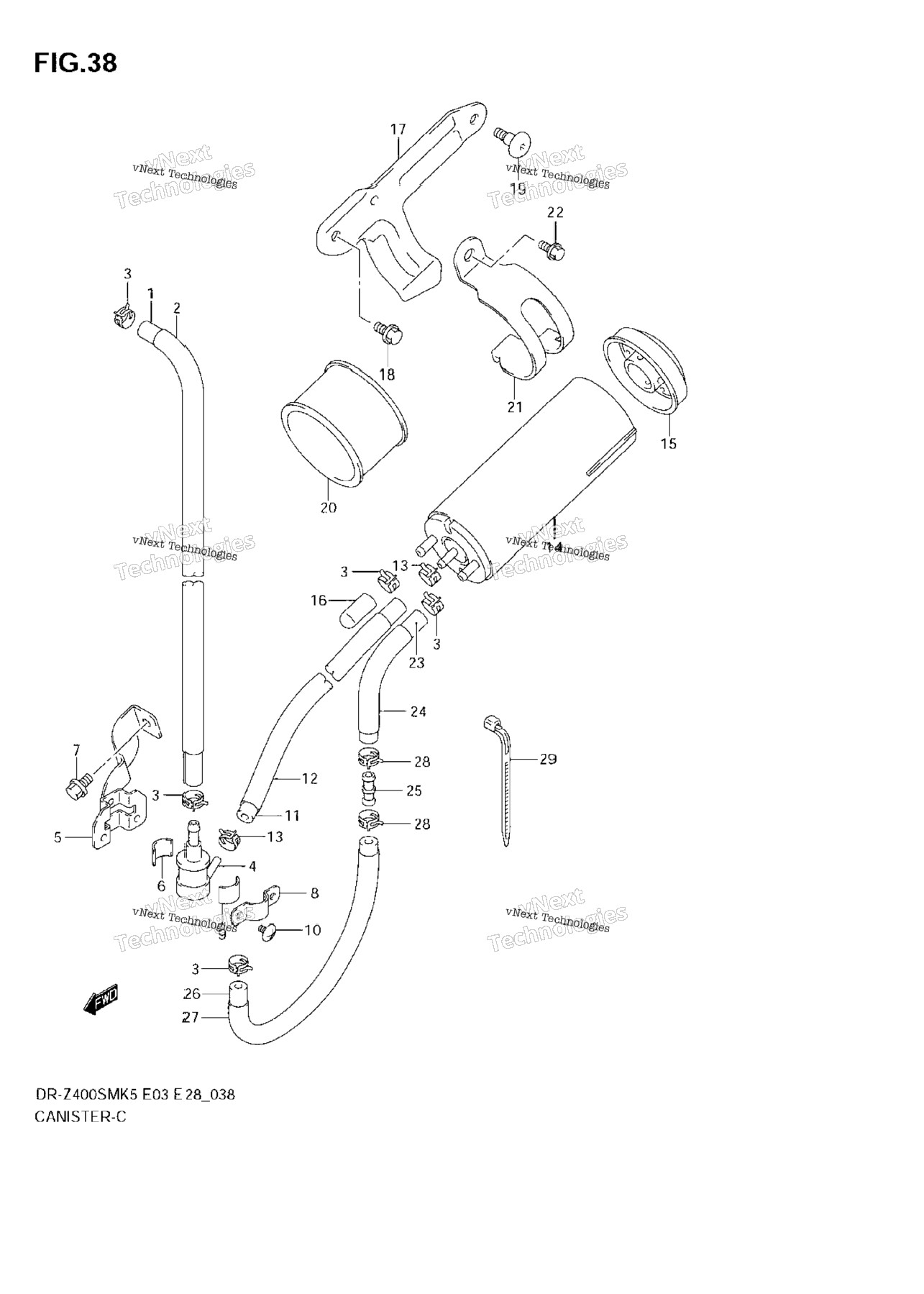

| 1 | 44434-29F00 | HOSE, BREATHER VALVE | 0 шт. | — | |
|
| 4 | 44240-17C00 | VALVE FUEL TANK BREATHER | 1 шт. | — | |
|
| 5 | 44890-29F00 | BRACKET BRTHR VALVE Includes Item(s) 6 | 0 шт. | — | |
|
| 8 | 44892-24A00 | PLATE FUEL TANK BREATHER NO.2 Includes Item(s) 9 | 1 шт. | — | |
|
| 9 | 44894-24A00 | CUSHION (10X30X2) | 1 шт. | — | |
|
| 9 | 44894-24A00 | CUSHION (10X30X2) | 1 шт. | — | |
|
| 10 | 02142-0408B | SCREW, CLAMP | 2 шт. | — | |
|
| 11 | 44435-29F00 | HOSE, VALVE/CANISTER | 0 шт. | — | |
|
| 12 | 09351-14152-00B | PROTECTOR L:2000!950 | 0 шт. | — | |
|
| 13 | 09401-12404 | CLIP | 2 шт. | — | |
|
| 14 | 17210-26E00 | CANISTER ASSY CHARCOAL | 1 шт. | — | |
|
| 15 | 17211-48E00 | CAP, REAR | 1 шт. | — | |
|
| 16 | 09251-07003 | CAP, FRONT | 1 шт. | — | |
|
| 17 | 44881-29F00 | BRACKET CANISTER | 0 шт. | — | |
|
| 18 | 01550-0816B | BOLT, BRACKET FRONT | 1 шт. | — | |
|
| 19 | 09116-06165 | BOLT, BRACKET REAR | 1 шт. | — | |
|
| 20 | 44883-26E00 | CUSHION CANISTER | 1 шт. | — | |
|
| 21 | 44882-29F00 | HOLDER CANISTER | 1 шт. | — | |
|
| 22 | 01550-0612B | BOLT, BRACKET | 1 шт. | — | |
|
| 22 | 01550-0612B | BOLT, HOLDER | 1 шт. | — | |
|
| 23 | 44436-29F00 | HOSE, CARB PURGE REAR | 0 шт. | — | |
|
| 25 | 09364-06005 | JOINT | 1 шт. | — | |
|
| 26 | 44437-29F00 | HOSE, CARB PURGE FRONT | 0 шт. | — | |
|
| 27 | 09351-14152-600 | PROTECTOR L:600!340 | 1 шт. | — | |
|
| 27 | 09351-14152-600 | PROTECTOR L:600!360 | 1 шт. | — | |
|
| 27 | 09351-14152-600 | PROTECTOR L:600!570 | 1 шт. | — | |
|
| 28 | 09401-11413 | CLIP | 5 шт. | — | |
|
| 28 | 09401-11413 | CLIP | 2 шт. | — | |
|
| 29 | 09407-14407 | CLAMP | 1 шт. | — | |
|
