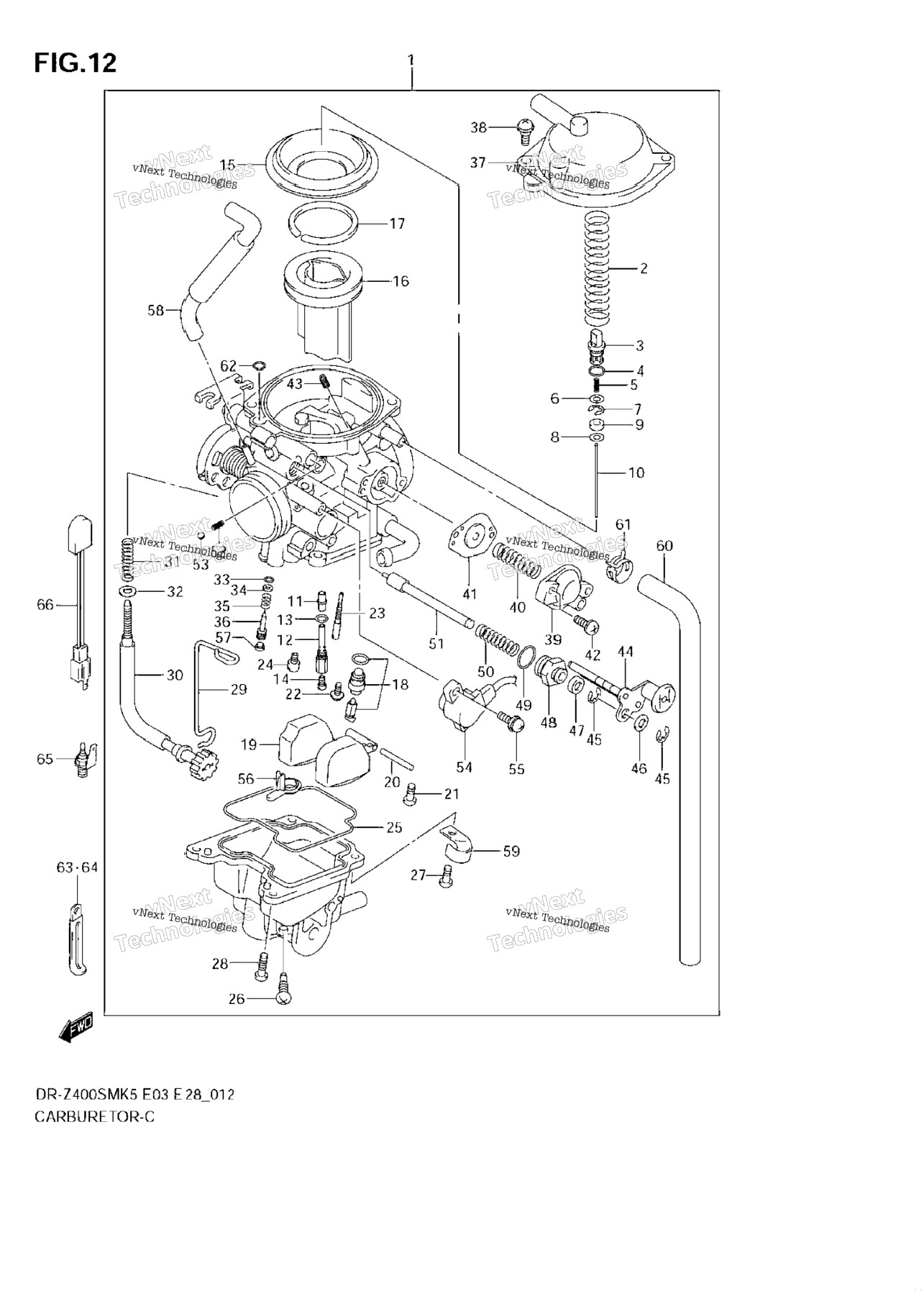

| 1 | 13200-29FC2 | CARBURETOR ASSY MODEL K5 E33 | 1 шт. | — | |
|
| 1 | 13200-29FB2 | CARBURETOR ASSY MODEL K5 E3,E28 | 1 шт. | — | |
|
| 1 | 13200-29FB3 | CARBURETOR ASSY MODEL K6 E3,E28 | 1 шт. | — | |
|
| 1 | 13200-29FC3 | CARBURETOR ASSY MODEL K6/K7/K8 E33; Includes Item(s) 2 - 62 | 1 шт. | — | |
|
| 1 | 13200-29FB4 | CARBURETOR ASSY MODEL K7/K8 E3,E28 | 1 шт. | — | |
|
| 2 | 13573-07F00 | SPRING | 1 шт. | — | |
|
| 3 | 13418-33E00 | HOLDER | 1 шт. | — | |
|
| 4 | 09280-05004 | O-RING (D:1.9 ID:4.8) | 1 шт. | — | |
|
| 5 | 13481-04F00 | SPRING | 1 шт. | — | |
|
| 6 | 13382-19E00 | WASHER | 1 шт. | — | |
|
| 7 | 13394-17E60 | .E-RING MULTIPLE JET NOZZLE | 1 шт. | — | |
|
| 8 | 13387-13F00 | RING | 1 шт. | — | |
|
| 9 | 13291-29FA0 | WASHER | 1 шт. | — | |
|
| 10 | 13383-29FB0 | NEEDLE, JET (5DH37-1) | 1 шт. | — | |
|
| 11 | 09494-00939 | JET, NEEDLE (P-0M) | 1 шт. | — | |
|
| 12 | 13385-29FA0 | .HOLDER JET | 1 шт. | — | |
|
| 13 | 13246-43010 | O RING | 1 шт. | — | |
|
| 14 | 09491-28012 | JET, MAIN (142.5) | 1 шт. | — | |
|
| 15 | 13507-17C01 | DIAPHRAGM | 1 шт. | — | |
|
| 16 | 13501-29FA0 | .VALVE PISTON | 1 шт. | — | |
|
| 17 | 13504-14E00 | RING | 1 шт. | — | |
|
| 18 | 13370-29FA0 | VALVE ASSY, NEEDLE | 1 шт. | — | |
|
| 19 | 13250-04F00 | FLOAT ASSY | 1 шт. | — | |
|
| 20 | 13254-01010 | .PIN, FLOAT | 1 шт. | — | |
|
| 21 | 02112-0408B | SCREW | 1 шт. | — | |
|
| 22 | 13602-05A10 | SCREW | 1 шт. | — | |
|
| 23 | 09492-22014 | .JET PILOT (#22.5) | 1 шт. | — | |
|
| 24 | 09491-62006 | .JET MAIN (#62.5) | 1 шт. | — | |
|
| 25 | 13258-04F00 | O RING | 1 шт. | — | |
|
| 26 | 13247-13A00 | .SCREW,DRAIN | 1 шт. | — | |
|
| 27 | 02112-04107 | SCREW | 3 шт. | — | |
|
| 28 | 02112-0412A | SCREW | 1 шт. | — | |
|
| 29 | 13671-29FA0 | CLIP | 1 шт. | — | |
|
| 30 | 13267-29FA0 | .SCREW ADJUST | 1 шт. | — | |
|
| 31 | 13268-37420 | .SPRING THROTTLE SCREW | 1 шт. | — | |
|
| 32 | 13615-43010 | WASHER | 1 шт. | — | |
|
| 33 | 13295-29900 | O RING | 1 шт. | — | |
|
| 34 | 13291-29900 | WASHER | 1 шт. | — | |
|
| 35 | 13268-48700 | .SPRING, THROTTLE SCREW | 1 шт. | — | |
|
| 36 | 13279-33E00 | ADJUSTER (3,1/2) | 1 шт. | — | |
|
| 37 | 13502-29FA0 | .COVER ASSY DIAPHRAGM | 1 шт. | — | |
|
| 38 | 13247-33E00 | SCREW | 2 шт. | — | |
|
| 39 | 13502-10F00 | COVER ASSY E3,E28 | 1 шт. | — | |
|
| 39 | 13502-08F00 | .COVER DIAPHRAGM E33 | 1 шт. | — | |
|
| 40 | 13481-41F20 | SPRING | 1 шт. | — | |
|
| 41 | 13480-10F00 | DIAPHRAGM ASSY | 1 шт. | — | |
|
| 42 | 13601-04148 | SCREW | 1 шт. | — | |
|
| 43 | 09492-27010 | JET, PILOT AIR (135) | 1 шт. | — | |
|
| 44 | 13420-29FA0 | PLATE ASSY | 1 шт. | — | |
|
| 45 | 13415-38300 | E RING | 2 шт. | — | |
|
| 46 | 13427-38300 | WASHER | 1 шт. | — | |
|
| 47 | 13682-31210 | .CAP, STARTER VALVE | 1 шт. | — | |
|
| 48 | 13418-44080 | .HOLDER, GUIDE | 1 шт. | — | |
|
| 49 | 13278-47090 | O RING | 1 шт. | — | |
|
| 50 | 13417-43010 | .SPRING STARTER VALVE | 1 шт. | — | |
|
| 51 | 13411-29FA0 | PLUNGER ASSY | 1 шт. | — | |
|
| 52 | 13434-43010 | SPRING | 1 шт. | — | |
|
| 53 | 13596-93010 | BALL | 1 шт. | — | |
|
| 54 | 13580-21F00 | SENSOR ASSY | 1 шт. | — | |
|
| 55 | 13602-19B50 | SCREW | 2 шт. | — | |
|
| 56 | 13387-29FA1 | RING | 1 шт. | — | |
|
| 57 | 13281-05A00 | PLUG | 1 шт. | — | |
|
| 58 | 13683-29FB0 | HOSE ASSY, BOOST (4X8) | 1 шт. | — | |
|
| 59 | 13671-14D00 | PLATE | 1 шт. | — | |
|
| 60 | 13684-29FB0 | HOSE, AIR VENT (6.5X10.5) | 1 шт. | — | |
|
| 61 | 13671-19F00 | CLIP | 1 шт. | — | |
|
| 62 | 13295-33010 | .O-RING | 1 шт. | — | |
|
| 63 | 09404-06429 | CLAMP, L:45 MODEL K6/K7/K8 | 1 шт. | — | |
|
| 63 | 09404-06432 | CLAMP, L:65 MODEL K5 | 1 шт. | — | |
|
| 64 | 09404-08420 | CLAMP, L:120 | 1 шт. | — | |
|
| 65 | 13650-25E01 | HEATER ASSY CARBURETOR (15W) OPT | 1 шт. | — | |
|
| 66 | 13655-16F00 | THERMO SWITCH CARB HEATER OPT | 1 шт. | — | |
|
