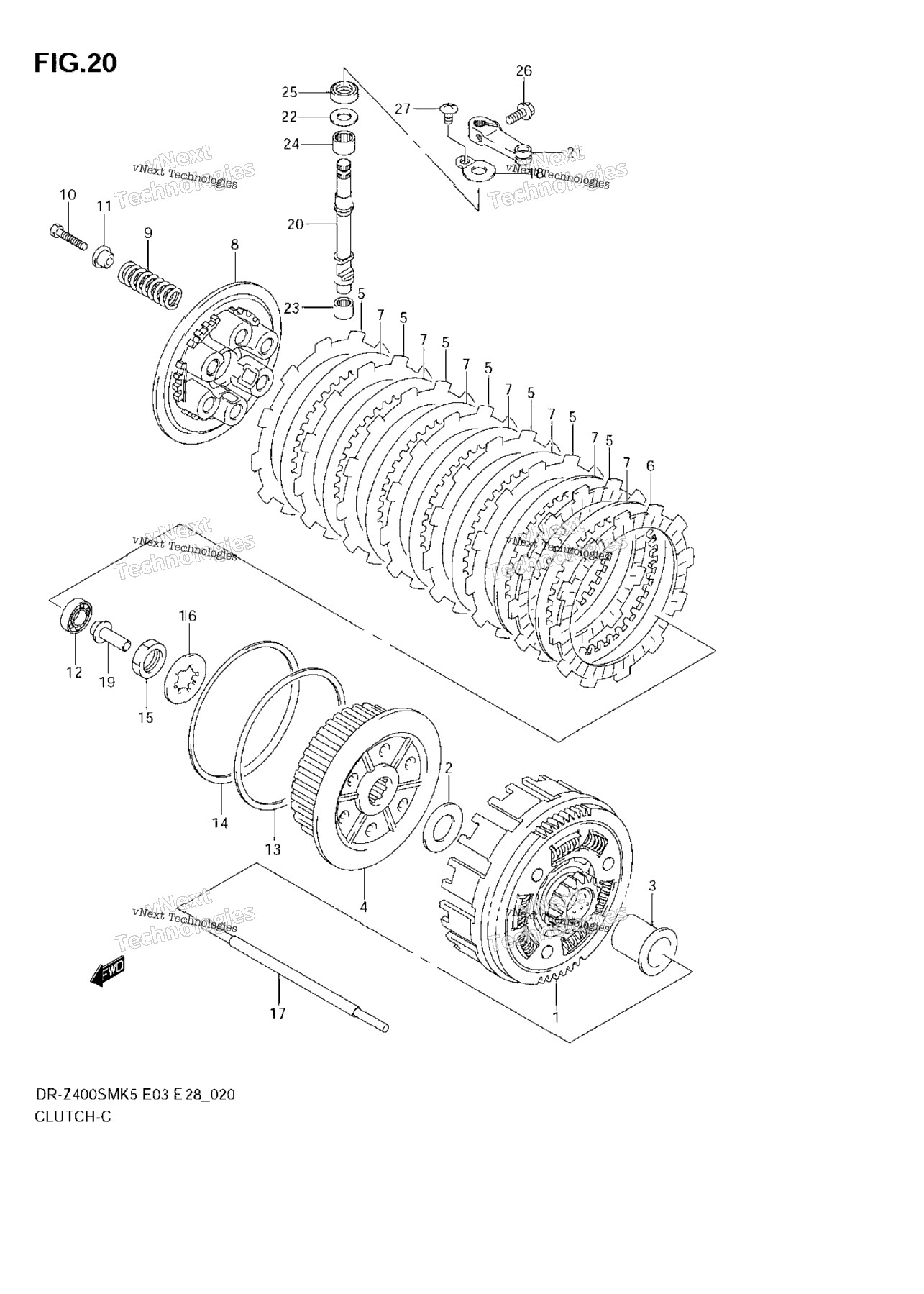

| 1 | 21200-29F10 | GEAR ASSY PRIMARY DRIVEN (NT: NT:74/16 | 1 шт. | — | |
|
| 2 | 08211-22425 | WASHER | 1 шт. | — | |
|
| 3 | 21251-29F00 | SPACER PRIMARY DRIVEN GEAR | 1 шт. | — | |
|
| 4 | 21410-29F00 | HUB CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 21441-29F00 | PLATE CLUTCH DRIVE NO.1 (T:3. | 7 шт. | — | |
|
| 6 | 21442-29F00 | PLATE CLUTCH DRIVE NO.2 (T:3. | 1 шт. | — | |
|
| 7 | 21451-44D00 | PLATE CLUTCH DRIVEN (T:1.6) | 7 шт. | — | |
|
| 8 | 21462-29F00 | DISC CLUTCH PRESSURE | 1 шт. | — | |
|
| 9 | 21413-29F00 | SPRING CLUTCH | 6 шт. | — | |
|
| 10 | 07130-0630A | BOLT | 6 шт. | — | |
|
| 11 | 21414-29F00 | WASHER | 6 шт. | — | |
|
| 12 | 09262-12001 | BEARING, PRESSURE DISK 12X28X8 | 1 шт. | — | |
|
| 13 | 09160-00003 | WASHER | 1 шт. | — | |
|
| 14 | 09164-00008 | WASHER, WAVE | 1 шт. | — | |
|
| 15 | 09140-20001 | NUT | 1 шт. | — | |
|
| 16 | 09167-22021 | WASHER LOCK (22X42X0.8) | 1 шт. | — | |
|
| 17 | 23110-29F00 | ROD CLUTCH PUSH | 1 шт. | — | |
|
| 18 | 23117-05200 | RETAINER, CL RLSE OIL SEAL | 1 шт. | — | |
|
| 19 | 23121-29F00 | PIECE CL PUSH | 1 шт. | — | |
|
| 20 | 23122-29F00 | CAMSHAFT CLUTCH RELEASE | 1 шт. | — | |
|
| 21 | 23271-20902 | ARM CLUTCH RELEASE | 1 шт. | — | |
|
| 22 | 09181-10195 | WASHER, CLUTCH RELEASE 10X20X1 | 1 шт. | — | |
|
| 23 | 09263-10014 | BEARING, CLUTCH RELEASE LOW 10X14X10 | 1 шт. | — | |
|
| 24 | 09263-12024 | BEARING, CLUTCH RELEASE UP 12X16X10 | 1 шт. | — | |
|
| 25 | 09282-10012 | SEAL, CLUTCH RELEASE ARM 10X20X6 | 1 шт. | — | |
|
| 26 | 01547-0616A | BOLT, CLUTCH RELEASE ARM | 1 шт. | — | |
|
| 27 | 02142-0610A | STOPPER, CL RLSE CAM SHAFT | 1 шт. | — | |
|
