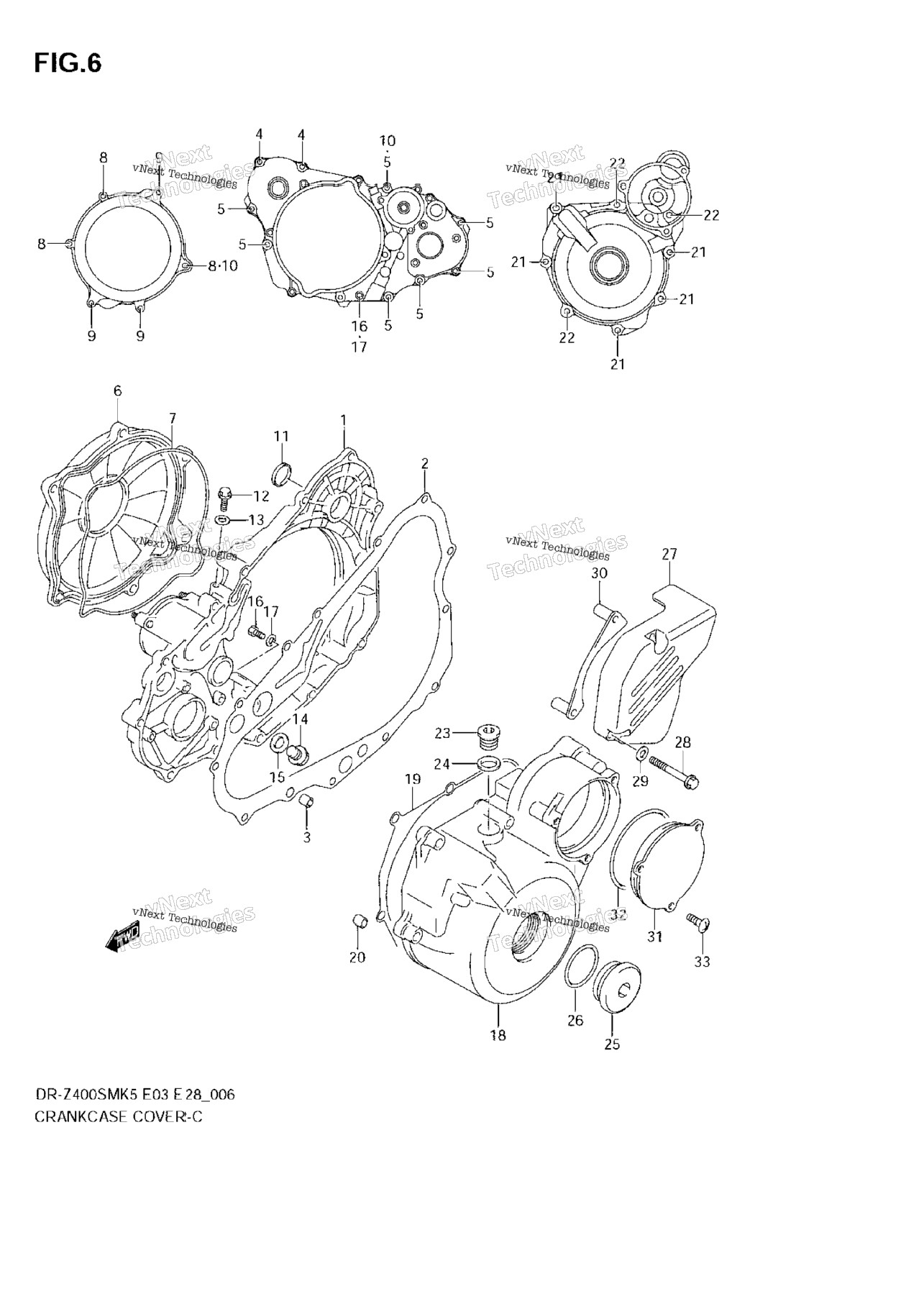

| 1 | 11341-29F50 | COVER CLUTCH INNER | 1 шт. | — | |
|
| 2 | 11482-29F00 | .GASKET CLUTCH COVER | 1 шт. | — | |
|
| 6 | 11371-29F50 | COVER CLUTCH OUTER | 1 шт. | — | |
|
| 7 | 11484-29F00 | .O-RING CLUTCH COVER OUTER | 1 шт. | — | |
|
| 8 | 01547-0620B | BOLT MODEL K5/K6 | 2 шт. | — | |
|
| 8 | 01547-0620A | BOLT MODEL K7/K8 | 2 шт. | — | |
|
| 8 | 01547-0620B | BOLT, OUTER COVER MODEL K5/K6 | 3 шт. | — | |
|
| 8 | 01547-0620A | BOLT, OUTER COVER MODEL K7/K8 | 3 шт. | — | |
|
| 9 | 01547-0655A | BOLT MODEL K7/K8 | 3 шт. | — | |
|
| 9 | 01547-0655B | BOLT, OUTER COVER MODEL K5/K6 | 3 шт. | — | |
|
| 11 | 11342-15D00 | PLUG CLUTCH COVER KICK | 1 шт. | — | |
|
| 12 | 01547-0612B | PLUG, OIL GALLERY MODEL K5/K6 | 1 шт. | — | |
|
| 12 | 01547-0612A | PLUG, OIL GALLERY MODEL K7/K8 | 1 шт. | — | |
|
| 13 | 09168-06023 | GASKET | 1 шт. | — | |
|
| 13 | 09168-06023 | GASKET | 2 шт. | — | |
|
| 14 | 09247-12006 | PLUG, OIL GALLERY (12X10) | 1 шт. | — | |
|
| 15 | 09168-12002 | GASKET (12.1X16.2X1.2) | 1 шт. | — | |
|
| 16 | 01550-0610B | BOLT, OIL LEVEL MODEL K5/K6 | 1 шт. | — | |
|
| 16 | 01550-0610A | BOLT, OIL LEVEL MODEL K7/K8 | 1 шт. | — | |
|
| 17 | 09168-06004 | GASKET (6.2X11X1.2) | 1 шт. | — | |
|
| 18 | 11351-29F60 | COVER MAGNETO | 1 шт. | — | |
|
| 19 | 11483-29F00 | .GASKET MAGNETO COVER | 1 шт. | — | |
|
| 20 | 04211-09149 | PIN | 2 шт. | — | |
|
| 20 | 04211-09149 | PIN | 2 шт. | — | |
|
| 21 | 01547-0630B | BOLT MODEL K5/K6 | 7 шт. | — | |
|
| 21 | 01547-0630B | BOLT MODEL K5/K6 | 5 шт. | — | |
|
| 21 | 01547-0630A | BOLT MODEL K7/K8 | 7 шт. | — | |
|
| 21 | 01547-0630A | BOLT MODEL K7/K8 | 5 шт. | — | |
|
| 22 | 01547-0640B | BOLT MODEL K5/K6 | 3 шт. | — | |
|
| 22 | 01547-0640A | BOLT MODEL K7/K8 | 3 шт. | — | |
|
| 23 | 09248-14005 | PLUG, T.D.C (14X12) | 1 шт. | — | |
|
| 24 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 25 | 09259-36016-20H | PLUG (36X10,SILVER) | 1 шт. | — | |
|
| 26 | 09280-33004 | O-RING (D:3.1,ID:32.7) | 1 шт. | — | |
|
| 27 | 11360-29F50 | COVER ENGINE SPROCKET (UNIFIE | 1 шт. | — | |
|
| 28 | 01547-0650B | BOLT MODEL K5/K6 | 2 шт. | — | |
|
| 28 | 01547-0650A | BOLT MODEL K7/K8 | 2 шт. | — | |
|
| 29 | 09160-06126 | WASHER (6.5X14X2) | 2 шт. | — | |
|
| 30 | 27640-29F11 | PLATE FR CHAIN GUIDE (15T) | 1 шт. | — | |
|
| 31 | 11352-29F50 | COVER STARTER IDLE GEAR | 1 шт. | — | |
|
| 32 | 09280-71008 | .O-RING (D:2.6 ID:67.1) | 1 шт. | — | |
|
| 33 | 02142-0616B | .SCREW MODEL K5/K6 | 3 шт. | — | |
|
| 33 | 02142-0616A | .SCREW MODEL K7/K8 | 3 шт. | — | |
|
