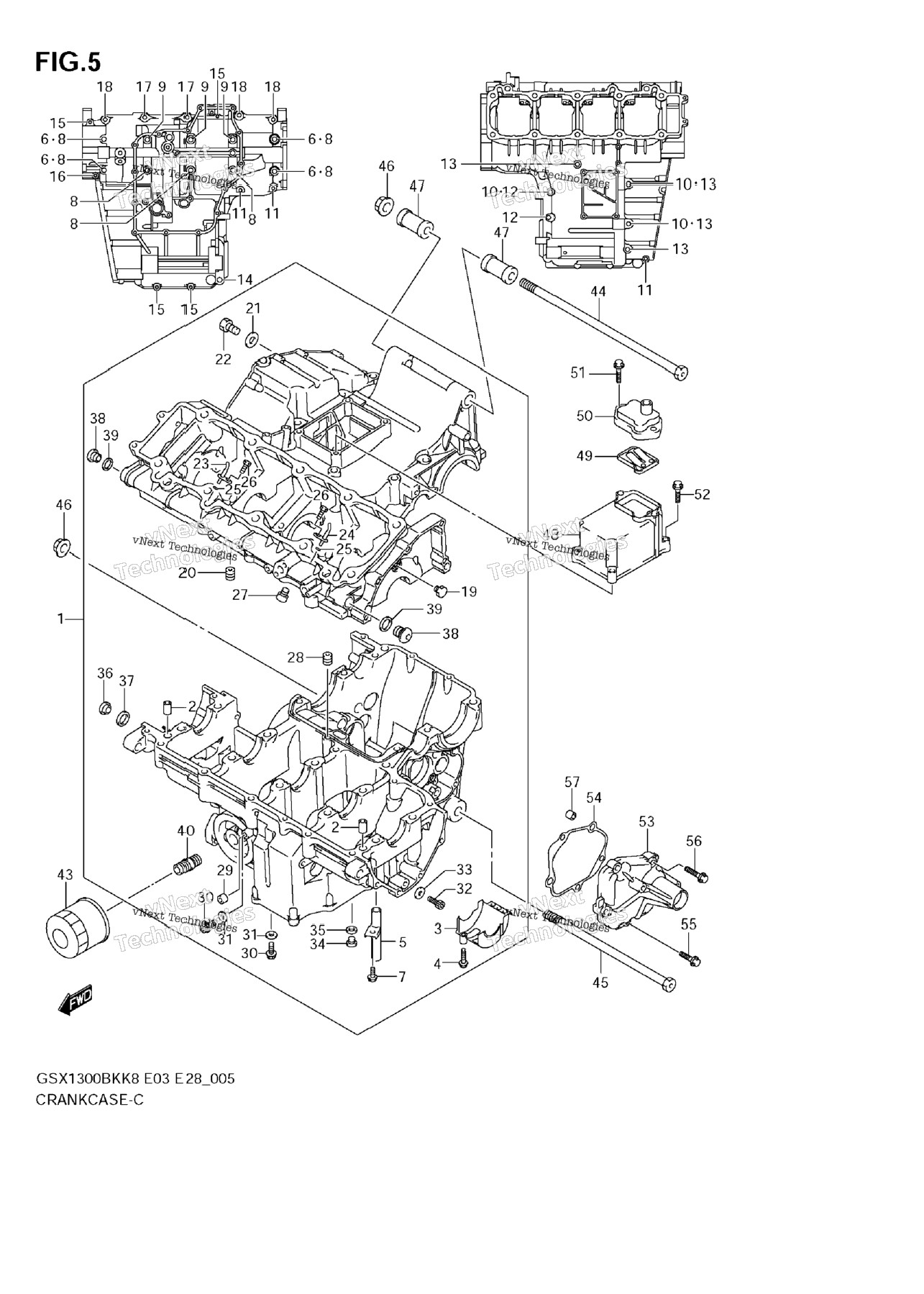

| 1 | 11300-23871 | CRANKCASE SET Includes Item(s) 2 - 42 | 0 шт. | — | |
|
| 2 | 11319-33E50 | PIN | 4 шт. | — | |
|
| 3 | 11323-24F10 | SEPARATOR, OIL | 0 шт. | — | |
|
| 5 | 11328-24F00 | UNION, BREATHER OIL | 1 шт. | — | |
|
| 6 | 09168-10031 | GASKET (10.2X20X2.3) | 4 шт. | — | |
|
| 7 | 01547-0612A | BOLT, BREATHER UNION | 1 шт. | — | |
|
| 8 | 09103-09008 | BOLT (9X95) | 7 шт. | — | |
|
| 9 | 09103-09010 | BOLT (9X115) | 3 шт. | — | |
|
| 11 | 01547-0650A | BOLT | 3 шт. | — | |
|
| 12 | 01550-0865A | BOLT | 2 шт. | — | |
|
| 13 | 01550-0880A | BOLT | 4 шт. | — | |
|
| 14 | 01550-1060A | BOLT | 1 шт. | — | |
|
| 15 | 01547-0640A | BOLT | 4 шт. | — | |
|
| 16 | 01547-0660A | BOLT | 1 шт. | — | |
|
| 17 | 09103-08155 | BOLT (8X50) | 0 шт. | — | |
|
| 18 | 09103-08355 | BOLT (8X60) | 3 шт. | — | |
|
| 19 | 11393-33E01 | JET, MAGNETO COOLING | 1 шт. | — | |
|
| 20 | 09493-20012 | JET, T/M COOLING | 1 шт. | — | |
|
| 23 | 11390-34E00 | JET,PISTON COOLING | 2 шт. | — | |
|
| 24 | 11390-34E10 | JET,PISTON COOLING | 2 шт. | — | |
|
| 25 | 09280-04004 | O RING (D:1.2,ID:4) | 4 шт. | — | |
|
| 26 | 09106-06075 | BOLT | 4 шт. | — | |
|
| 27 | 09106-06076 | PLUG, PISTON JET OIL GALLERY | 4 шт. | — | |
|
| 28 | 09493-36006 | JET, T/M OIL 180 | 1 шт. | — | |
|
| 29 | 11532-46E00 | JET, OIL GALLERY | 1 шт. | — | |
|
| 30 | 07120-0612B | PLUG, OIL GALLERY | 2 шт. | — | |
|
| 30 | 07120-0612B | PLUG, T/M COOLING | 1 шт. | — | |
|
| 31 | 09168-06023 | GASKET | 2 шт. | — | |
|
| 31 | 09168-06023 | GASKET, T/M COOLING | 1 шт. | — | |
|
| 32 | 07130-0816B | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 33 | 09168-08016 | GASKET | 3 шт. | — | |
|
| 33 | 09168-08016 | GASKET (8.2X14X1) | 1 шт. | — | |
|
| 34 | 09248-10010 | PLUG (10X10) | 1 шт. | — | |
|
| 35 | 09168-10002 | GASKET (10X14X3.6) | 1 шт. | — | |
|
| 36 | 09248-16012 | PLUG, OIL GALLERY (16X8) | 1 шт. | — | |
|
| 37 | 09168-16002 | GASKET (16X22X2) | 1 шт. | — | |
|
| 38 | 09248-14012 | PLUG (14X12) | 1 шт. | — | |
|
| 39 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 40 | 16591-06B01 | UNION, OIL FILTER STAND | 1 шт. | — | |
|
| 42 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 42 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) RH SEE ILLUS ON FIG.8 | 1 шт. | — | |
|
| 42 | 12228-24F00-0B0 | .BEARING,CRANK THRUST,L (BLAC | 1 шт. | — | |
|
| 42 | 12228-24F00-0C0 | .BEARING,CRANK THRUST,L (BLUE | 1 шт. | — | |
|
| 42 | 12228-24F00-0A0 | .BEARING,CRANK THRUST,L (RED) LH SEE ILLUS ON FIG.8 | 1 шт. | — | |
|
| 42 | 12228-24F00-0F0 | .BEARING,CRANK THRUST,L (WHIT | 1 шт. | — | |
|
| 42 | 12228-24F00-0E0 | .BEARING,CRANK THRUST,L (YELL | 1 шт. | — | |
|
| 43 | 16510-03G00-X07 | FILTER ASSY, ENGINE OIL | 1 шт. | — | |
|
| 44 | 09103-12066 | BOLT (12X320) | 1 шт. | — | |
|
| 45 | 09103-12067 | BOLT (12X240) | 1 шт. | — | |
|
| 46 | 09159-12054 | NUT | 2 шт. | — | |
|
| 47 | 11611-24F00 | SPACER,ENG MTG (L47) | 2 шт. | — | |
|
| 48 | 11331-23H00 | COVER, BREATHER | 0 шт. | — | |
|
| 49 | 13150-01H00 | VALVE ASSY, BREATHER REED | 1 шт. | — | |
|
| 50 | 11372-21H00 | COVER,BREATHER REED VALVE | 1 шт. | — | |
|
| 51 | 01547-0620A | BOLT | 2 шт. | — | |
|
| 52 | 01547-0630A | BOLT | 4 шт. | — | |
|
| 53 | 11383-23H00 | COVER, GEAR SHIFT | 1 шт. | — | |
|
| 54 | 11485-24F00 | GASKET | 1 шт. | — | |
|
| 55 | 01547-0625A | BOLT | 1 шт. | — | |
|
| 55 | 01547-0625A | BOLT | 3 шт. | — | |
|
| 56 | 01547-0635A | BOLT | 2 шт. | — | |
|
| 57 | 04211-09149 | PIN | 2 шт. | — | |
|
