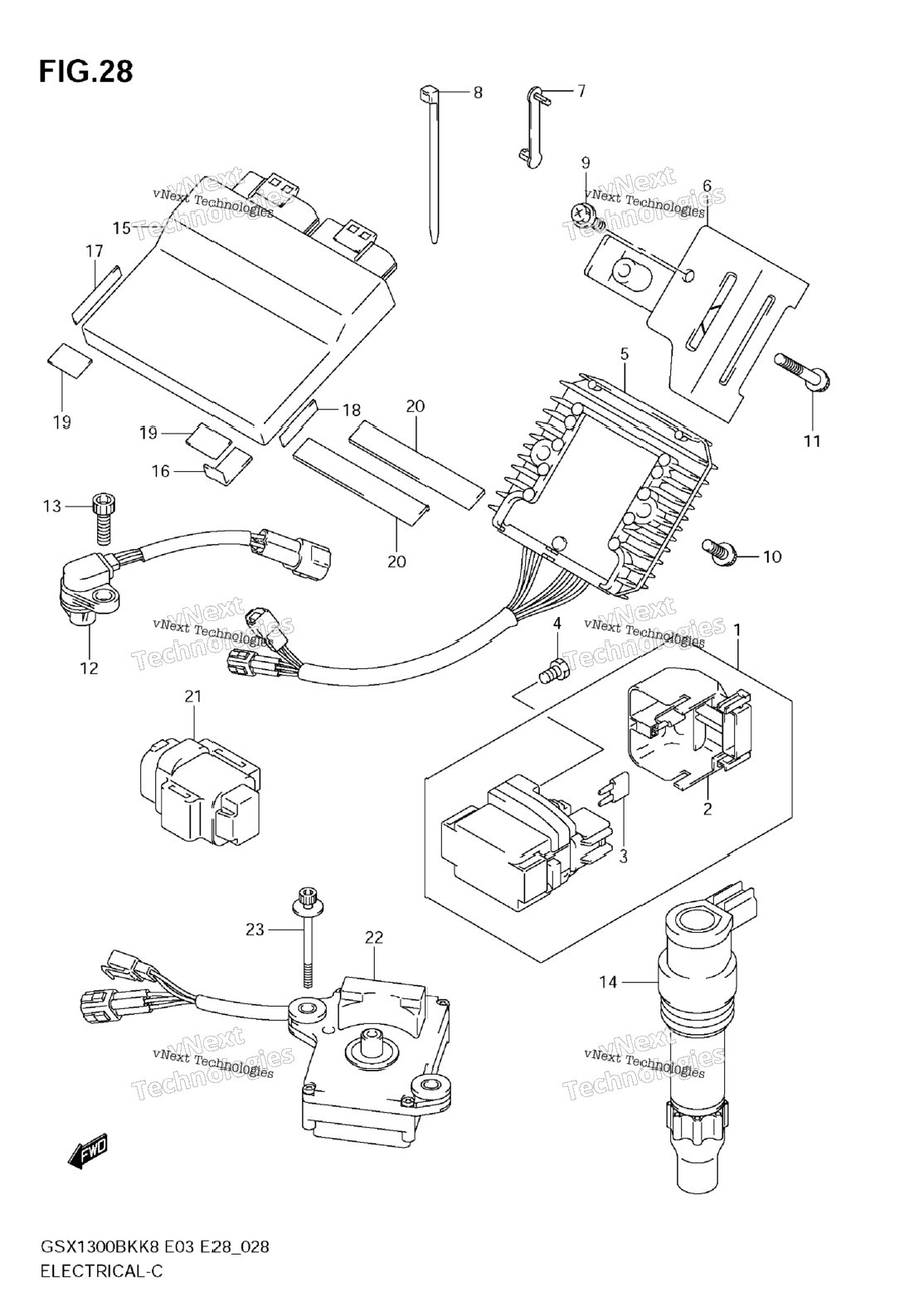

| 1 | 31800-41G00 | RELAY ASSY, STARTING MOTOR Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 31861-38G00 | COVER, RECTIFIER | 1 шт. | — | |
|
| 3 | 09481-30501 | FUSE (30A) | 2 шт. | — | |
|
| 4 | 09128-06013 | BOLT, STARTING MOTOR (6X8) | 2 шт. | — | |
|
| 5 | 32800-15H00 | RECTIFIER ASSY | 1 шт. | — | |
|
| 6 | 32820-23H00 | COVER, RECTIFIER | 0 шт. | — | |
|
| 7 | 36651-48E00 | CLAMP, RECTIFIER LEAD | 1 шт. | — | |
|
| 8 | 09407-10404 | CLAMP (L:100) | 1 шт. | — | |
|
| 9 | 02162-0610B | BOLT, COVER RECTIFIER | 1 шт. | — | |
|
| 10 | 07120-0625B | BOLT, RECTIFIER | 1 шт. | — | |
|
| 11 | 07120-0650B | BOLT, RECTIFIER | 1 шт. | — | |
|
| 12 | 33220-01H00 | SENSOR ASSY,CAM POSITION | 1 шт. | — | |
|
| 13 | 07130-0616A | BOLT, CAM POSITION SENSOR | 1 шт. | — | |
|
| 14 | 33410-24F10 | COIL ASSY, IGNITION | 4 шт. | — | |
|
| 15 | 32920-23H10 | CONTROL UNIT, FI | 0 шт. | — | |
|
| 16 | 32920-23H20 | CONTROL UNIT, FI E33 | 0 шт. | — | |
|
| 17 | 33652-38A10 | CUSHION, FI (20X90X2.0) CUT AS REQUIRED (20X40) | 1 шт. | — | |
|
| 18 | 33652-38A10 | CUSHION, FI (20X90X2.0) CUT AS REQUIRED (10X50) | 1 шт. | — | |
|
| 19 | 33652-38A10 | CUSHION, FI (20X90X2.0) CUT AS REQUIRED (10X35) | 1 шт. | — | |
|
| 20 | 33651-37000 | PROTECTOR (170X95X3.0) CUT AS REQUIRED (20X11) | 2 шт. | — | |
|
| 21 | 33652-38A10 | CUSHION, FI (20X90X2.0) | 2 шт. | — | |
|
| 22 | 33960-27G00 | SENSOR ASSY, FUEL CUT | 1 шт. | — | |
|
| 23 | 33970-41G00 | ACTUATOR ASSY, EXHAUST CONTROL | 1 шт. | — | |
|
| 24 | 09116-06198 | BOLT, ACTUATOR (6X60) | 0 шт. | — | |
|
