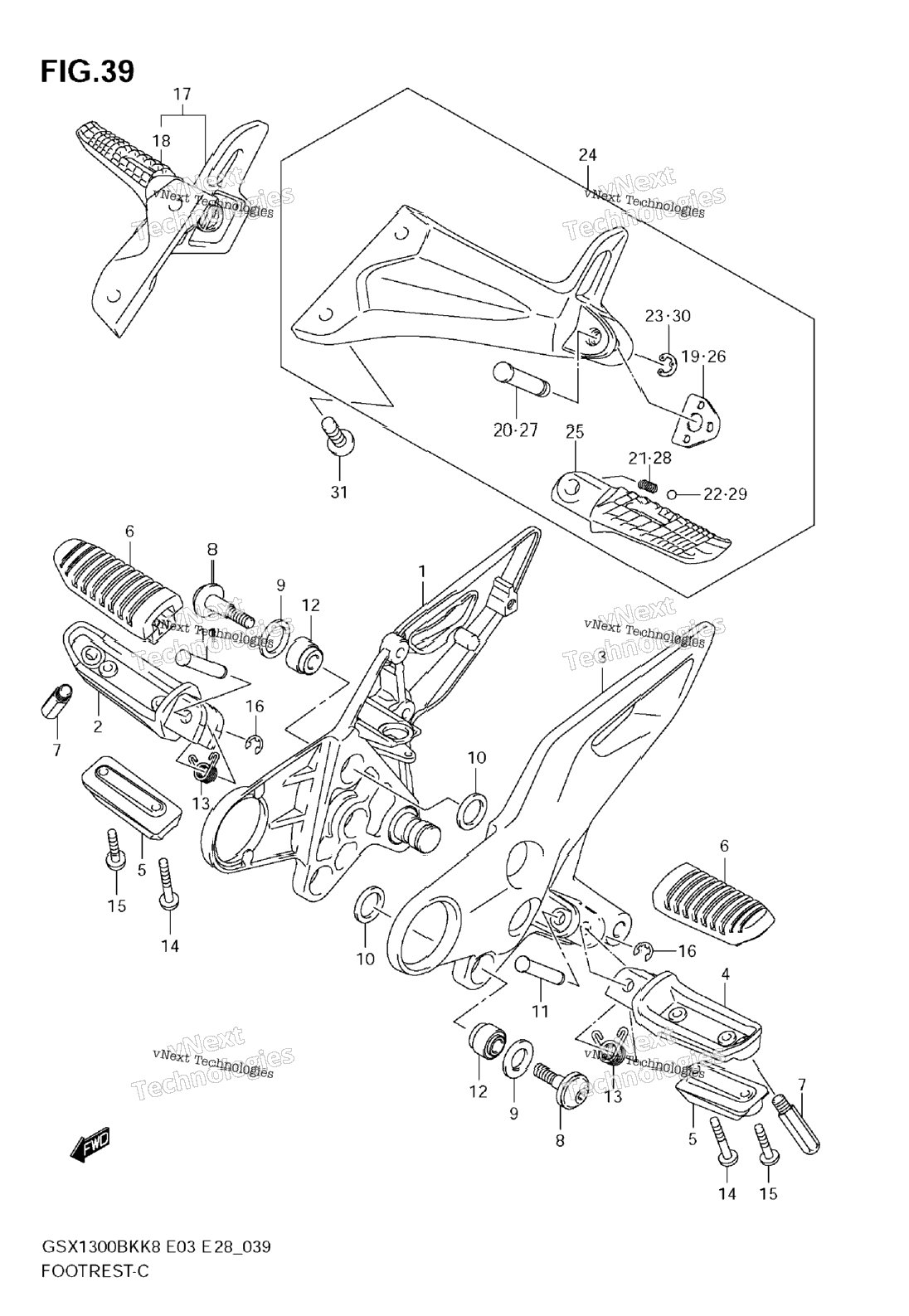

| 1 | 43510-23H00 | BRACKET, FRONT FOOTREST RH | 0 шт. | — | |
|
| 2 | 43511-44G10 | BAR,FR FOOTREST,R | 1 шт. | — | |
|
| 3 | 43521-23H00 | BRACKET, FRONT FOOTREST LH | 0 шт. | — | |
|
| 4 | 43521-44G10 | BAR,FR FOOTREST,L | 1 шт. | — | |
|
| 5 | 43536-44G00 | BALANCER, FRONT FOOTREST | 2 шт. | — | |
|
| 6 | 43550-44G10 | RUBBER, FOOTREST | 2 шт. | — | |
|
| 7 | 43576-48B20 | BOLT, BANK SENSOR | 2 шт. | — | |
|
| 8 | 09106-08147 | BOLT, FOOTREST BRACKET | 6 шт. | — | |
|
| 9 | 09161-13004 | WASHER, FOOTREST BUSH OUTER | 6 шт. | — | |
|
| 10 | 09161-17002 | WASHER, FOOTREST BUSH INNER | 6 шт. | — | |
|
| 11 | 09208-08019 | PIN | 2 шт. | — | |
|
| 12 | 09319-08045 | BUSH | 6 шт. | — | |
|
| 13 | 09448-14046 | SPRING | 2 шт. | — | |
|
| 14 | 02142-0525A | SCREW, INNER | 2 шт. | — | |
|
| 15 | 02142-0530A | SCREW, OUTER | 2 шт. | — | |
|
| 17 | 43600-23H00 | FOOTREST ASSY, PILLION RH Includes Item(s) 18 - 23 | 1 шт. | — | |
|
| 18 | 43611-41G00 | BAR, PILLION FOOTREST RH | 1 шт. | — | |
|
| 24 | 43700-23H00 | FOOTREST ASSY, PILLION LH Includes Item(s) 25 - 30 | 1 шт. | — | |
|
| 25 | 43621-41G00 | BAR, PILLION FOOTREST LH | 1 шт. | — | |
|
| 26 | 43816-01H10 | PLATE,PILLION FOOTREST | 1 шт. | — | |
|
| 26 | 43816-01H10 | PLATE,PILLION FOOTREST | 1 шт. | — | |
|
| 27 | 09208-08011 | PIN | 1 шт. | — | |
|
| 27 | 09208-08011 | PIN | 1 шт. | — | |
|
| 28 | 09440-05003 | SPRING | 1 шт. | — | |
|
| 28 | 09440-05003 | SPRING | 1 шт. | — | |
|
| 29 | 06111-07004 | BALL | 1 шт. | — | |
|
| 29 | 06111-07004 | BALL | 1 шт. | — | |
|
| 30 | 08332-1106A | E-RING | 1 шт. | — | |
|
| 30 | 08332-1106A | E-RING | 1 шт. | — | |
|
| 30 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 31 | 09106-08181 | BOLT, PILLION FOOTREST | 4 шт. | — | |
|
