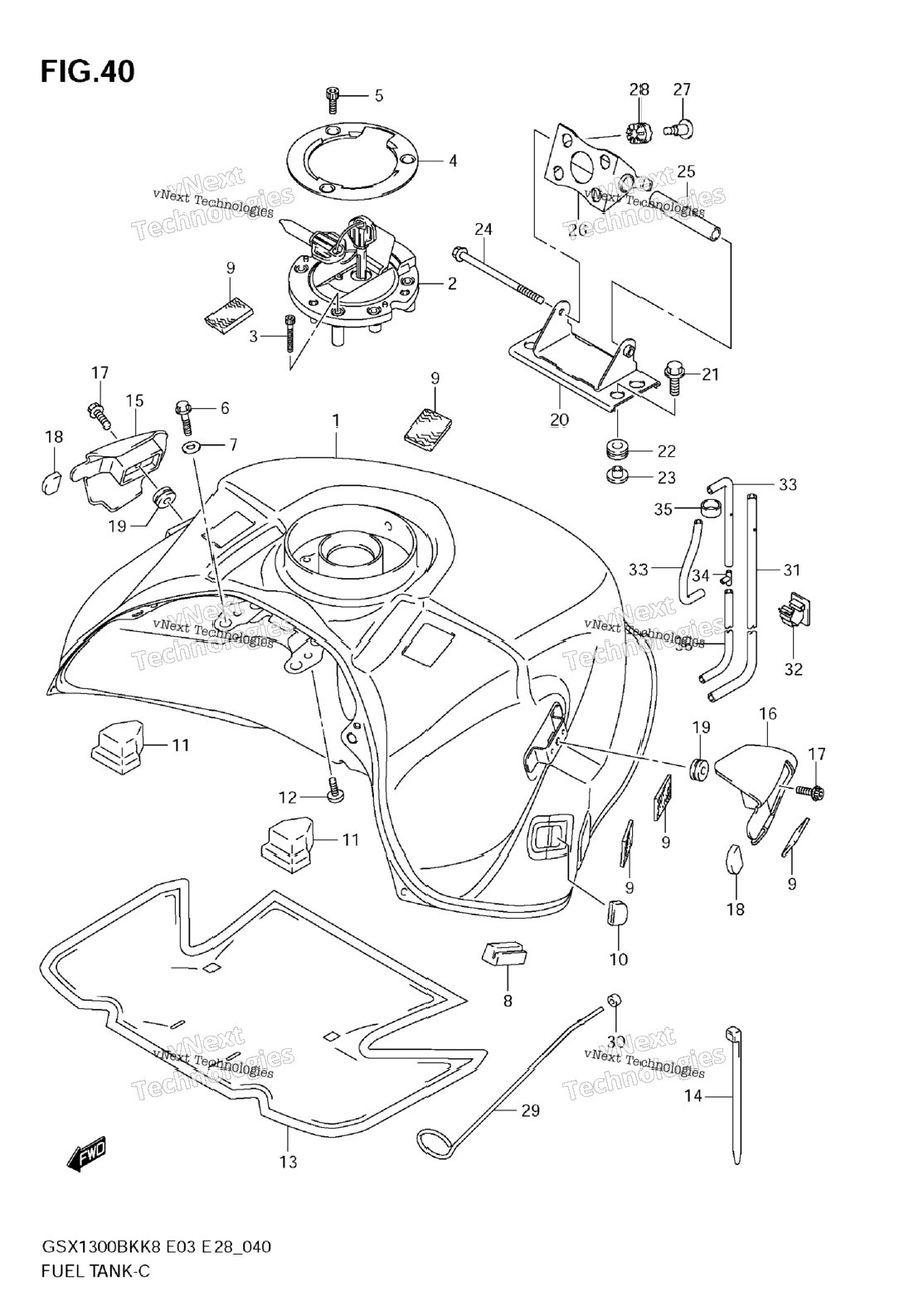

| 1 | 44100-23H20-019 | TANK ASSY, FUEL (BLACK) E33 FOR CRU | 0 шт. | — | |
|
| 1 | 44100-23H00-019 | TANK ASSY, FUEL (BLACK) E3,E28 FOR CRU | 0 шт. | — | |
|
| 1 | 44100-23H20-YHF | TANK ASSY, FUEL (GRAY) E33 FOR ETT | 0 шт. | — | |
|
| 1 | 44100-23H00-YHF | TANK ASSY, FUEL (GRAY) E3,E28 FOR ETT | 0 шт. | — | |
|
| 1 | 44100-23H20-YPA | TANK ASSY, FUEL (WHITE) E33 FOR YPA | 0 шт. | — | |
|
| 1 | 44100-23H00-YPA | TANK ASSY, FUEL (WHITE) FOR YPA | 0 шт. | — | |
|
| 2 | 44200-23850 | CAP SET, FUEL TANK E33 | 1 шт. | — | |
|
| 2 | 44200-23840 | CAP SET, FUEL TANK E3,E28 | 0 шт. | — | |
|
| 3 | 07130-0530B | BOLT, CAP | 0 шт. | — | |
|
| 4 | 44211-23H00 | COVER, FUEL TANK CAP | 1 шт. | — | |
|
| 5 | 09106-05026 | BOLT, COVER | 3 шт. | — | |
|
| 6 | 01550-0630B | BOLT (L:30) | 2 шт. | — | |
|
| 7 | 09160-06136 | WASHER | 2 шт. | — | |
|
| 8 | 44541-23H00 | CUSHION, SIDE | 2 шт. | — | |
|
| 9 | 44572-13G00 | .FASTENER (33X25X2.6) | 8 шт. | — | |
|
| 10 | 44178-23H00 | GUIDE | 4 шт. | — | |
|
| 11 | 44542-23H00 | CUSHION, REAR | 0 шт. | — | |
|
| 13 | 44192-23H00 | SHIELD, HEAT | 0 шт. | — | |
|
| 15 | 44179-23H00 | BRACKET, TANK COVER RH | 1 шт. | — | |
|
| 16 | 44189-23H00 | BRACKET, TANK COVER LH | 1 шт. | — | |
|
| 17 | 09139-06172 | BOLT | 2 шт. | — | |
|
| 17 | 09139-06172 | BOLT | 2 шт. | — | |
|
| 18 | 44183-23H00 | CUSHION, BRACKET | 2 шт. | — | |
|
| 19 | 09329-18001 | CUSHION, SIDE COVER | 2 шт. | — | |
|
| 20 | 44550-23H00 | BRACKET, TANK NO.2 | 0 шт. | — | |
|
| 21 | 09116-06192 | BOLT | 4 шт. | — | |
|
| 22 | 09320-08001 | CUSHION | 4 шт. | — | |
|
| 23 | 09169-06062 | WASHER (6.3X17X1.6) | 4 шт. | — | |
|
| 24 | 07120-0695B | BOLT, JOINT | 1 шт. | — | |
|
| 25 | 44561-18G00 | SPACER, JOINT | 1 шт. | — | |
|
| 26 | 44530-41G00 | BRACKET, TANK NO.1 | 1 шт. | — | |
|
| 27 | 09139-06132 | BOLT | 4 шт. | — | |
|
| 28 | 09320-08071 | CUSHION | 4 шт. | — | |
|
| 29 | 44560-23H00 | STAY, FUEL TANK | 1 шт. | — | |
|
| 30 | 09320-05007 | CUSHION, STAY | 1 шт. | — | |
|
| 31 | 44423-23H00 | HOSE, WATER DRAIN | 0 шт. | — | |
|
| 32 | 09403-14311 | CLAMP | 1 шт. | — | |
|
| 32 | 09403-14311 | CLIP | 1 шт. | — | |
|
| 33 | 44424-38G00 | HOSE, BREATHER NO.1 | 2 шт. | — | |
|
| 34 | 09367-06002 | 3 WAY | 1 шт. | — | |
|
| 35 | 09352-13162-600 | HOSE, JOINT (L:600!10) | 1 шт. | — | |
|
| 36 | 09352-50823-600 | HOSE, BREATHER NO.3 (L:600!500) | 1 шт. | — | |
|
