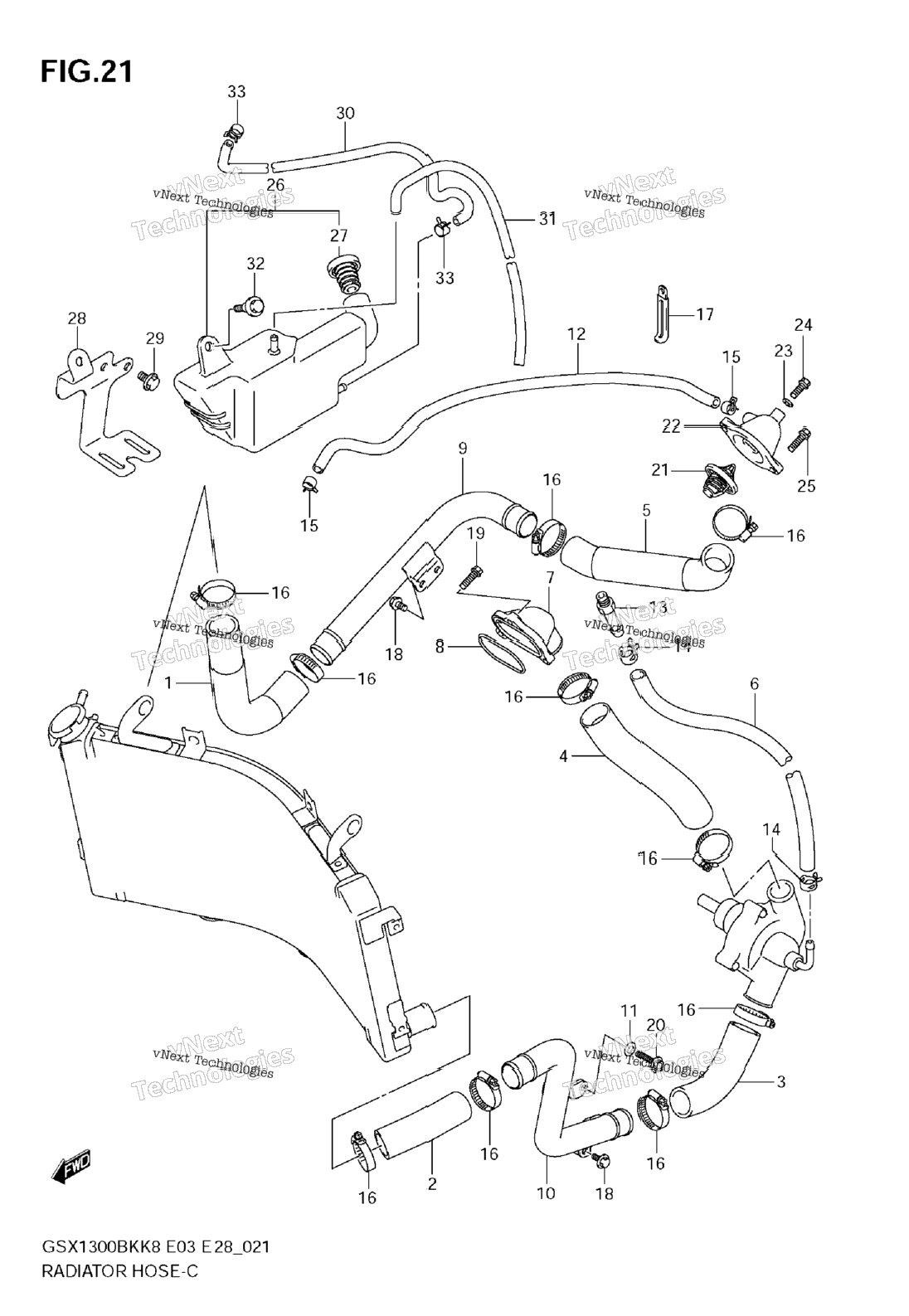

| 1 | 17851-23H00 | HOSE, RADIATOR INLET | 1 шт. | — | |
|
| 2 | 17852-23H00 | HOSE, RADIATOR OUTLET | 1 шт. | — | |
|
| 3 | 17853-23H00 | HOSE, WATER PUMP INLET | 1 шт. | — | |
|
| 4 | 17853-24F00 | HOSE, CYLINDER INLET | 1 шт. | — | |
|
| 5 | 17854-23H00 | HOSE, CYLINDER HEAD OUTLET | 1 шт. | — | |
|
| 6 | 17854-24F00 | HOSE,WATER BYPASS NO.1 | 1 шт. | — | |
|
| 7 | 17861-33E20 | CONNECTOR, CYLINDER WATER | 1 шт. | — | |
|
| 8 | 17863-33E00 | O RING | 1 шт. | — | |
|
| 9 | 17880-23H00 | PIPE, RADIATOR INLET | 1 шт. | — | |
|
| 10 | 17890-23H00 | PIPE, RADIATOR OUTLET | 1 шт. | — | |
|
| 11 | 09160-06109 | WASHER | 1 шт. | — | |
|
| 12 | 09352-50111-600 | HOSE, WATER AIR BLEED | 1 шт. | — | |
|
| 13 | 09362-09011 | UNION, BYPASS | 1 шт. | — | |
|
| 14 | 09401-12409 | CLIP | 2 шт. | — | |
|
| 15 | 09401-10409 | CLIP (ID:10.5,H:8) | 2 шт. | — | |
|
| 16 | 09402-38512 | CLAMP | 10 шт. | — | |
|
| 17 | 09404-06433 | CLAMP | 1 шт. | — | — |
|
| 18 | 01547-0610A | BOLT | 3 шт. | — | |
|
| 19 | 01547-0620A | BOLT | 3 шт. | — | |
|
| 20 | 01547-0625B | BOLT | 1 шт. | — | |
|
| 21 | 17670-15H00 | THERMOSTAT,WATER | 1 шт. | — | |
|
| 22 | 17661-35F00 | COVER, THERMOSTAT | 1 шт. | — | |
|
| 23 | 09168-06026 | GASKET | 1 шт. | — | |
|
| 24 | 17568-50F00 | BOLT | 1 шт. | — | |
|
| 25 | 01547-0620A | BOLT | 2 шт. | — | |
|
| 26 | 17910-23H00 | TANK ASSY, RESERVOIR Includes Item(s) 27 | 0 шт. | — | |
|
| 27 | 17931-02FA0 | .CAP, RESERVOIR TANK | 1 шт. | — | |
|
| 28 | 17920-23H00 | BRACKET | 0 шт. | — | |
|
| 29 | 01550-0612A | BOLT | 2 шт. | — | |
|
| 30 | 17981-35F00 | HOSE, RESERVER TANK INLET | 1 шт. | — | |
|
| 31 | 17982-23H00 | HOSE, RESERVER TANK OVERFLOW | 0 шт. | — | |
|
| 32 | 09111-06085 | BOLT (6X12) | 1 шт. | — | |
|
| 33 | 09401-08411 | CLIP | 2 шт. | — | |
|
