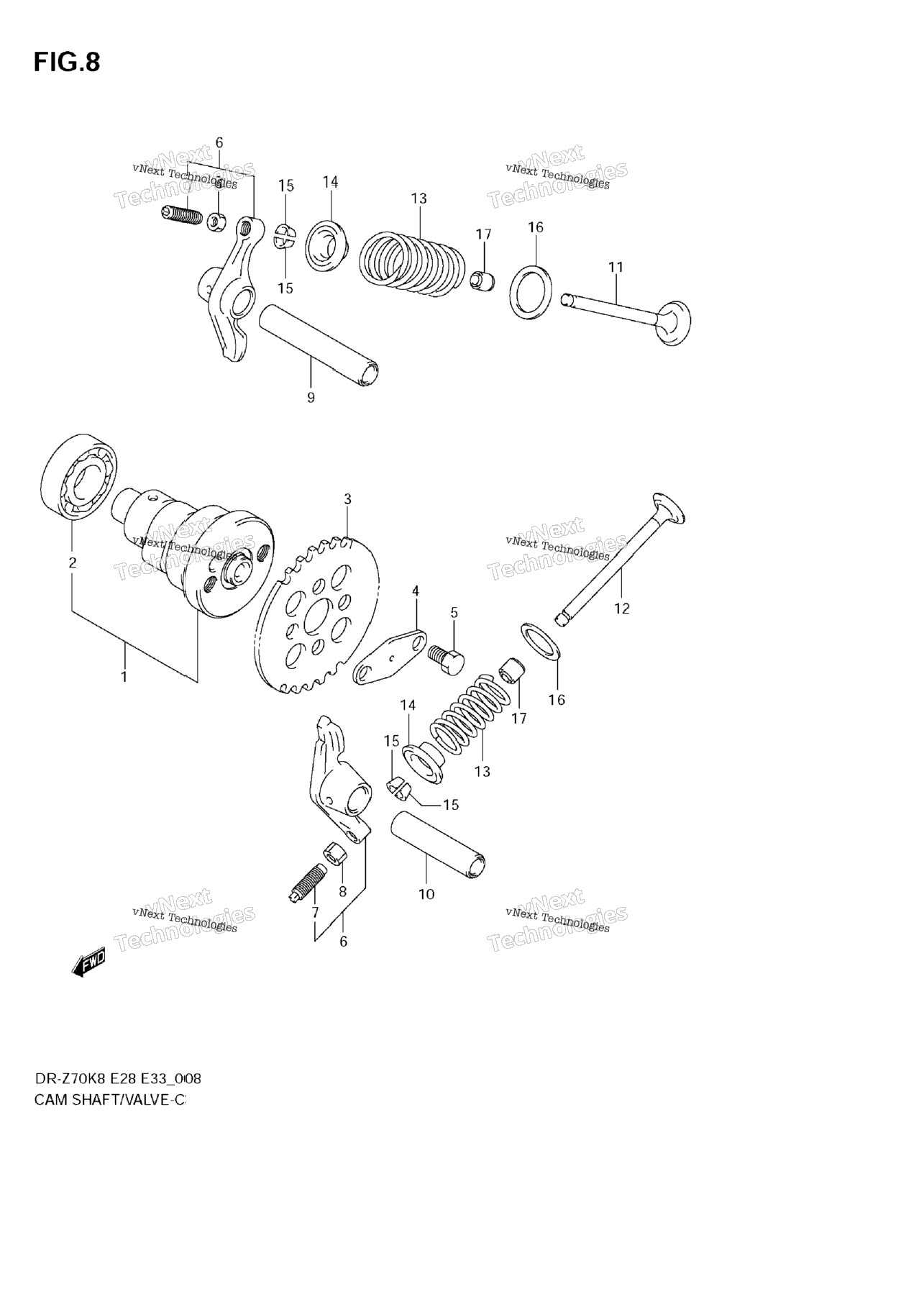

| 1 | 12710-02A10 | CAMSHAFT ASSY Includes Item(s) 2 | 1 шт. | — | |
|
| 2 | 09262-15013 | BEARING | 1 шт. | — | |
|
| 3 | 12741-09405 | SPROCKET, CAMSHAFT | 0 шт. | — | |
|
| 4 | 12714-09401 | WASHER, SPROCKET | 0 шт. | — | |
|
| 5 | 09111-06032 | BOLT | 2 шт. | — | |
|
| 6 | 12840-30A11 | ARM, VALVE LOCKER Includes Item(s) 7 - 8 | 2 шт. | — | |
|
| 7 | 12842-49201 | SCREW | 2 шт. | — | |
|
| 8 | 12843-27A00 | NUT | 2 шт. | — | |
|
| 9 | 12861-09401 | SHAFT, VALVE LOCKER ARM, IN | 0 шт. | — | |
|
| 10 | 12871-09401 | SHAFT, VALVE LOCKER ARM, EX | 0 шт. | — | |
|
| 11 | 12911-09D00 | VALVE, INTAKE | 1 шт. | — | |
|
| 12 | 12912-02A00 | VALVE, EXHAUST | 1 шт. | — | |
|
| 13 | 12921-36G00 | SPRING, VALVE | 0 шт. | — | |
|
| 14 | 12931-09420 | RETAINER, VALVE SPRING | 0 шт. | — | |
|
| 15 | 12932-27A00 | COTTER, VALVE | 4 шт. | — | |
|
| 16 | 12934-09400 | SEAT, SPRING | 0 шт. | — | |
|
| 17 | 09289-05008 | SEAL,OIL (5X10.5X8.4) | 2 шт. | — | |
|
