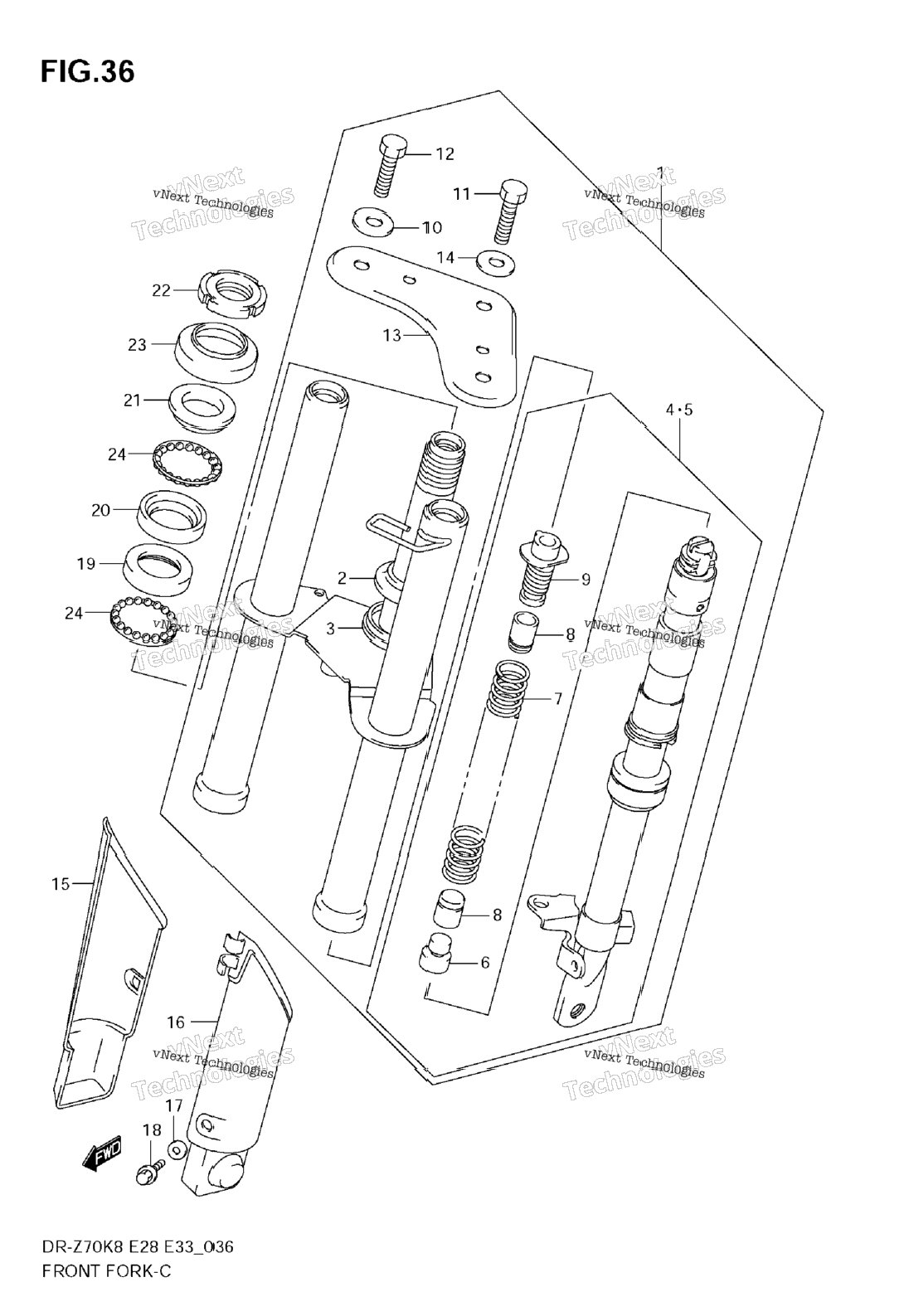

| 1 | 51100-14821 | FORK SET, FRONT Includes Item(s) 2 - 14 | 1 шт. | — | |
|
| 2 | 51622-14H00 | RACE, STEERING OUTER | 0 шт. | — | |
|
| 3 | 51644-14H00 | SEAL, STEERING LOWER | 1 шт. | — | |
|
| 4 | 51110-14H00 | TUBE ASSY, FRONT FORK LOWER, R | 1 шт. | — | |
|
| 5 | 51120-14H00 | TUBE ASSY, FRONT FORK LOWER, L | 1 шт. | — | |
|
| 6 | 51116-14H00 | STOPPER | 2 шт. | — | |
|
| 7 | 51171-14H00 | SPRING | 2 шт. | — | |
|
| 8 | 51292-14H00 | STOPPER RUBBER | 4 шт. | — | |
|
| 9 | 51422-14H00 | SPRING, JOINT B | 0 шт. | — | |
|
| 10 | 09160-10144 | WASHER, FR FORK UPPER B | 2 шт. | — | |
|
| 12 | 01550-1035A | BOLT, FR FORK UPPER | 1 шт. | — | |
|
| 12 | 01550-1035A | BOLT, FR FORK UPPER | 2 шт. | — | |
|
| 13 | 51310-14H00 | BRACKET, UPPER | 1 шт. | — | |
|
| 14 | 09160-10033 | .WASHER (10.5X25X3) | 1 шт. | — | |
|
| 15 | 51501-14H00 | PROTECTOR, FRONT FORK, R | 1 шт. | — | |
|
| 16 | 51511-14H00 | PROTECTOR, FRONT FORK, L | 1 шт. | — | |
|
| 17 | 09169-06071 | WASHER, FRONT FORK PROTECTOR | 4 шт. | — | |
|
| 18 | 01547-0612A | BOLT, FRONT FORK PROTECTOR | 4 шт. | — | |
|
| 19 | 51611-14H00 | RACE, STEERING INNER | 1 шт. | — | |
|
| 20 | 51611-20002 | RACE, STEERING INNER | 1 шт. | — | |
|
| 21 | 51621-28000 | RACE, STEERING OUTER | 1 шт. | — | |
|
| 22 | 51631-28000 | NUT, STEERING STEM | 1 шт. | — | |
|
| 23 | 51643-25001 | SEAL, STEERING UPPER | 1 шт. | — | |
|
| 24 | 09269-27001 | BEARING, STEERING | 2 шт. | — | |
|
