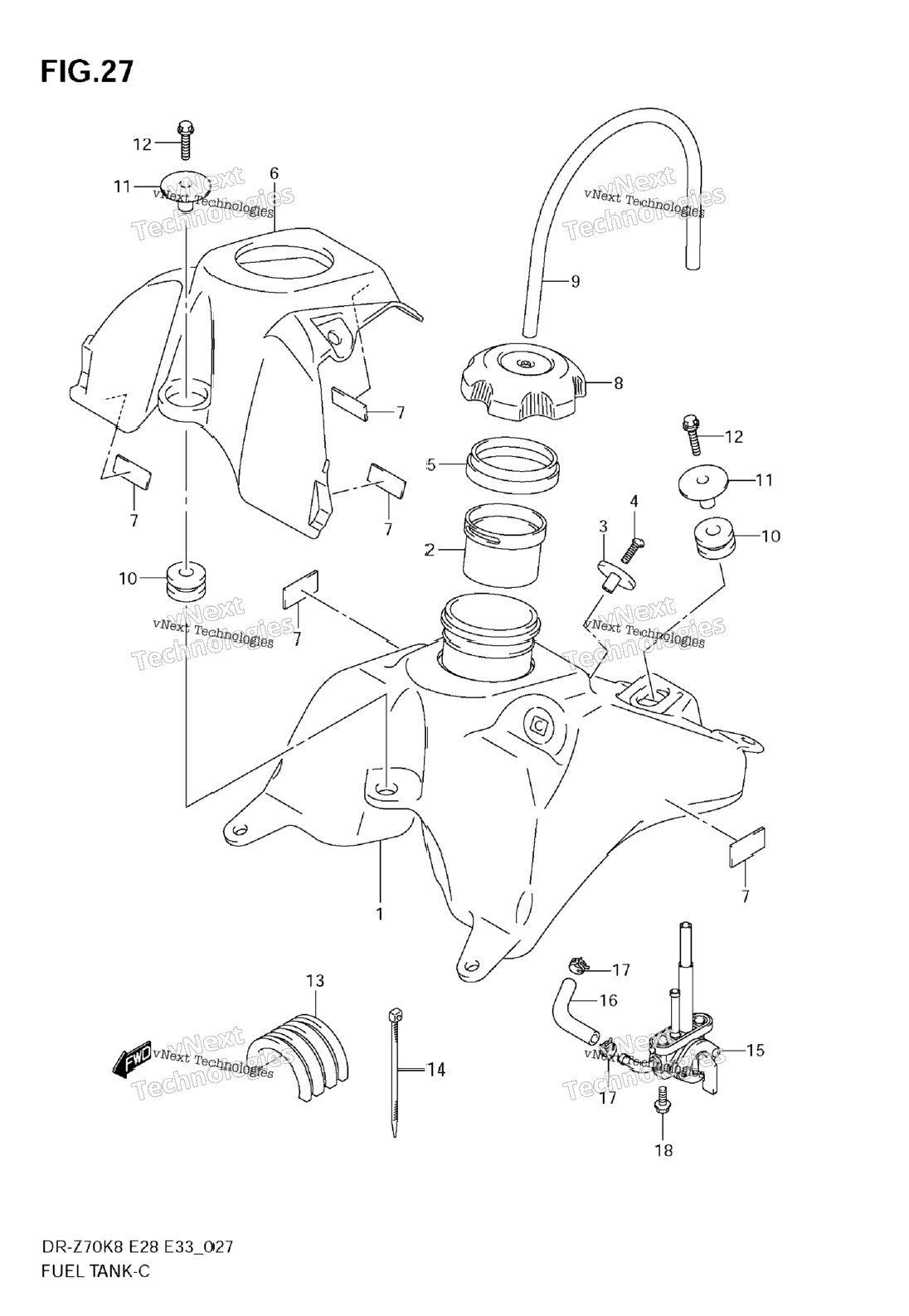

| 1 | 44100-14H00 | TANK ASSY, FUEL Includes Item(s) 2 - 4 | 0 шт. | — | |
|
| 2 | 44199-19A00 | TUBE FILLER, INLET | 1 шт. | — | |
|
| 3 | 44132-27C01 | HOOK,SEAT FRONT | 1 шт. | — | |
|
| 4 | 09139-06148 | SCREW | 1 шт. | — | |
|
| 5 | 44261-14H00 | RUBBER, FUEL INLET | 1 шт. | — | |
|
| 6 | 44291-14H00 | COVER, FUEL TANK | 1 шт. | — | |
|
| 7 | 44294-14H00 | CUSHION | 5 шт. | — | |
|
| 8 | 44200-29F00 | CAP ASSY, FUEL TANK | 1 шт. | — | |
|
| 9 | 09352-50823-600 | HOSE, BREATHER (L:600!360) | 1 шт. | — | |
|
| 10 | 44511-10G10 | CUSHION | 0 шт. | — | |
|
| 11 | 44512-10G00 | WASHER,FUEL TANK | 0 шт. | — | |
|
| 12 | 01547-0625A | BOLT | 2 шт. | — | |
|
| 13 | 44541-13E10 | CUSHION, FUEL TANK | 1 шт. | — | |
|
| 14 | 09407-30402 | CLAMP | 1 шт. | — | |
|
| 15 | 44300-14H00 | COCK ASSY, FUEL | 1 шт. | — | |
|
| 16 | 44421-14H00 | HOSE, FUEL | 0 шт. | — | |
|
| 17 | 09401-09403 | CLIP | 2 шт. | — | |
|
| 18 | 01547-0616B | BOLT | 2 шт. | — | |
|
