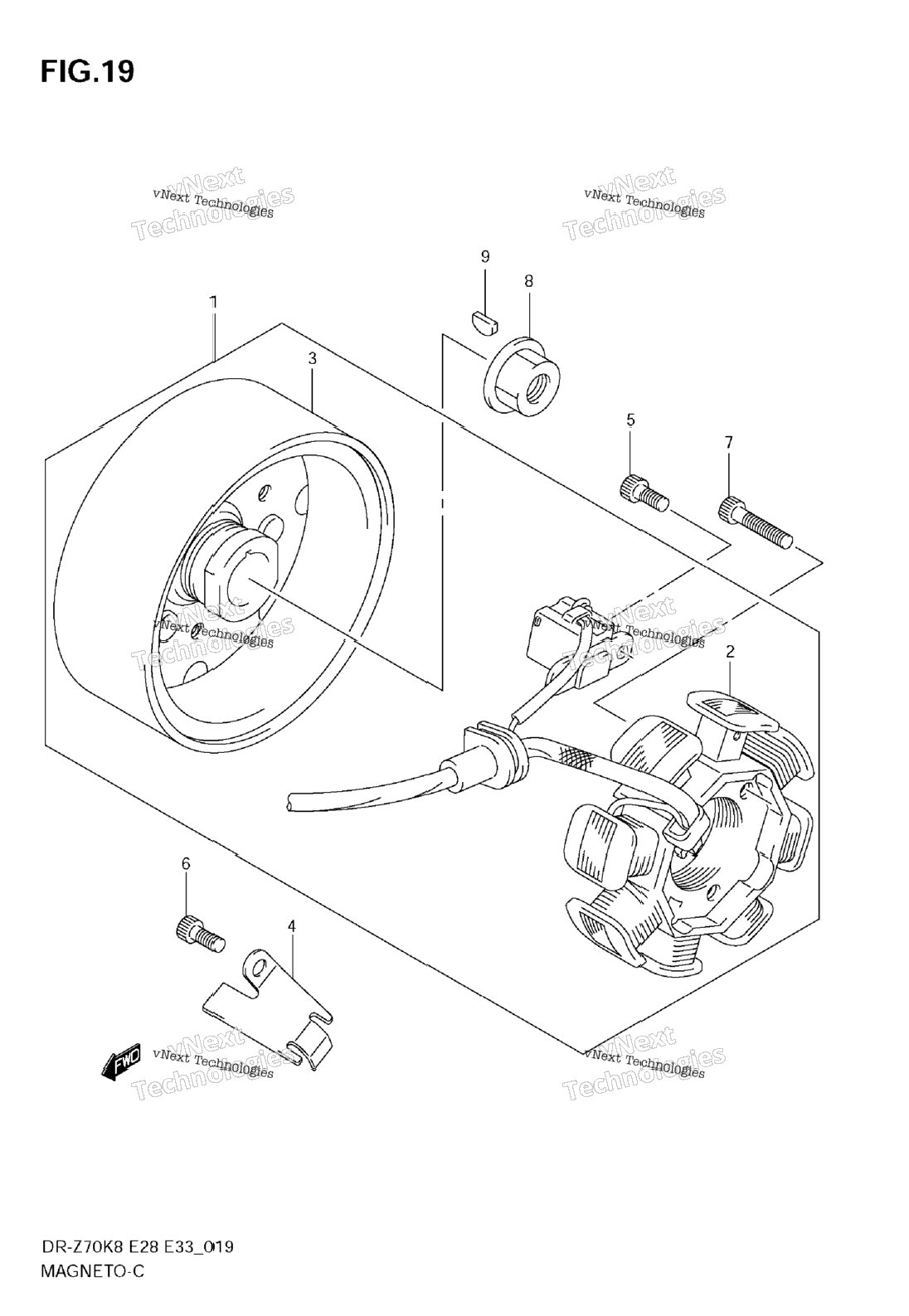

| 1 | 32100-14H00 | MAGNETO ASSY Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 32101-14H00 | STATOR ASSY, MAGNETO | 1 шт. | — | |
|
| 3 | 32102-14H00 | ROTOR ASSY, MAGNETO | 0 шт. | — | |
|
| 4 | 32371-30D00 | CLAMP, MAGNETO LEAD WIRE | 0 шт. | — | |
|
| 5 | 07130-0512A | SCREW, PULSER COIL | 2 шт. | — | |
|
| 6 | 07130-0612A | BOLT, MAGNETO LEAD CLAMP | 1 шт. | — | |
|
| 7 | 07130-0620A | BOLT, MAGNETO STATOR | 2 шт. | — | |
|
| 8 | 08316-1010A | NUT, MAGNETO ROTOR | 1 шт. | — | |
|
| 9 | 08341-31039 | KEY, MAGNETO | 1 шт. | — | |
|
