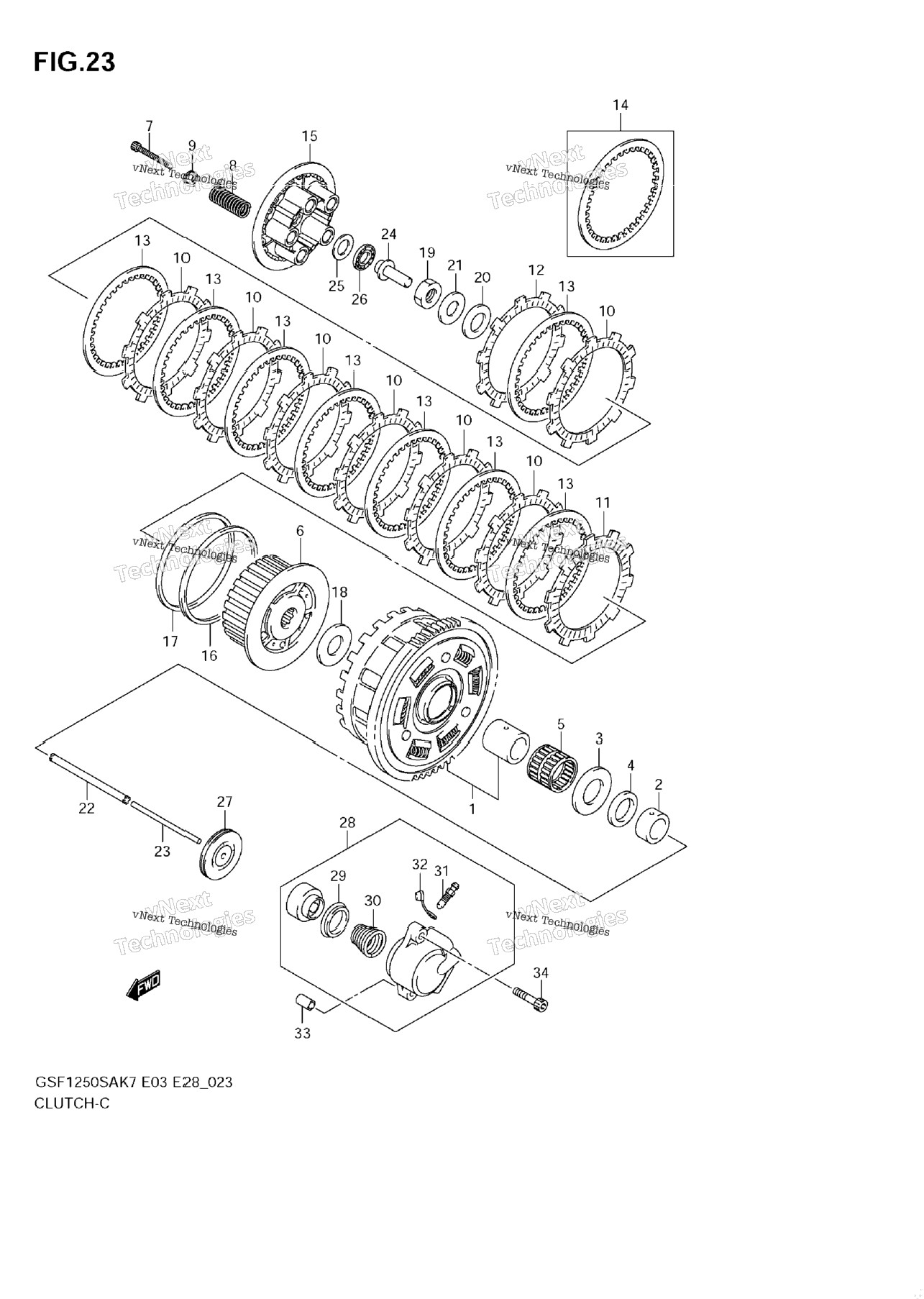

| 1 | 21200-18810 | GEAR ASSY, PRIMARY DRIVEN NT:72 | 1 шт. | — | |
|
| 2 | 21253-01H00 | SPACER, OIL PUMP DRIVE | 1 шт. | — | |
|
| 3 | 09160-25073 | WASHER (25X54X2.4) | 1 шт. | — | |
|
| 4 | 09160-25036 | WASHER (25X30X3) | 0 шт. | — | |
|
| 5 | 09263-35015 | BEARING (35X40X26.8) | 1 шт. | — | |
|
| 6 | 21410-18H00 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 7 | 21412-18H00 | BOLT, CLUTCH SPRING | 0 шт. | — | |
|
| 8 | 21413-18H00 | SPRING, CLUTCH | 0 шт. | — | |
|
| 9 | 21414-29F00 | WASHER, CLUTCH SPRING | 5 шт. | — | |
|
| 10 | 21441-24F40 | PLATE, CLUTCH DRIVE NO.1 | 7 шт. | — | |
|
| 11 | 21442-24F00 | PLATE, CLUTCH DRIVE NO.2 | 1 шт. | — | |
|
| 12 | 21441-24F10 | PLATE, CLUTCH DRIVE NO.3 | 1 шт. | — | |
|
| 13 | 21451-24F00 | PLATE,CLUTCH DRIVEN NO.1 (T:2 T:2.0 | 8 шт. | — | |
|
| 14 | 21451-24F10 | PLATE, CLUTCH DRIVEN NO.2 OPT,T:2.3 | 1 шт. | — | |
|
| 15 | 21462-18H00 | DISK, CLUTCH PRESSURE | 1 шт. | — | |
|
| 16 | 21471-24F00 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 17 | 21472-24F00 | WASHER, CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 18 | 09160-25056 | WASHER, CLUTCH SLEEVE 25X50X2.5 | 1 шт. | — | |
|
| 19 | 09159-24010 | NUT, CLUTCH SLEEVE HUB | 1 шт. | — | |
|
| 20 | 09181-25223 | WASHER, CLUTCH SLEEVE NUT 25X38X1 | 1 шт. | — | |
|
| 21 | 09164-24006 | WASHER, CLUTCH WAVE 24.2X35X2 | 1 шт. | — | |
|
| 22 | 23110-18H00 | ROD, CLUTCH PUSH RH L:169 | 0 шт. | — | |
|
| 23 | 23111-42F00 | ROD, CLUTCH PUSH LH L:138 | 1 шт. | — | |
|
| 24 | 23121-31E20 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 25 | 09160-15045 | WASHER, CLUTCH PUSH 15.5X28X1 | 1 шт. | — | |
|
| 26 | 09263-15003 | BEARING, CLUTCH PUSH 15X28X2 | 1 шт. | — | |
|
| 27 | 09283-06011 | SEAL, CLUTCH PUSH ROD 6X34X5.5 | 1 шт. | — | |
|
| 28 | 23160-18H00 | CYLINDER, CLUTCH RELEASE Includes Item(s) 29 - 32 | 1 шт. | — | |
|
| 29 | 23163-05A00 | CUP | 1 шт. | — | |
|
| 30 | 23164-05A00 | SPRING | 1 шт. | — | |
|
| 31 | 59121-01A00 | BLEEDER | 1 шт. | — | |
|
| 32 | 59122-01A00 | CAP, BLEEDER | 1 шт. | — | |
|
| 33 | 04211-09129 | KNOCK PIN | 2 шт. | — | |
|
| 34 | 09103-06251 | BOLT (6X30) | 2 шт. | — | |
|
