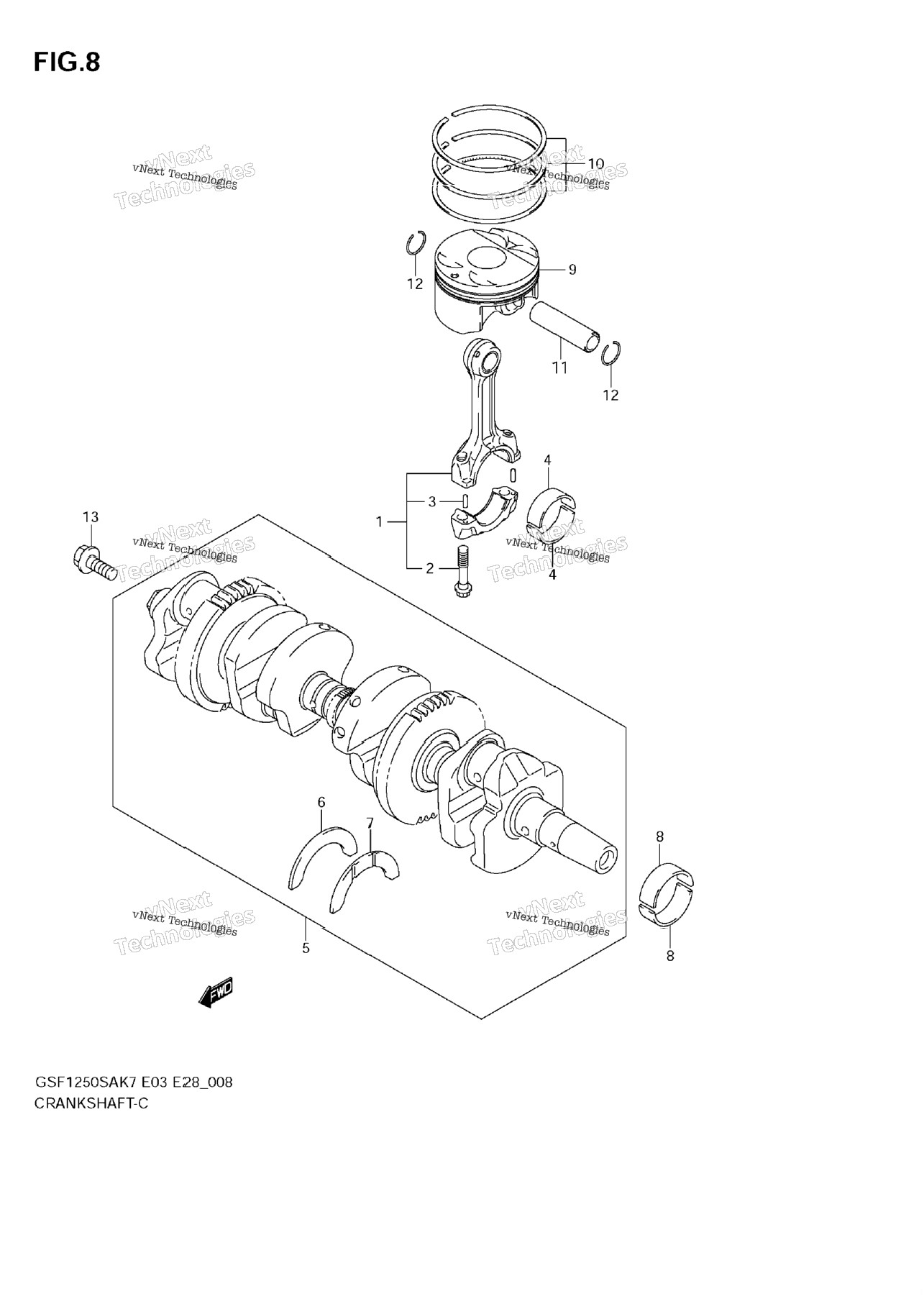

| 1 | 12160-18H00 | ROD ASSY, CONNECTING Includes Item(s) 2 - 3 | 4 шт. | — | |
|
| 2 | 12163-24F10 | BOLT | 8 шт. | — | |
|
| 3 | 04221-04089 | .PIN | 8 шт. | — | |
|
| 4 | 12164-46E01-0B0 | BEARING, CRANK PIN (BLACK) | 8 шт. | — | |
|
| 4 | 12164-46E01-0C0 | BEARING, CRANK PIN (BROWN) | 8 шт. | — | |
|
| 4 | 12164-46E01-0A0 | BEARING, CRANK PIN (GREEN) | 8 шт. | — | |
|
| 4 | 12164-46E01-0D0 | BEARING, CRANK PIN (YELLOW) | 8 шт. | — | |
|
| 5 | 12000-18820 | CRANKSHAFT SET Includes Item(s) 6 - 7 | 0 шт. | — | |
|
| 7 | 12228-17E00-0B0 | BEARING, THRUST LH (BLACK) | 1 шт. | — | |
|
| 7 | 12228-17E00-0C0 | BEARING, THRUST LH (BLUE) | 1 шт. | — | |
|
| 7 | 12228-17E00-0D0 | BEARING, THRUST LH (GREEN) | 1 шт. | — | |
|
| 7 | 12228-17E00-0A0 | BEARING, THRUST LH (RED) | 1 шт. | — | |
|
| 7 | 12228-17E00-0F0 | BEARING, THRUST LH (WHITE) | 1 шт. | — | |
|
| 7 | 12228-17E00-0E0 | BEARING, THRUST LH (YELLOW) | 1 шт. | — | |
|
| 7 | 12228-17E00-0D0 | BEARING, THRUST RH (GREEN) | 1 шт. | — | |
|
| 8 | 12229-34E00-0B0 | BEARING, CRANKSHAFT (BLACK) | 12 шт. | — | |
|
| 8 | 12229-34E00-0C0 | BEARING, CRANKSHAFT (BROWN) | 0 шт. | — | |
|
| 8 | 12229-34E00-0A0 | BEARING, CRANKSHAFT (GREEN) | 0 шт. | — | |
|
| 8 | 12229-34E00-0D0 | BEARING, CRANKSHAFT (YELLOW) | 12 шт. | — | |
|
| 9 | 12111-18H00-0F0 | PISTON | 0 шт. | — | |
|
| 10 | 12140-18H00 | RING SET, PISTON | 0 шт. | — | |
|
| 11 | 12151-07D00 | PIN, PISTON | 4 шт. | — | |
|
| 12 | 09381-18003 | CIRCLIP | 8 шт. | — | |
|
| 13 | 01550-1016A | BOLT | 1 шт. | — | |
|
