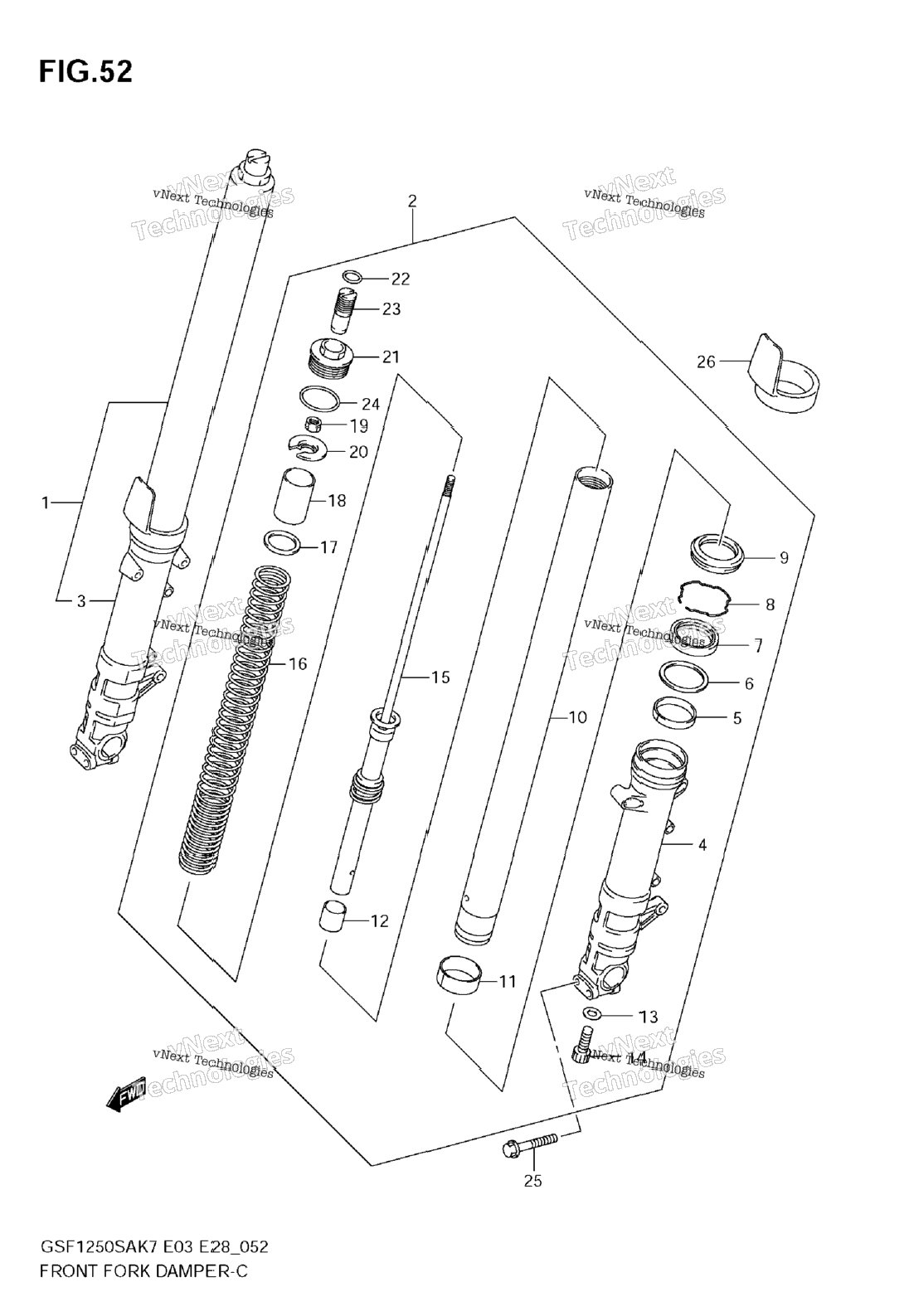

| 1 | 51103-49GA0 | DAMPER ASSY, FRONT FORK RH (BLACK) | 1 шт. | — | |
|
| 1 | 51103-49G80 | DAMPER ASSY, FRONT FORK RH (SILVER) | 0 шт. | — | |
|
| 2 | 51104-49GA0 | DAMPER ASSY, FRONT FORK LH (BLACK) Includes Item(s) 3 - 24 | 0 шт. | — | |
|
| 2 | 51104-49G80 | DAMPER ASSY, FRONT FORK LH (SILVER) | 0 шт. | — | |
|
| 3 | 51131-49G90 | TUBE, OUTER RH (BLACK) | 0 шт. | — | |
|
| 3 | 51131-49G70 | TUBE, OUTER RH (SILVER) | 0 шт. | — | |
|
| 4 | 51141-49G90 | TUBE, OUTER LH (BLACK) | 0 шт. | — | |
|
| 4 | 51141-49G70 | TUBE, OUTER LH (SILVER) | 0 шт. | — | |
|
| 5 | 51152-03F00 | BUSH, GUIDE | 2 шт. | — | |
|
| 6 | 51168-17C00 | SPACER, SEAL | 2 шт. | — | |
|
| 7 | 51153-27G00 | SEAL, OIL | 2 шт. | — | |
|
| 8 | 51556-38B00 | RING, STOPPER | 2 шт. | — | |
|
| 9 | 51173-27G00 | SEAL, DUST | 2 шт. | — | |
|
| 10 | 51110-49G00 | TUBE, INNER | 0 шт. | — | |
|
| 11 | 51121-13E00 | BUSH, SLIDE | 2 шт. | — | |
|
| 12 | 51195-31E00 | PIECE, OIL LOCK | 2 шт. | — | |
|
| 13 | 51148-36011 | GASKET | 2 шт. | — | |
|
| 14 | 51147-48130 | BOLT | 2 шт. | — | |
|
| 15 | 52110-49G80 | ROD, DAMPER | 0 шт. | — | |
|
| 16 | 51171-49G70 | SPRING, FRONT | 0 шт. | — | |
|
| 17 | 51186-17C00 | .SEAT, SPRING LWR | 2 шт. | — | |
|
| 18 | 51176-12C10 | COLLAR, SPRING | 2 шт. | — | |
|
| 19 | 51827-27E00 | .NUT | 0 шт. | — | |
|
| 20 | 51172-17C00 | SEAT, SPRING UPPER | 2 шт. | — | |
|
| 21 | 51189-14D00 | BOLT, FORK | 0 шт. | — | |
|
| 22 | 09280-14011 | O RING | 2 шт. | — | |
|
| 23 | 51185-31E00 | ADJUSTER, SPRING | 0 шт. | — | |
|
| 24 | 51117-17C00 | O RING | 2 шт. | — | |
|
| 25 | 51166-03FK0 | BOLT | 0 шт. | — | |
|
| 26 | 51201-32F00 | PROTECTOR | 2 шт. | — | |
|
