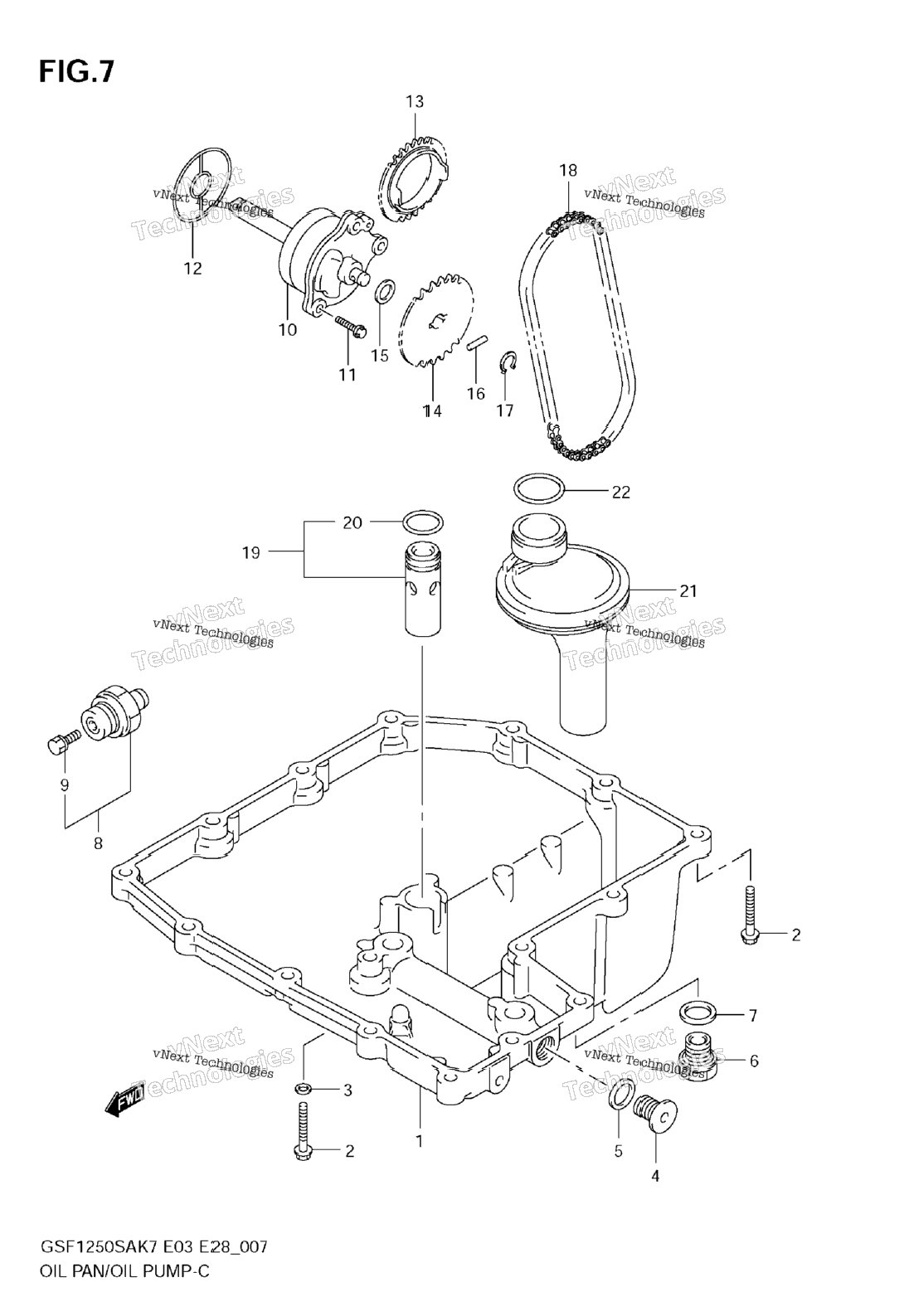

| 1 | 11511-18H00 | PAN, OIL | 0 шт. | — | |
|
| 2 | 01547-0625A | BOLT | 16 шт. | — | |
|
| 3 | 09168-06023 | GASKET (5.8X13X1.2) | 1 шт. | — | |
|
| 4 | 09248-12004 | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 5 | 09168-12002 | GASKET (12.1X16.2X1.2) | 1 шт. | — | |
|
| 6 | 09247-14036 | PLUG, OIL DRAIN | 1 шт. | — | |
|
| 7 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 8 | 37820-33D10 | SWITCH, OIL PRESSURE Includes Item(s) 9 | 1 шт. | — | |
|
| 9 | 37822-33D00 | .BOLT,OIL PRESSURE SWITCH | 1 шт. | — | |
|
| 10 | 16400-18H00 | PUMP ASSY, OIL | 0 шт. | — | |
|
| 11 | 01547-0620A | BOLT | 3 шт. | — | |
|
| 12 | 16491-33E00 | O-RING | 1 шт. | — | |
|
| 13 | 16321-01H00 | SPROCKET, DRIVE | 1 шт. | — | |
|
| 14 | 16331-18H00 | SPROCKET, DRIVEN | 0 шт. | — | |
|
| 15 | 09181-10158 | WASHER | 1 шт. | — | |
|
| 16 | 09261-04009 | PIN | 1 шт. | — | |
|
| 17 | 08331-31109 | CIRCLIP | 1 шт. | — | |
|
| 18 | 16310-18H00 | CHAIN, OIL PUMP DRIVE | 0 шт. | — | |
|
| 19 | 16440-24F00 | VALVE ASSY, OIL RELIEF Includes Item(s) 20 | 1 шт. | — | |
|
| 20 | 09280-13004 | .O-RING (D:1.9,ID:13) | 1 шт. | — | |
|
| 21 | 16520-18H00 | STRAINER, ENGINE OIL | 1 шт. | — | |
|
| 22 | 09280-25004 | O RING (D:2.4,ID:24.7) | 1 шт. | — | |
|
