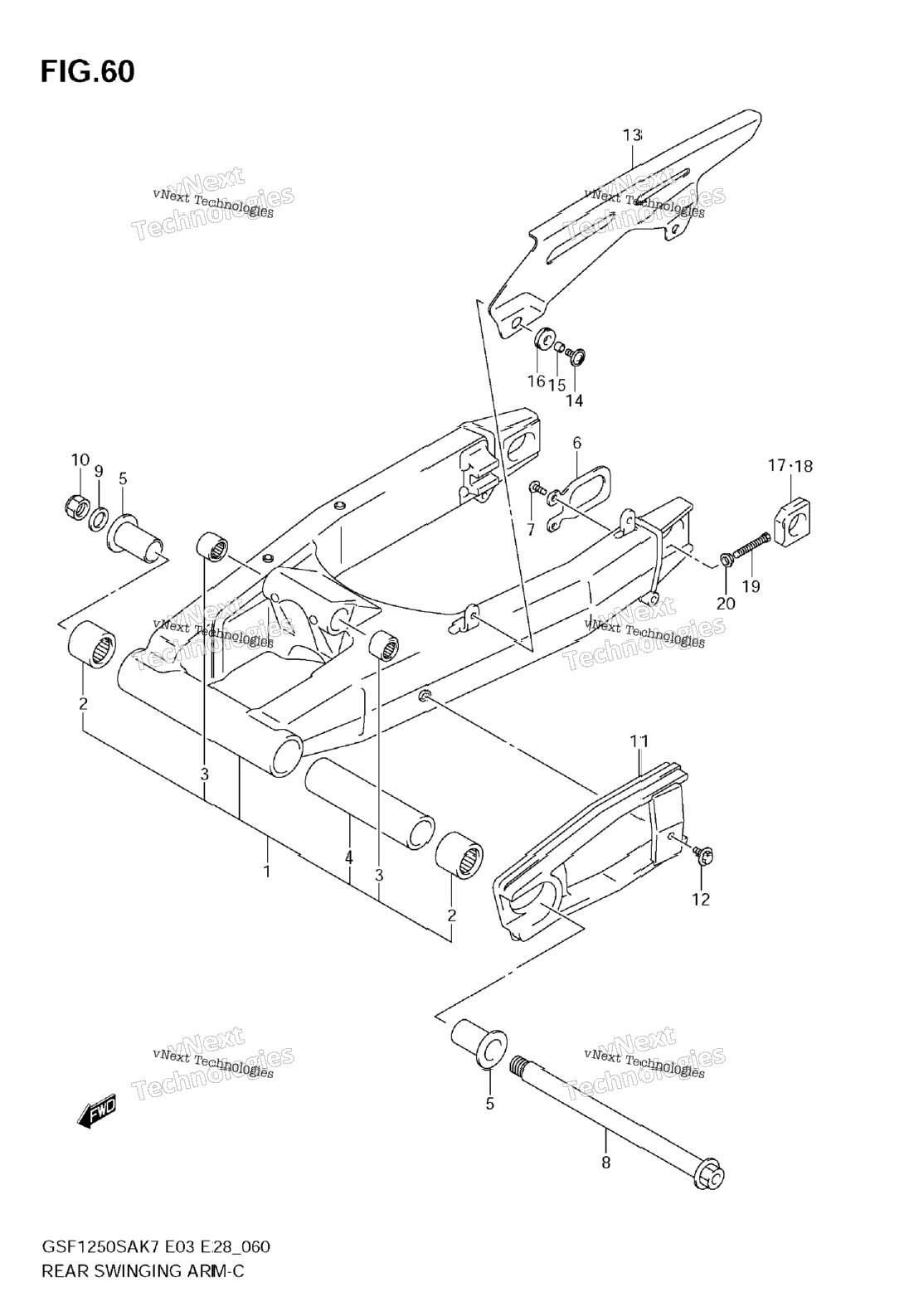

| 1 | 61000-49G10-YAP | SWINGING ARM ASSY, REAR FOR YAY,YHL,YKZ,YMK | 0 шт. | — | |
|
| 2 | 61000-49G00 | SWINGING ARM ASSY, REAR MODEL K7 FOR YLE MODEL K8/K9 FOR YBA,YHG; Includes Item(s) 2 - 4 | 0 шт. | — | |
|
| 3 | 09263-25059 | BEARING, PIVOT (25X33X35) | 2 шт. | — | |
|
| 4 | 09263-17037 | BEARING, ROD (17X24X25) | 2 шт. | — | |
|
| 5 | 61282-31E00 | SPACER | 0 шт. | — | |
|
| 6 | 61251-31E00 | SPACER, PIVOT BEARING | 2 шт. | — | |
|
| 7 | 61124-33E00 | PLATE,RR SWING ARM BRKT | 1 шт. | — | |
|
| 8 | 02142-0616B | .SCREW | 1 шт. | — | |
|
| 9 | 61211-31E00 | SHAFT,RR SWINGINGARM PIVOT | 1 шт. | — | |
|
| 10 | 09160-18030 | WASHER | 1 шт. | — | |
|
| 11 | 09159-18007 | NUT | 1 шт. | — | |
|
| 12 | 61273-49G10 | BUFFER, CHAIN TOUCH DEFENSE | 0 шт. | — | |
|
| 13 | 09111-06072 | SCREW, CHAIN BUFFER | 1 шт. | — | |
|
| 14 | 61311-27E20 | CASE, CHAIN | 1 шт. | — | |
|
| 15 | 09136-06017 | SCREW | 2 шт. | — | |
|
| 16 | 09180-06092 | SPACER, CHAIN CASE | 2 шт. | — | |
|
| 17 | 09320-08013 | CUSHION, CHAIN CASE | 2 шт. | — | |
|
| 18 | 61445-40F20 | ADJUSTER, CHAIN, R | 1 шт. | — | |
|
| 19 | 61446-40F10 | ADJUSTER, CHAIN, L | 1 шт. | — | |
|
| 20 | 09100-08287 | BOLT | 2 шт. | — | |
|
| 21 | 08316-1008B | .NUT | 2 шт. | — | |
|
