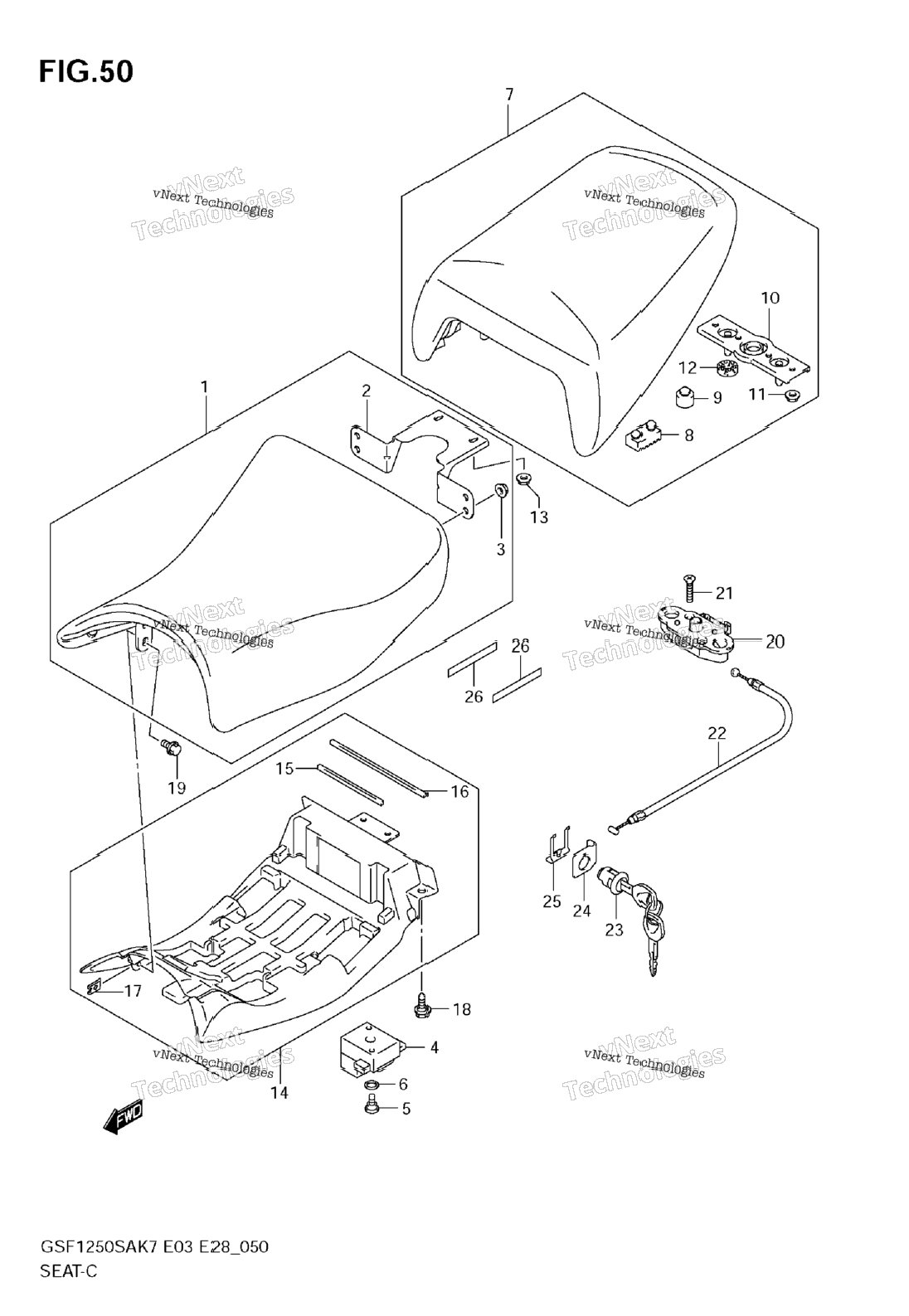

| 1 | 45100-38G11-DKD | SEAT ASSY Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 45115-38G00 | BRACKET | 0 шт. | — | |
|
| 3 | 08319-3106A | NUT | 2 шт. | — | |
|
| 4 | 45149-38G00 | CUSHION | 4 шт. | — | |
|
| 5 | 09139-06133 | SCREW, SEAT CUSHION | 4 шт. | — | |
|
| 6 | 09160-10121 | WASHER, SEAT CUSHION | 4 шт. | — | |
|
| 7 | 45300-38G10-W05 | SEAT ASSY, PILLION Includes Item(s) 8 - 12 | 1 шт. | — | |
|
| 8 | 45149-42F00 | CUSHION, FRONT | 2 шт. | — | |
|
| 9 | 09321-10011 | CUSHION | 2 шт. | — | |
|
| 10 | 45290-42F01 | STRIKER | 1 шт. | — | |
|
| 11 | 09148-06018 | NUT | 2 шт. | — | |
|
| 12 | 45213-31300 | CUSHION | 2 шт. | — | |
|
| 13 | 08319-3106B | NUT | 2 шт. | — | |
|
| 14 | 45410-38G03-291 | COVER, SEAT LOWER Includes Item(s) 15 - 17 | 1 шт. | — | |
|
| 15 | 45412-38G00 | CUSHION, SEAT LOWER COVER FR | 0 шт. | — | |
|
| 16 | 45413-38G00 | CUSHION, SEAT LOWER COVER RR | 0 шт. | — | |
|
| 17 | 09148-06018 | NUT | 2 шт. | — | |
|
| 18 | 09111-06066 | SCREW, SEAT LOWER COVER | 2 шт. | — | |
|
| 19 | 01550-0612B | BOLT, SEAT LOWER COVER FR | 2 шт. | — | |
|
| 20 | 45220-20A01 | BRACKET, SEAT SUPPORT | 1 шт. | — | |
|
| 21 | 02122-0630B | SCREW | 2 шт. | — | |
|
| 22 | 45280-33400 | CABLE, SEAT LOCK | 0 шт. | — | |
|
| 23 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 24 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
| 25 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 26 | 45414-38G00 | TAPE,SEAT LOWER COVER | 0 шт. | — | |
|
