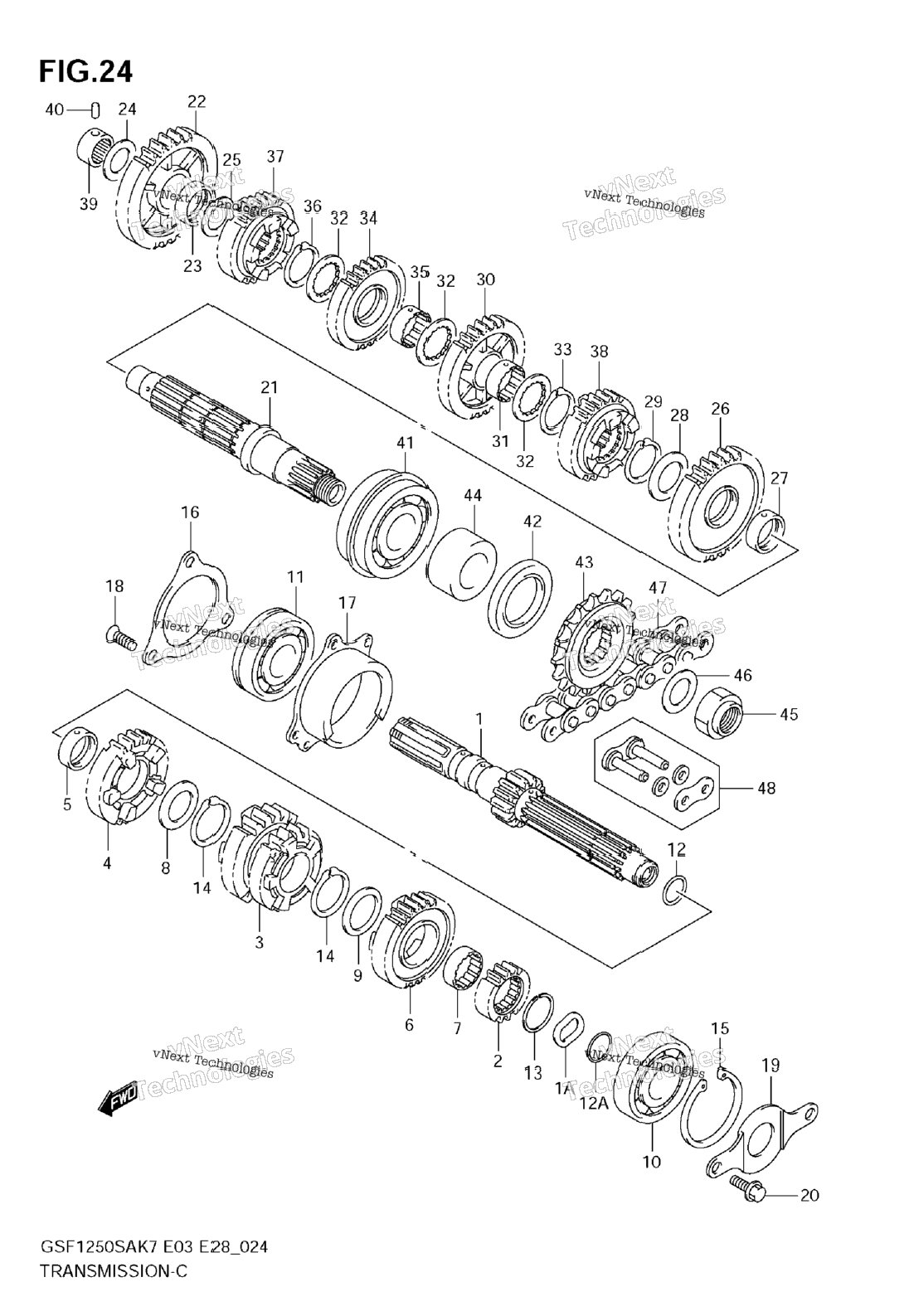

| 1 | 24120-18H00 | SHAFT, COUNTER (NT:13) | 0 шт. | — | |
|
| 2 | 24127-18H00 | WASHER, CNTR | 1 шт. | — | |
|
| 3 | 24221-18H00 | GEAR, 2ND DRIVE (NT:17) | 0 шт. | — | |
|
| 4 | 24231-18H00 | GEAR, 3RD & 4TH DRIVE NT:20/23 | 0 шт. | — | |
|
| 5 | 24251-18H00 | GEAR, 5TH DRIVE (NT:25) | 0 шт. | — | |
|
| 6 | 24252-35F00 | BUSH, 5TH DRIVE GEAR | 1 шт. | — | |
|
| 7 | 24261-18H00 | GEAR, 6TH DRIVE (NT:28) | 0 шт. | — | |
|
| 8 | 24262-35F00 | BUSH, 6TH DRIVE | 1 шт. | — | |
|
| 9 | 09160-27008 | WASHER, 5TH DRIVE 27X36X1.0 | 1 шт. | — | |
|
| 10 | 09167-27001 | WASHER,LOCK (27X36X1) | 1 шт. | — | |
|
| 11 | 09262-20080 | BEARING, CNTR, L 20X52X15 | 1 шт. | — | |
|
| 12 | 09262-25073 | BEARING, CNTR, R 25X62X17 | 1 шт. | — | |
|
| 13 | 09280-17004 | O RING, CNTR SHAFT D:1.9,ID:16.6 | 1 шт. | — | |
|
| 14 | 09280-20001 | O RING, CNTR SHAFT D:1.0,ID:19.5 | 1 шт. | — | |
|
| 15 | 09380-27004 | CIRCLIP, 2ND DRIVE | 1 шт. | — | |
|
| 16 | 09380-27006 | CIRCLIP, 5TH/6TH | 2 шт. | — | |
|
| 17 | 08331-4152A | CIRCLIP, CNTR, L | 1 шт. | — | |
|
| 18 | 24751-18H00 | RETAINER,CNTR SHAFT BEARING,R | 0 шт. | — | |
|
| 19 | 24771-18H00 | HOUSING, CNTR SHAFT, R | 0 шт. | — | |
|
| 20 | 09139-06159 | SCREW, HOUSING (6X20) | 3 шт. | — | |
|
| 21 | 24741-18H00 | RETAINER, CL PUSH ROD | 1 шт. | — | |
|
| 22 | 09103-06236 | SCREW, PUSH (6X12) | 2 шт. | — | |
|
| 23 | 24131-18H10 | SHAFT, DRIVE | 0 шт. | — | |
|
| 24 | 24311-18H00 | GEAR, 1ST DRIVEN (NT:40) | 1 шт. | — | |
|
| 25 | 24312-02F00 | BUSH, 1ST DRIVEN | 1 шт. | — | |
|
| 26 | 09181-20251 | WASHER, 1ST, R 20X34X1.0 | 1 шт. | — | |
|
| 27 | 09181-22223 | WASHER, 1ST, L 22X34X1.0 | 1 шт. | — | |
|
| 28 | 24321-18H00 | GEAR, 2ND DRIVEN (NT:35) | 0 шт. | — | |
|
| 29 | 24322-02F01 | BUSH, 2ND DRIVEN | 1 шт. | — | |
|
| 30 | 09160-27008 | WASHER, 2ND DRIVEN 27X36X1.0 | 1 шт. | — | |
|
| 31 | 09380-27006 | CIRCLIP, 2ND DRIVEN | 1 шт. | — | |
|
| 32 | 24331-18H00 | GEAR, 3RD DRIVEN (NT:31) | 1 шт. | — | |
|
| 33 | 24262-17E01 | BUSH, 3RD DRIVEN GEAR | 1 шт. | — | |
|
| 34 | 24333-02F00 | WASHER, 3RD & 4TH DRIVEN | 3 шт. | — | |
|
| 35 | 09380-27006 | CIRCLIP, 3RD DRIVEN | 1 шт. | — | |
|
| 36 | 24341-18H00 | GEAR, 4TH DRIVEN (NT:30) | 0 шт. | — | |
|
| 37 | 24262-17E01 | BUSH, 4TH DRIVEN GEAR | 1 шт. | — | |
|
| 38 | 09380-27006 | CIRCLIP, 4TH DRIVEN | 1 шт. | — | |
|
| 39 | 24351-18H00 | GEAR, 5TH DRIVEN (NT:29) | 0 шт. | — | |
|
| 40 | 24361-18H00 | GEAR, 6TH DRIVEN (NT:30) | 0 шт. | — | |
|
| 41 | 09263-20087 | BEARING, DRIVE SHAFT, R 20X34X3.5 | 1 шт. | — | |
|
| 42 | 09261-06003 | PIN, DRIVE SHADFT, R | 1 шт. | — | |
|
| 43 | 09267-30011 | BEARING, DRIVE SHAFT, L 30X62X23.8 | 1 шт. | — | |
|
| 44 | 09283-42018 | SEAL,OIL (42X62X7) | 1 шт. | — | |
|
| 45 | 27510-21A40 | SPROCKET, ENGINE (NT:18) | 1 шт. | — | |
|
| 46 | 27531-18H00 | SPACER, SPROCKET | 0 шт. | — | |
|
| 47 | 09159-20004 | NUT | 1 шт. | — | |
|
| 48 | 09160-25035 | WASHER (25X40X1.4) | 1 шт. | — | |
|
| 49 | 27600-24F20-120 | CHAIN ASSY (RK50GSVZ3M,120LE) L:120!118 | 1 шт. | — | |
|
| 50 | 27620-24F20 | .JOINT SET OPT | 1 шт. | — | |
|
