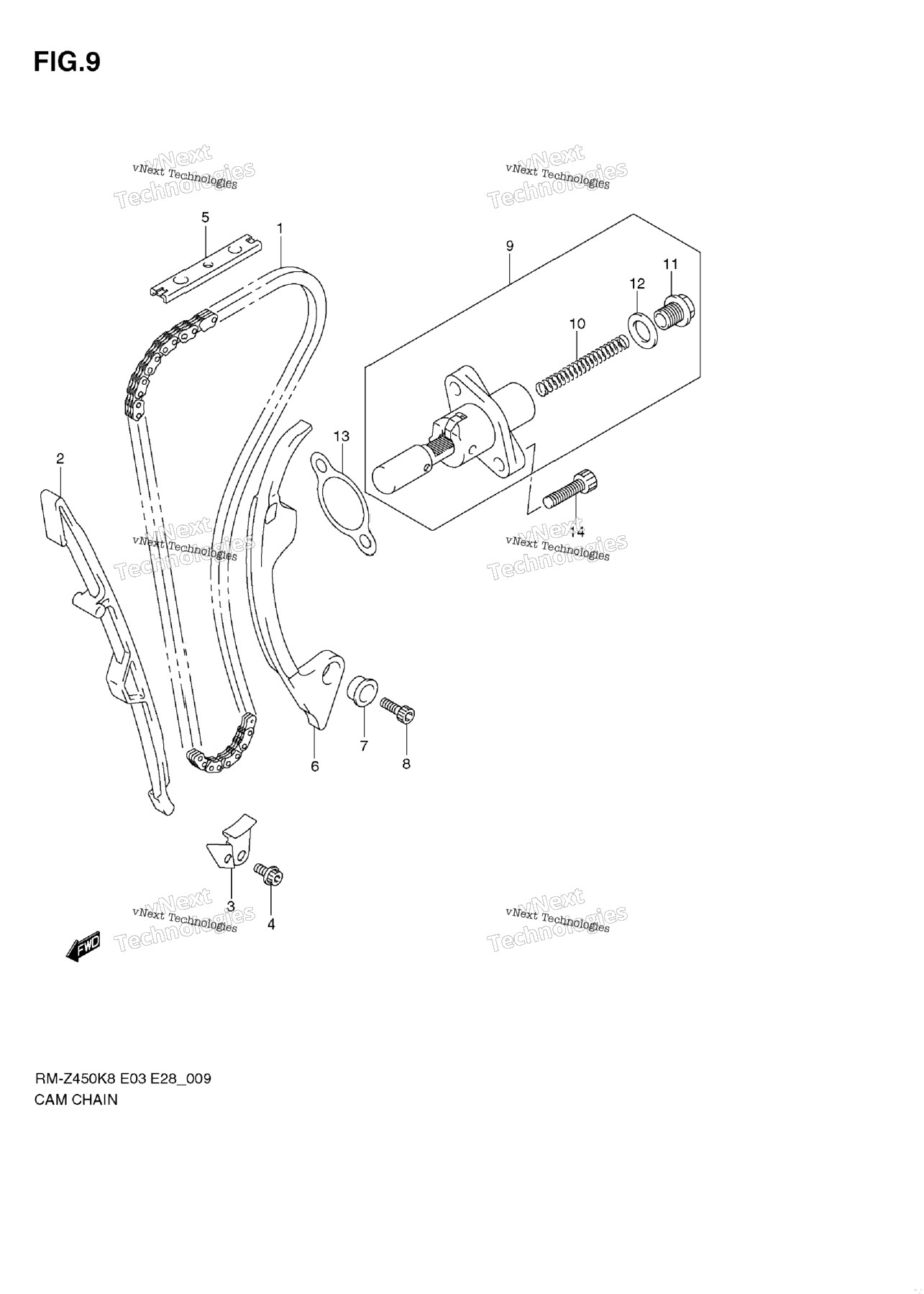

| 1 | 12760-35G00 | CHAIN, CAM SHAFT DRIVE | 1 шт. | — | |
|
| 2 | 12771-28H00 | GUIDE, CAM CHAIN NO.1 | 1 шт. | — | |
|
| 3 | 12773-28H00 | RETAINER | 1 шт. | — | |
|
| 4 | 07120-0610A | BOLT | 1 шт. | — | |
|
| 5 | 12782-35G00 | GUIDE, CAM CHAIN NO.2 | 1 шт. | — | |
|
| 6 | 12811-28H00 | TENSIONER, CAM CHAIN | 1 шт. | — | |
|
| 7 | 12812-35G00 | SPACER | 1 шт. | — | |
|
| 8 | 07130-0616A | BOLT | 1 шт. | — | |
|
| 9 | 12830-35G10 | ADJUSTER ASSY, TENSIONER Includes Item(s) 10 - 12 | 1 шт. | — | |
|
| 10 | 12831-39F00 | SPRING | 1 шт. | — | |
|
| 11 | 12833-05A00 | PLUG | 1 шт. | — | |
|
| 12 | 12837-24F10 | GASKET | 1 шт. | — | |
|
| 13 | 12837-24A10 | .GASKET, TENSIONER ADJUSTER | 1 шт. | — | |
|
| 14 | 07130-0625A | BOLT | 2 шт. | — | |
|
