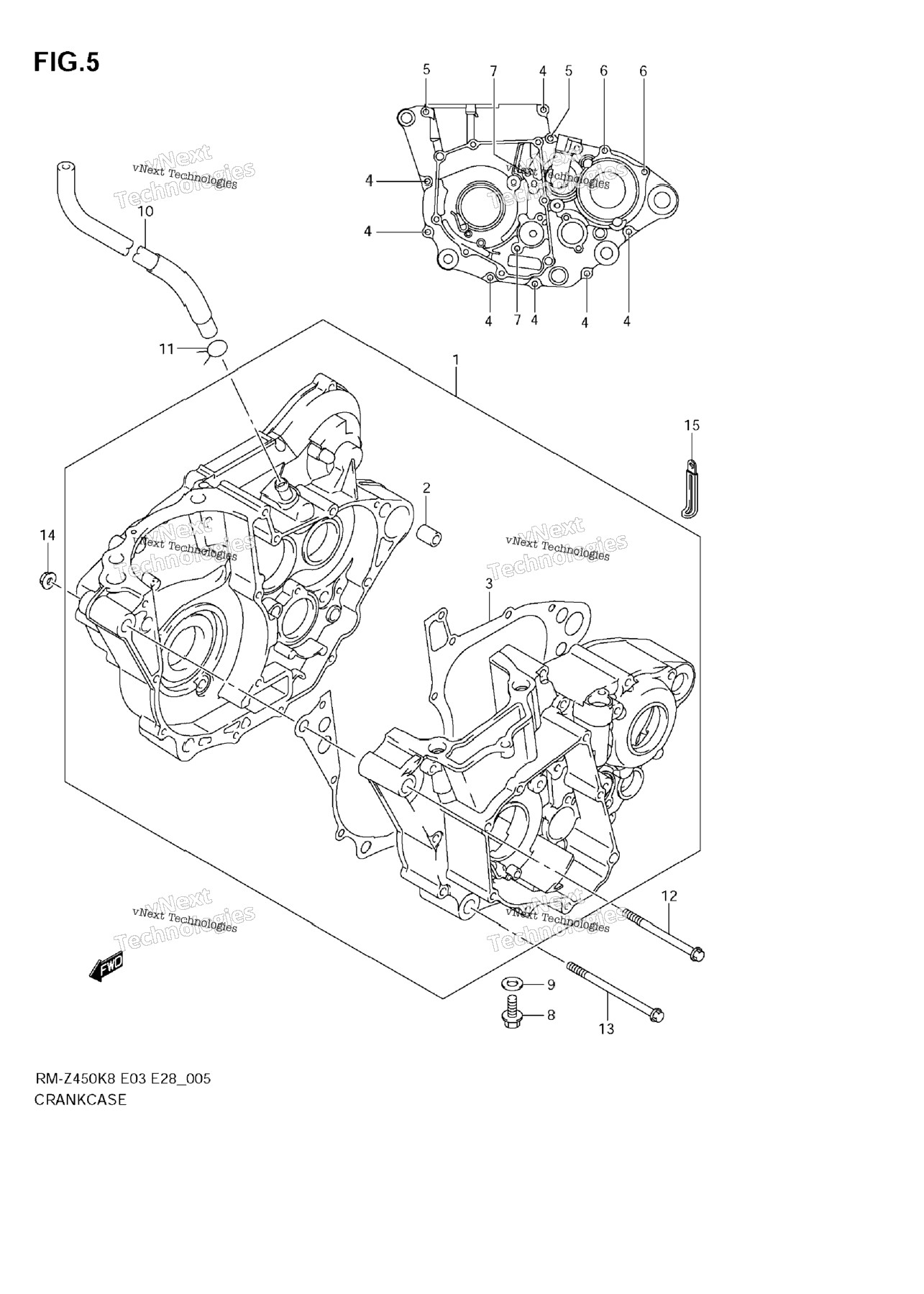

| 1 | 11301-28841 | CRANKCASE SET MODEL K8 | 1 шт. | — | |
|
| 1 | 11301-28860 | CRANKCASE SET MODEL K9; Includes Item(s) 2 - 7 | 1 шт. | — | |
|
| 2 | 09206-13020 | PIN, CRANKCASE | 2 шт. | — | |
|
| 3 | 11481-28H00 | GASKET, CRANKCASE | 1 шт. | — | |
|
| 4 | 01547-0655A | BOLT | 7 шт. | — | |
|
| 5 | 01547-0665A | BOLT, CRANKCASE | 2 шт. | — | |
|
| 6 | 01547-0675A | BOLT, CRANKCASE | 2 шт. | — | |
|
| 7 | 01547-0680A | BOLT | 2 шт. | — | |
|
| 8 | 09103-08393 | PLUG, OIL DRAIN | 1 шт. | — | |
|
| 9 | 09168-08016 | GASKET, OIL DRAIN PLUG | 1 шт. | — | |
|
| 10 | 11332-35G10 | HOSE, BREATHER | 1 шт. | — | |
|
| 11 | 09401-13301 | CLIP, BREATHER HOSE | 1 шт. | — | |
|
| 12 | 09103-10403 | BOLT (10X135) | 1 шт. | — | |
|
| 13 | 09103-10399 | BOLT (10X125) | 1 шт. | — | |
|
| 14 | 09159-10115 | NUT | 2 шт. | — | |
|
| 15 | 09404-06429 | CLAMP, HOSE | 1 шт. | — | |
|
