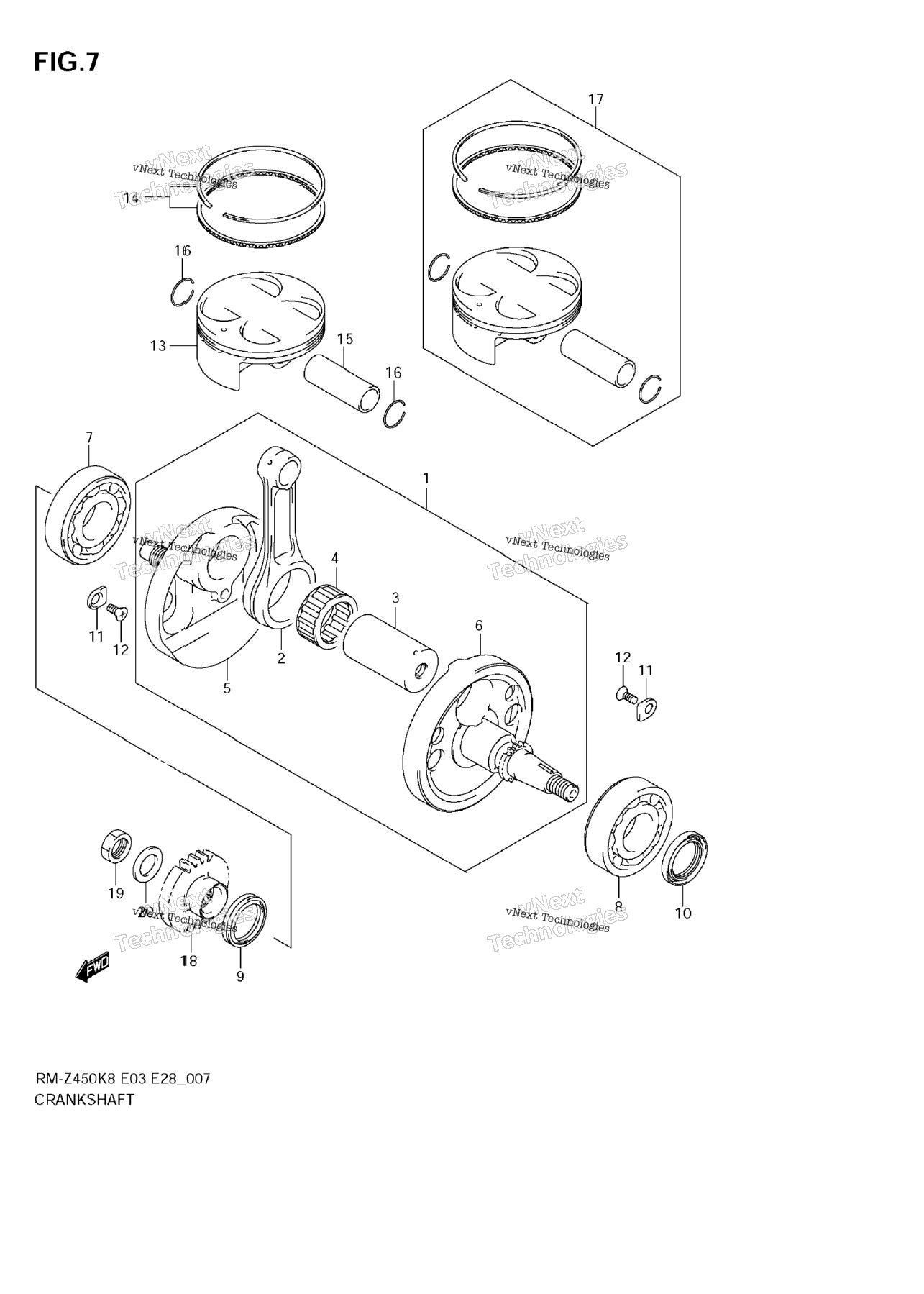

| 1 | 12200-28H00 | CRANKSHAFT ASSY MODEL K8 | 1 шт. | — | |
|
| 1 | 12200-28H01 | CRANKSHAFT ASSY MODEL K9; Includes Item(s) 2 - 6 | 1 шт. | — | |
|
| 2 | 12160-28H00-0B0 | ROD, CONNECTING | 1 шт. | — | |
|
| 3 | 12210-35G01 | PIN MODEL K8 | 1 шт. | — | |
|
| 3 | 12210-35G02 | PIN MODEL K9 | 1 шт. | — | |
|
| 4 | 09263-34012-0B0 | BEARING | 1 шт. | — | |
|
| 5 | 12220-28H00 | CRANKSHAFT, RH | 0 шт. | — | |
|
| 6 | 12261-28H00 | CRANKSHAFT, LH | 0 шт. | — | |
|
| 7 | 09262-30115 | BEARING, RH | 1 шт. | — | |
|
| 8 | 09262-32017 | BEARING, LH | 1 шт. | — | |
|
| 9 | 09283-30061 | OIL SEAL, RH (30X40X7) | 1 шт. | — | |
|
| 10 | 09283-32037 | OIL SEAL, LH (32X47X6) | 1 шт. | — | |
|
| 11 | 24741-20A00 | RETAINER | 4 шт. | — | |
|
| 12 | 09126-06011 | SCREW | 4 шт. | — | |
|
| 13 | 12111-28H00-0F0 | PISTON | 1 шт. | — | |
|
| 14 | 12140-28810 | RING SET, PISTON | 1 шт. | — | |
|
| 15 | 12151-35G01 | PIN, PISTON | 1 шт. | — | |
|
| 16 | 09381-19001 | CIRCLIP | 2 шт. | — | |
|
| 17 | 12110-28810 | PISTON KIT INC.REF.NO.13%16 OPT NOT SHOWN | 1 шт. | — | |
|
| 18 | 21111-28H00 | GEAR, PRIMARY DRIVE | 0 шт. | — | |
|
| 19 | 09140-16036 | NUT | 1 шт. | — | |
|
| 20 | 09164-16002 | WASHER | 1 шт. | — | |
|
