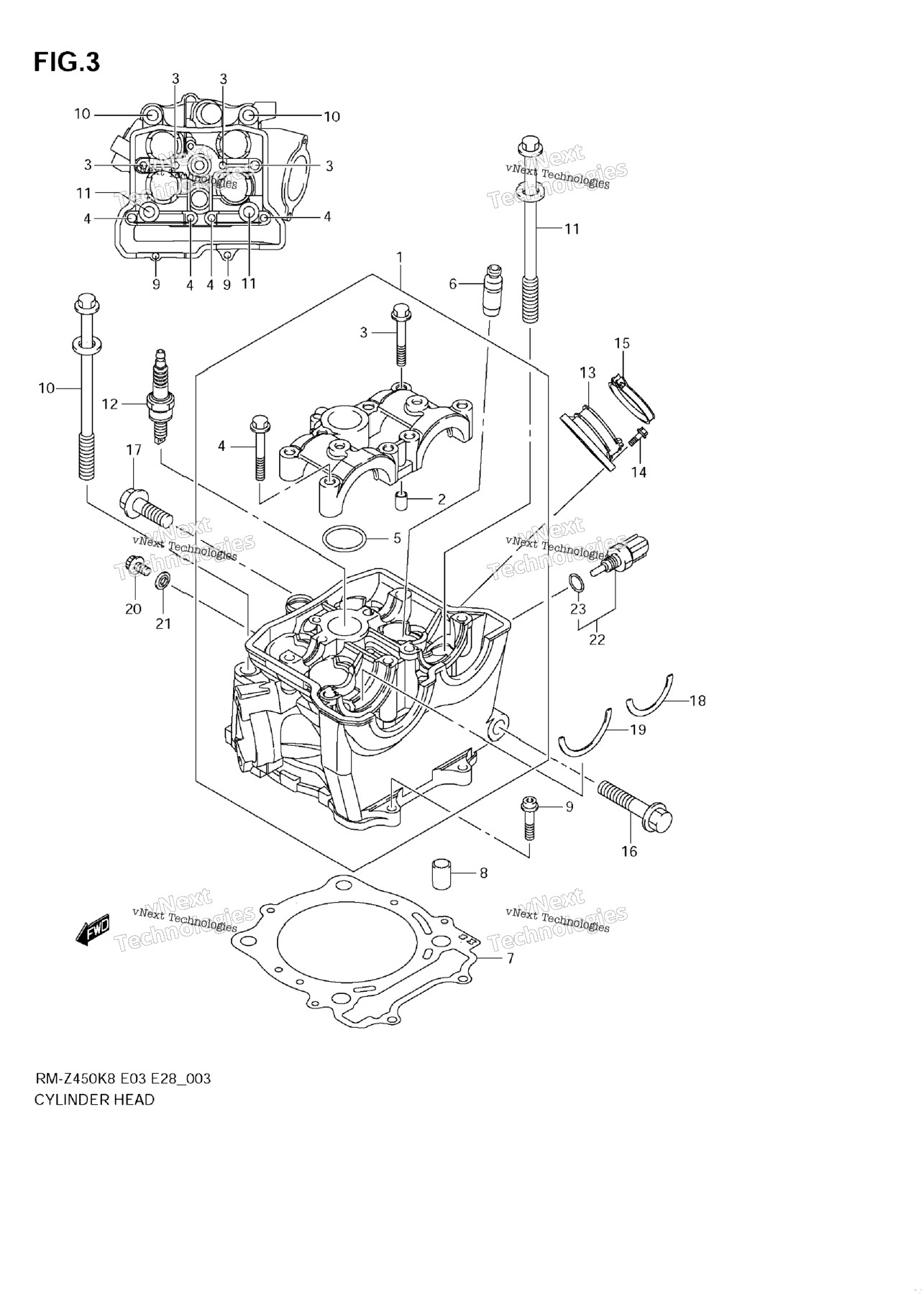

| 1 | 11100-28H00 | HEAD ASSY, CYLINDER Includes Item(s) 2 - 5 | 1 шт. | — | |
|
| 2 | 09206-08001 | PIN, CAMSHAFT HOUSING | 2 шт. | — | |
|
| 3 | 09103-06266 | BOLT, CAMSHAFT HOUSING (6X40) | 4 шт. | — | |
|
| 4 | 09103-06293 | BOLT, CAMSHAFT HOUSING (6X45) | 4 шт. | — | |
|
| 5 | 09280-26007 | .O-RING (ID:25.7,DD:2.4) | 1 шт. | — | |
|
| 6 | 11115-45G70 | GUIDE, VALVE (OS.0.3) OPT | 4 шт. | — | |
|
| 7 | 11141-28H00 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 8 | 04211-13189 | PIN, CYL HEAD KNOCK | 2 шт. | — | |
|
| 9 | 07120-0625A | BOLT, CYLINDER HEAD (L25) | 2 шт. | — | |
|
| 10 | 11117-28H00 | BOLT, CYLINDER HEAD (10X140) | 2 шт. | — | |
|
| 11 | 11161-45G00 | BOLT, CYLINDER HEAD (10X145) | 2 шт. | — | |
|
| 12 | 09482-00600 | PLUG, SPARK (DIMR8A10) | 1 шт. | — | |
|
| 13 | 13101-28H00 | PIPE, INTAKE | 1 шт. | — | |
|
| 14 | 01547-06207 | BOLT | 2 шт. | — | |
|
| 15 | 09402-60901 | CLAMP, INTAKE PIPE | 1 шт. | — | |
|
| 16 | 09103-10116 | BOLT, ENG MTG, LH (10X43) | 1 шт. | — | |
|
| 17 | 09103-10359 | BOLT, ENG MTG, RH (10X30) | 1 шт. | — | |
|
| 18 | 12749-35G00 | C RING, INTAKE | 1 шт. | — | |
|
| 19 | 12749-10H00 | C RING, EXHAUST | 1 шт. | — | |
|
| 20 | 07120-0610A | BOLT | 1 шт. | — | |
|
| 21 | 09168-06023 | GASKET | 1 шт. | — | |
|
| 22 | 13650-14G00 | SENSOR, WATER TEMP Includes Item(s) 23 | 1 шт. | — | |
|
| 23 | 13655-14G00 | O RING | 1 шт. | — | |
|
