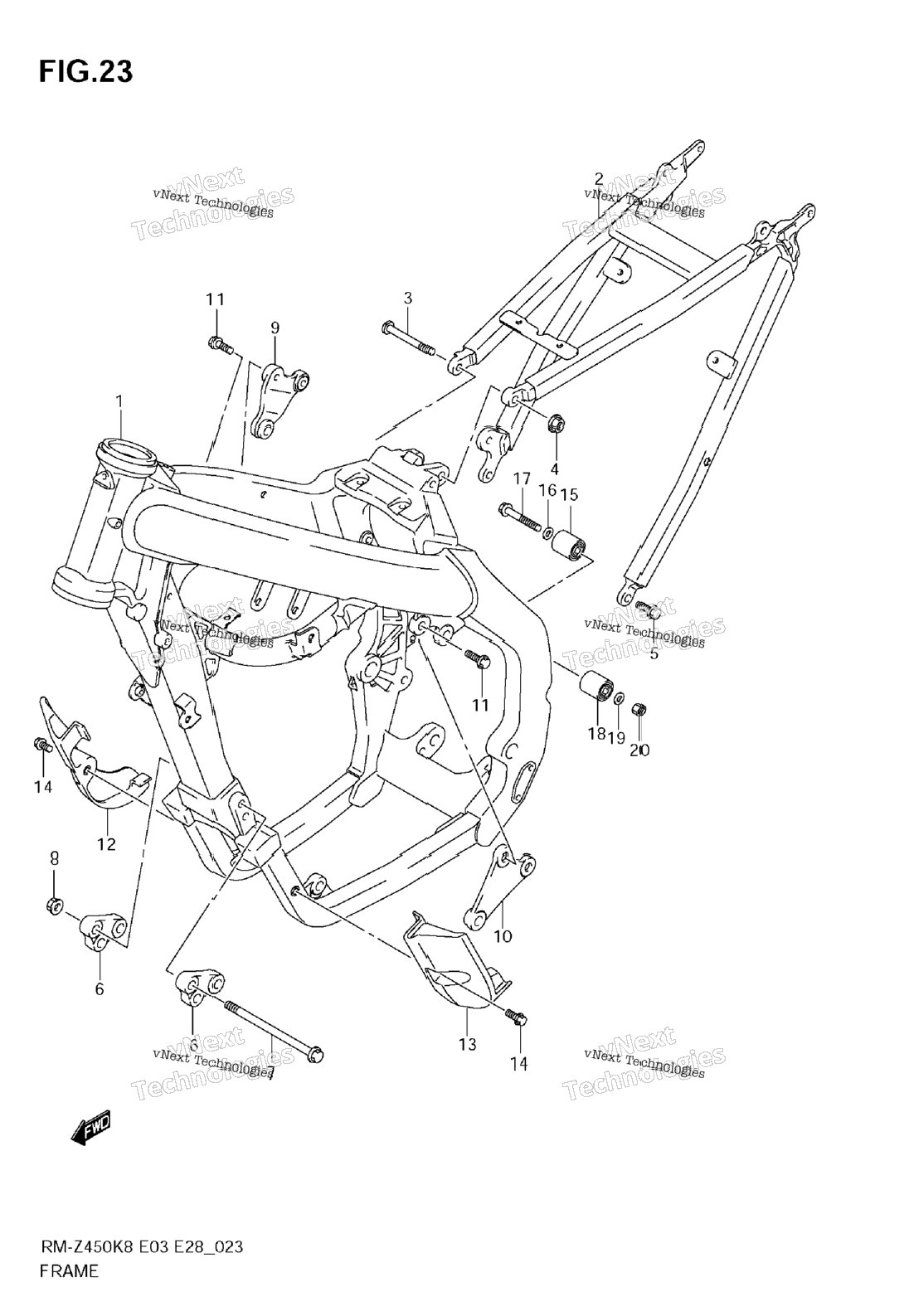

| 1 | 41100-28H00 | FRAME | 1 шт. | — | |
|
| 2 | 41200-28H00 | RAIL, SEAT MODEL K8 | 0 шт. | — | |
|
| 2 | 41200-28H10 | RAIL, SEAT MODEL K9 | 0 шт. | — | |
|
| 3 | 41311-28H00 | BOLT, UPPER MODEL K8 | 1 шт. | — | |
|
| 3 | 41311-28H10 | BOLT, UPPER MODEL K9 | 1 шт. | — | |
|
| 4 | 08319-3108A | NUT | 1 шт. | — | |
|
| 5 | 09103-08426 | BOLT, LOWER | 2 шт. | — | |
|
| 6 | 41991-28H00 | BRACKET, ENGINE MOUNT FRONT | 0 шт. | — | |
|
| 7 | 09103-10403 | BOLT, FRONT | 2 шт. | — | |
|
| 8 | 09159-10115 | NUT | 2 шт. | — | |
|
| 9 | 41993-28H00 | BRACKET, ENGINE MOUNT UPPER RH | 1 шт. | — | |
|
| 10 | 41994-28H00 | BRACKET, ENGINE MOUNT UPPER LH | 0 шт. | — | |
|
| 11 | 09103-08404 | BOLT, UPPER | 4 шт. | — | |
|
| 12 | 42520-28H00 | PROTECTOR, FRONT RH | 1 шт. | — | |
|
| 13 | 42530-28H00 | PROTECTOR, FRONT LH | 1 шт. | — | |
|
| 14 | 09116-06177 | BOLT | 2 шт. | — | |
|
| 15 | 43910-37F00 | ROLLER, CHAIN UPPER | 1 шт. | — | |
|
| 16 | 09181-08167 | WASHER, UPPER | 2 шт. | — | |
|
| 17 | 09103-08207 | BOLT, UPPER | 1 шт. | — | |
|
| 18 | 43910-35G00 | ROLLER, CHAIN LOWER | 1 шт. | — | |
|
| 19 | 09181-08111 | WASHER, LOWER | 1 шт. | — | |
|
| 20 | 08319-2108A | NUT, LOWER | 1 шт. | — | |
|
