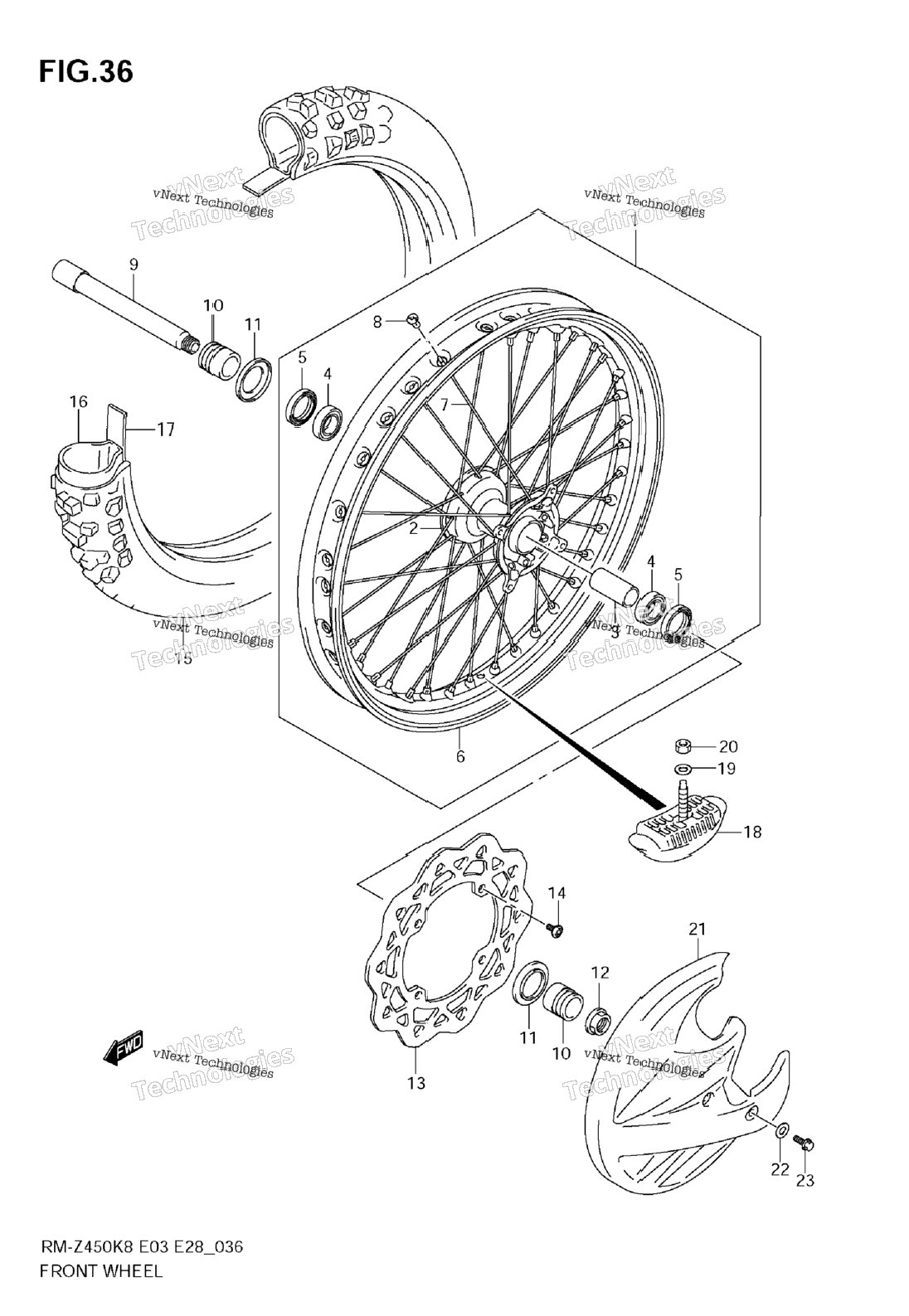

| 1 | 54100-10H00 | WHEEL ASSY, FRONT Includes Item(s) 2 - 8 | 0 шт. | — | |
|
| 2 | 54111-35G01 | HUB, FRONT WHEEL | 1 шт. | — | |
|
| 3 | 54731-35G00 | SPACER,FRONT HUB BEARING (20. | 1 шт. | — | |
|
| 4 | 09262-22034 | BEARING | 2 шт. | — | |
|
| 5 | 09283-30073 | SEAL, FRONT HUB | 2 шт. | — | |
|
| 6 | 55311-10H00 | RIM, FRONT WHEEL (1.60X21) | 1 шт. | — | |
|
| 7 | 55321-35G10 | SPOKE, FRONT WHEEL | 36 шт. | — | |
|
| 8 | 55325-35G00 | NIPPLE, FRONT WHEEL | 36 шт. | — | |
|
| 9 | 54711-35G00 | AXLE, FRONT | 1 шт. | — | |
|
| 10 | 54741-35G00 | SPACER, AXLE (L:41) | 2 шт. | — | |
|
| 11 | 54742-35G00 | COVER, FRONT AXLE SPACER | 2 шт. | — | |
|
| 12 | 09159-18016 | NUT | 1 шт. | — | |
|
| 13 | 59221-28H00 | DISC, FRONT BRAKE | 1 шт. | — | |
|
| 14 | 09139-06142 | SCREW | 4 шт. | — | |
|
| 15 | 55110-28H00 | TIRE, FRONT (80/100-21) (BRIDGESTONE) | 1 шт. | — | |
|
| 16 | 55200-35G00 | TUBE ASSY, WHEEL INNER | 0 шт. | — | |
|
| 17 | 55261-35G00 | PROTECTOR, INNER TUBE | 1 шт. | — | |
|
| 18 | 65270-14300 | STOPPER, BEAD | 1 шт. | — | |
|
| 19 | 08322-0108B | WASHER | 1 шт. | — | |
|
| 20 | 08310-0008B | NUT | 1 шт. | — | |
|
| 21 | 59231-36E30-YU1 | COVER, FRONT BRAKE DISC OPT | 0 шт. | — | |
|
| 22 | 59232-36E30 | WASHER, FRONT BRAKE DISC COVER OPT | 2 шт. | — | |
|
| 23 | 09103-06233 | BOLT OPT | 2 шт. | — | |
|
