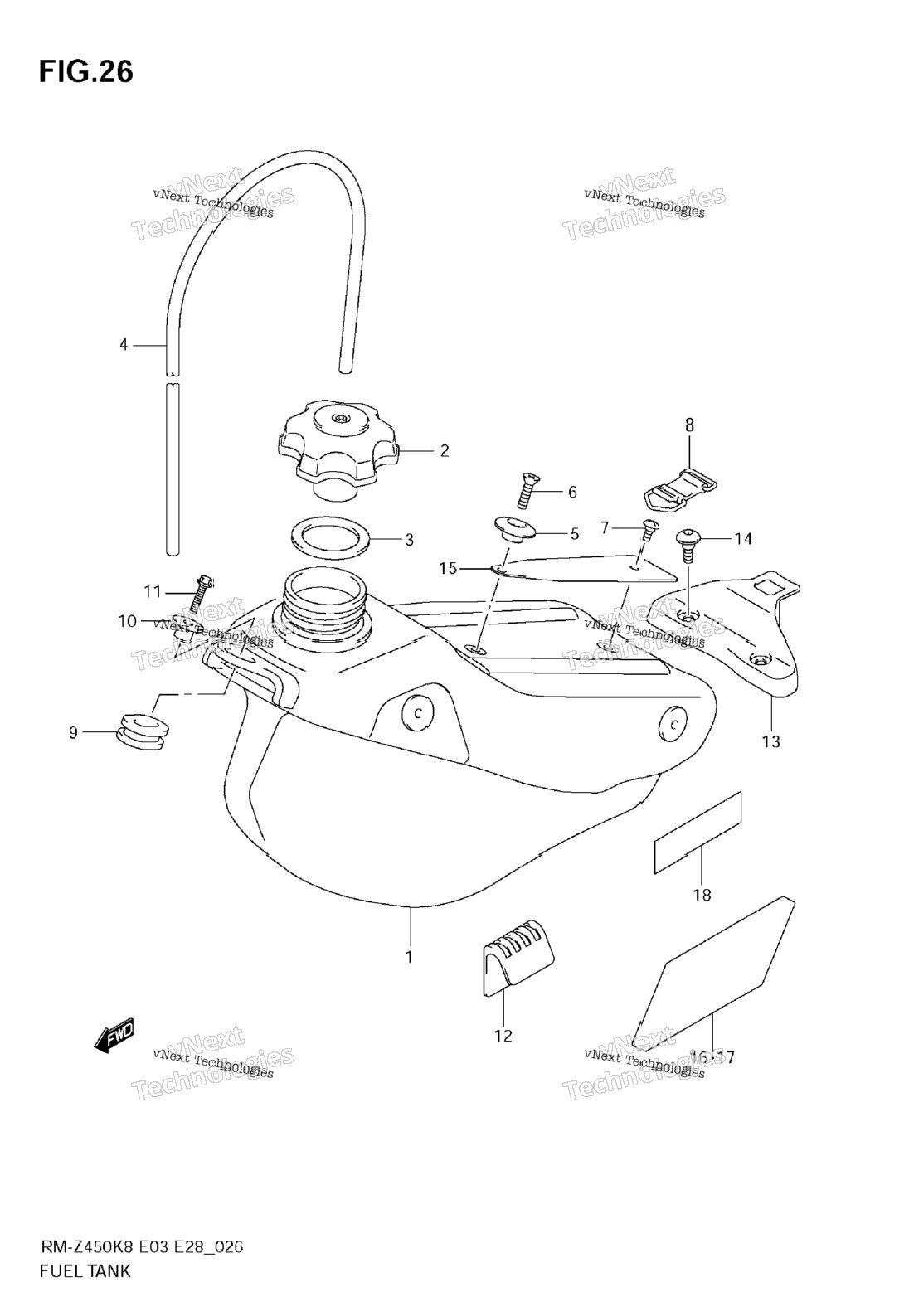

| 1 | 44110-28H00 | TANK, FUEL MODEL K8 | 0 шт. | — | |
|
| 1 | 44110-28H01 | TANK, FUEL MODEL K9 | 1 шт. | — | |
|
| 2 | 44210-37F00 | CAP, FUEL TANK | 1 шт. | — | |
|
| 3 | 44248-27C00 | GASKET | 1 шт. | — | |
|
| 4 | 09352-50823-600 | HOSE, BREATHER (L:600!350) | 1 шт. | — | |
|
| 5 | 44132-37F10 | HOOK, SEAT FRONT | 1 шт. | — | |
|
| 6 | 02122-0620B | SCREW, HOOK | 1 шт. | — | |
|
| 7 | 09139-06134 | SCREW, TANK BAND | 1 шт. | — | |
|
| 8 | 44560-27C00 | BAND, FUEL TANK | 1 шт. | — | |
|
| 9 | 44541-28H00 | CUSHION, FRONT | 1 шт. | — | |
|
| 10 | 44134-35G02 | SPACER | 1 шт. | — | |
|
| 11 | 09103-06213 | BOLT, FRONT | 1 шт. | — | |
|
| 12 | 44543-35G00 | CUSHION, TANK SIDE | 2 шт. | — | |
|
| 13 | 44542-28H00 | CUSHION, REAR | 0 шт. | — | |
|
| 14 | 09139-05074 | SCREW | 2 шт. | — | |
|
| 15 | 44280-28H00 | PROTECTOR, FUEL TANK | 1 шт. | — | |
|
| 16 | 17795-28H00 | PROTECTOR, RH | 1 шт. | — | |
|
| 17 | 17796-28H00 | PROTECTOR, LH | 1 шт. | — | |
|
| 18 | 17797-28H00 | PROTECTOR, RADIATOR | 2 шт. | — | |
|
