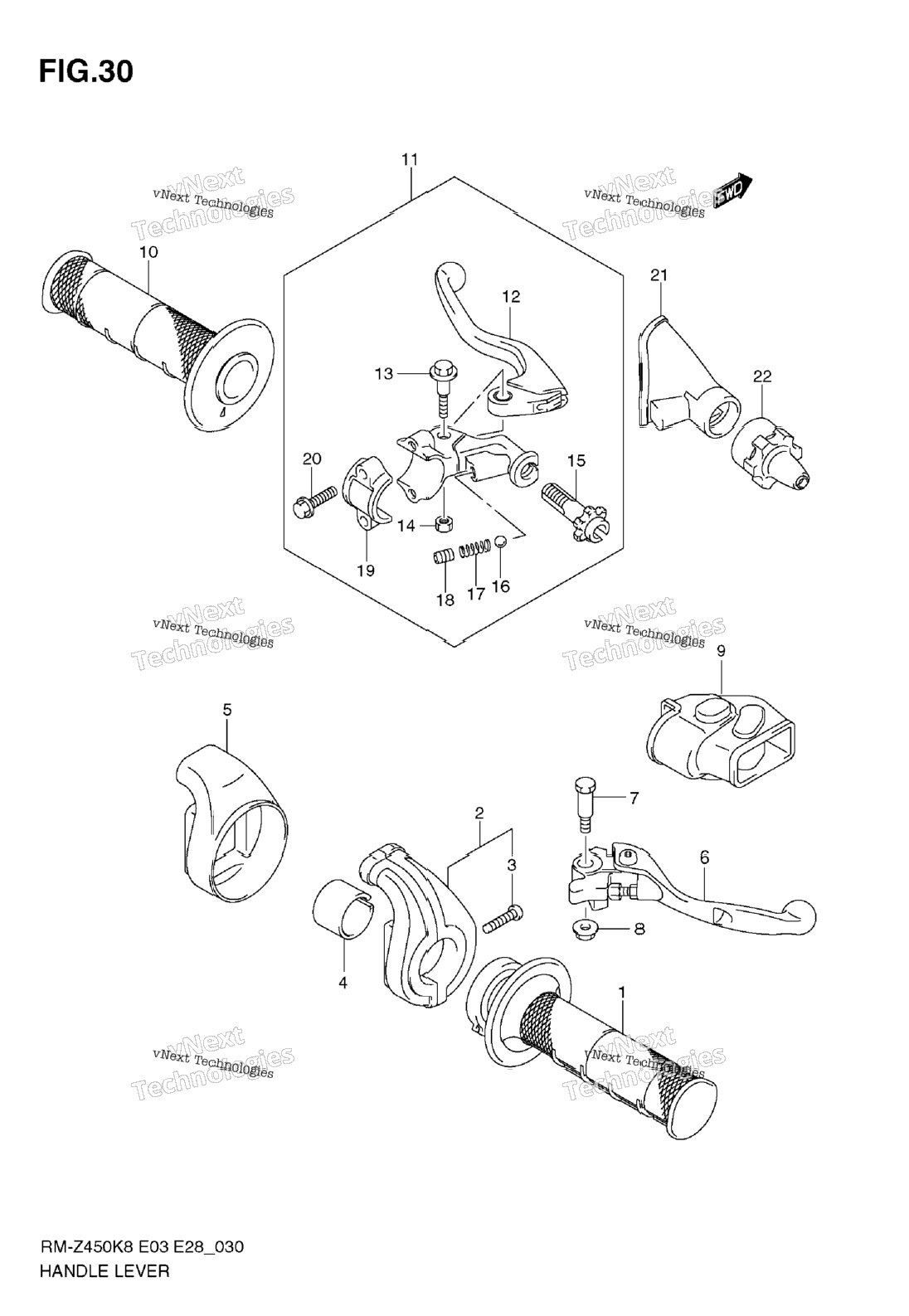

| 1 | 57110-28H00 | GRIP, THROTTLE | 1 шт. | — | |
|
| 2 | 57100-10H00 | CASE ASSY, THROTTLE Includes Item(s) 3 | 1 шт. | — | |
|
| 3 | 57141-35G00 | SCREW | 2 шт. | — | |
|
| 4 | 57151-35G00 | COLLAR, CASE | 1 шт. | — | |
|
| 5 | 57129-35G00 | COVER, THROTTLE CASE | 1 шт. | — | |
|
| 6 | 57310-37F00 | LEVER, BRAKE | 1 шт. | — | |
|
| 7 | 57431-14500 | BOLT, BRAKE LEVER | 1 шт. | — | |
|
| 8 | 08316-1006B | NUT | 1 шт. | — | |
|
| 9 | 57343-35G00 | COVER, BRAKE LEVER | 1 шт. | — | |
|
| 10 | 57211-28H00 | GRIP, LH | 1 шт. | — | |
|
| 11 | 57500-28H00 | LEVER ASSY, CLUTCH Includes Item(s) 12 - 20 | 1 шт. | — | |
|
| 12 | 57621-35G10 | LEVER, CLUTCH | 1 шт. | — | |
|
| 13 | 57431-35G00 | BOLT, PIVOT | 1 шт. | — | |
|
| 14 | 08310-00057 | NUT | 1 шт. | — | |
|
| 15 | 57441-37F00 | ADJUSTER, CABLE | 1 шт. | — | |
|
| 16 | 06111-06003 | BALL | 1 шт. | — | |
|
| 17 | 09440-04003 | SPRING | 1 шт. | — | |
|
| 18 | 09134-06009 | SCREW | 1 шт. | — | |
|
| 19 | 57512-28C00 | .BRACKET, CLUTCH LEVER HOLDER | 1 шт. | — | |
|
| 20 | 57513-29F10 | .BOLT, BRACKET | 1 шт. | — | |
|
| 21 | 57341-28H00 | COVER, CLUTCH LEVER | 1 шт. | — | |
|
| 22 | 57342-37F00 | COVER, CLUTCH ADJUSTER | 1 шт. | — | |
|
