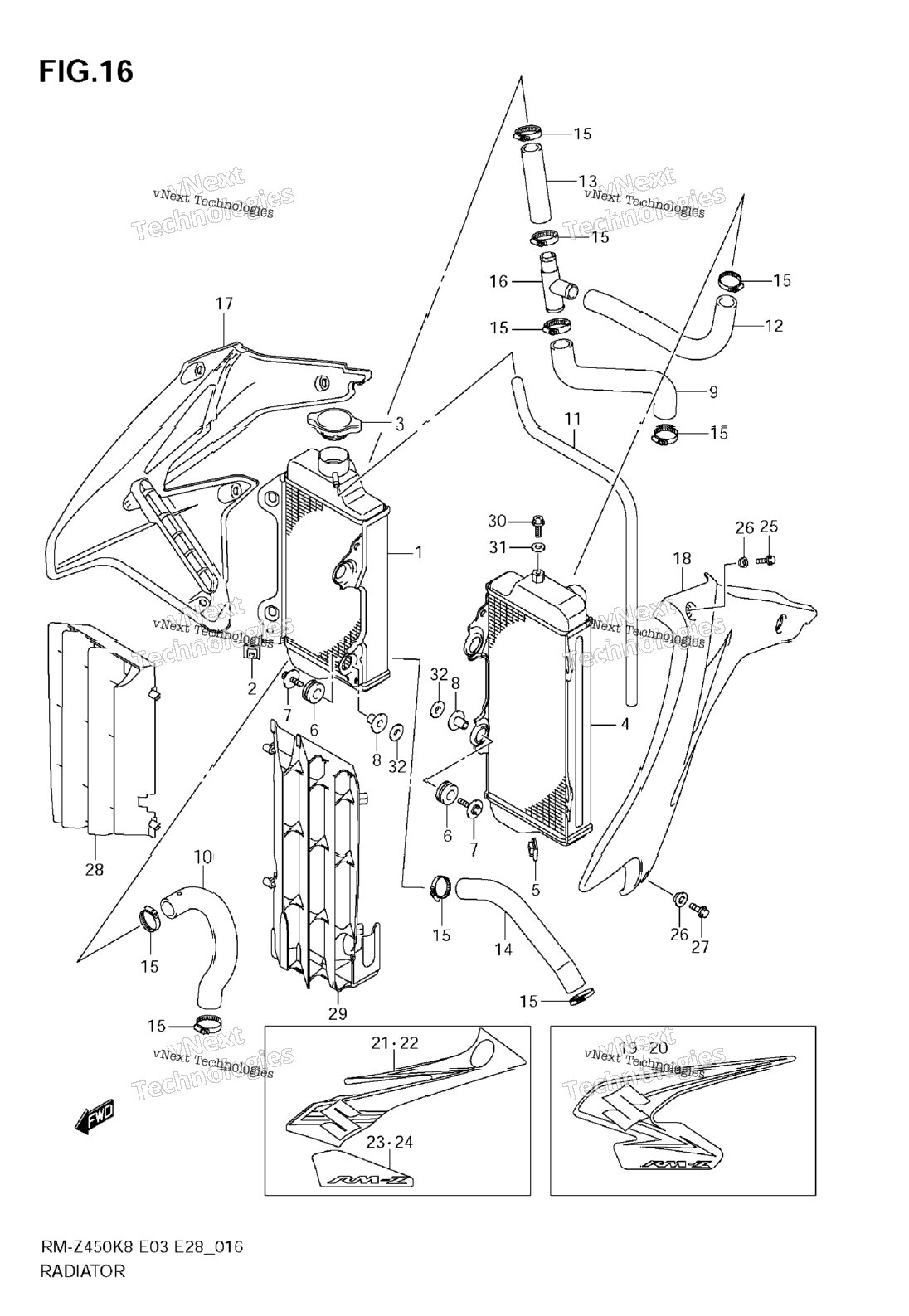

| 1 | 17710-28H00 | RADIATOR, RH Includes Item(s) 2 | 1 шт. | — | |
|
| 2 | 17712-40F00 | NUT, FAN ASSY | 2 шт. | — | |
|
| 3 | 17730-12C20 | CAP, RADIATOR (1.1) | 1 шт. | — | |
|
| 4 | 17720-28H00 | RADIATOR, LH Includes Item(s) 5 | 1 шт. | — | |
|
| 5 | 17712-40F00 | NUT, FAN ASSY | 2 шт. | — | |
|
| 6 | 17787-19A00 | CUSHION RADIATOR LWR | 4 шт. | — | |
|
| 7 | 09116-06186 | BOLT (6X25) | 4 шт. | — | |
|
| 8 | 09180-06243 | SPACER | 4 шт. | — | |
|
| 9 | 17851-28H00 | HOSE, INLET | 1 шт. | — | |
|
| 10 | 17852-28H00 | HOSE, OUTLET | 1 шт. | — | |
|
| 11 | 09351-50803-00A | HOSE, OVERFLOW L:1000!650 | 1 шт. | — | |
|
| 12 | 17853-28H00 | HOSE, JOINT UPPER NO.1 | 1 шт. | — | |
|
| 13 | 17854-28H00 | HOSE, JOINT UPPER NO.2 | 0 шт. | — | |
|
| 14 | 17855-28H00 | HOSE, JOINT LOWER | 1 шт. | — | |
|
| 15 | 09402-28513 | CLAMP | 10 шт. | — | |
|
| 16 | 17857-35G10 | JOINT, RADIATOR HOSE | 1 шт. | — | |
|
| 17 | 17761-28H00-EYY | COVER, RADIATOR, RH (YELLOW/BLUE) MODEL K8 | 0 шт. | — | |
|
| 18 | 17761-28H00-GY8 | COVER, RADIATOR, RH (YELLOW/BLACK) MODEL K9 | 1 шт. | — | |
|
| 19 | 17762-28H00-EYY | COVER, RADIATOR, LH (YELLOW/BLUE) MODEL K8 | 0 шт. | — | |
|
| 20 | 17762-28H00-GY8 | COVER, RADIATOR, LH (YELLOW/BLACK) MODEL K9 | 1 шт. | — | |
|
| 21 | 68660-28H00-EMA | TAPE, RADIATOR COVER, RH MODEL K8 | 0 шт. | — | |
|
| 22 | 68670-28H00-EMA | TAPE, RADIATOR COVER, LH MODEL K8 | 0 шт. | — | |
|
| 23 | 68660-28H10-FYF | TAPE, RADIATOR COVER, RH MODEL K9 | 0 шт. | — | |
|
| 24 | 68670-28H10-FYF | TAPE, RADIATOR COVER, LH MODEL K9 | 0 шт. | — | |
|
| 25 | 68665-28H00-DCP | EMBLEM, RADIATOR COVER, RH MODEL K9 | 0 шт. | — | |
|
| 26 | 68675-28H00-DCP | EMBLEM, RADIATOR COVER, LH MODEL K9 | 0 шт. | — | |
|
| 27 | 09103-06233 | BOLT (6X12) | 6 шт. | — | |
|
| 28 | 47191-10H01 | WASHER, RADIATOR COVER | 8 шт. | — | |
|
| 29 | 09103-06234 | BOLT (6X16) | 2 шт. | — | |
|
| 30 | 17831-28H00 | LOUVER, RADIATOR, R | 1 шт. | — | |
|
| 31 | 17832-28H00 | LOUVER, RADIATOR, L | 1 шт. | — | |
|
| 32 | 17568-50F00 | BOLT, AIR RELEASE | 1 шт. | — | |
|
| 33 | 09168-06026 | GASKET | 1 шт. | — | |
|
| 34 | 09160-06162 | WASHER | 0 шт. | — | |
|
