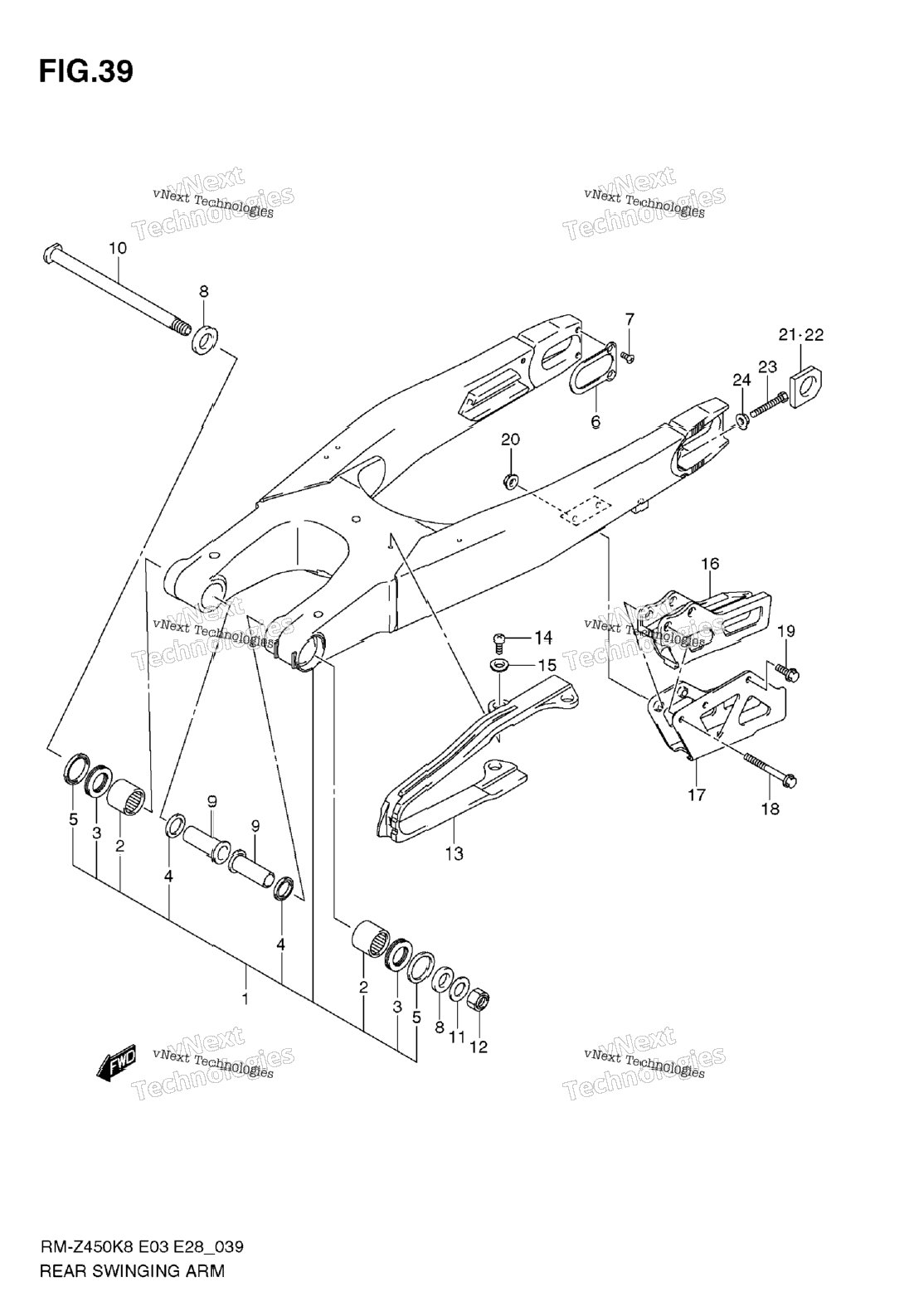

| 1 | 61000-28H00 | SWINGING ARM ASSY, REAR Includes Item(s) 2 - 7 | 0 шт. | — | |
|
| 2 | 09263-22017 | BEARING, PIVOT (22X29X30) | 2 шт. | — | |
|
| 3 | 09263-22064 | BEARING, OUTER (22X35X2) | 2 шт. | — | |
|
| 4 | 09285-22001 | SEAL, INNER (22X29X4) | 2 шт. | — | |
|
| 5 | 61262-36E00 | .SEAL RR SWGARM PIVOT OUTER ( | 2 шт. | — | |
|
| 6 | 61128-35G00 | PLATE, SWINGINGARM, REAR | 0 шт. | — | |
|
| 7 | 02122-0410B | SCREW (4X10) | 4 шт. | — | |
|
| 8 | 61251-36E01 | SPACER, PIVOT OUTER | 2 шт. | — | |
|
| 9 | 61252-37F01 | SPACER, PIVOT INNER | 2 шт. | — | |
|
| 10 | 61211-28H00 | SHAFT, PIVOT | 1 шт. | — | |
|
| 11 | 08322-0116B | WASHER | 1 шт. | — | |
|
| 12 | 09159-16007 | NUT | 1 шт. | — | |
|
| 13 | 61273-37F10 | BUFFER, CHAIN TOUCH DEFENSE | 1 шт. | — | |
|
| 14 | 02112-0508B | SCREW | 3 шт. | — | |
|
| 15 | 09169-05022 | WASHER | 3 шт. | — | |
|
| 16 | 61341-35G10 | GUIDE, CHAIN | 1 шт. | — | |
|
| 17 | 61342-37F00 | PLATE CHAIN GUIDE | 1 шт. | — | |
|
| 18 | 09103-06242 | BOLT, UPPER | 2 шт. | — | |
|
| 19 | 09103-06233 | BOLT, REAR | 1 шт. | — | |
|
| 20 | 08316-1006B | NUT | 2 шт. | — | |
|
| 21 | 61445-28H00 | WASHER, CHAIN ADJUSTER, R | 1 шт. | — | |
|
| 22 | 61446-28H00 | WASHER, CHAIN ADJUSTER, L | 1 шт. | — | |
|
| 23 | 09100-08287 | BOLT (8X50) | 2 шт. | — | |
|
| 24 | 09159-08034 | NUT | 2 шт. | — | |
|
