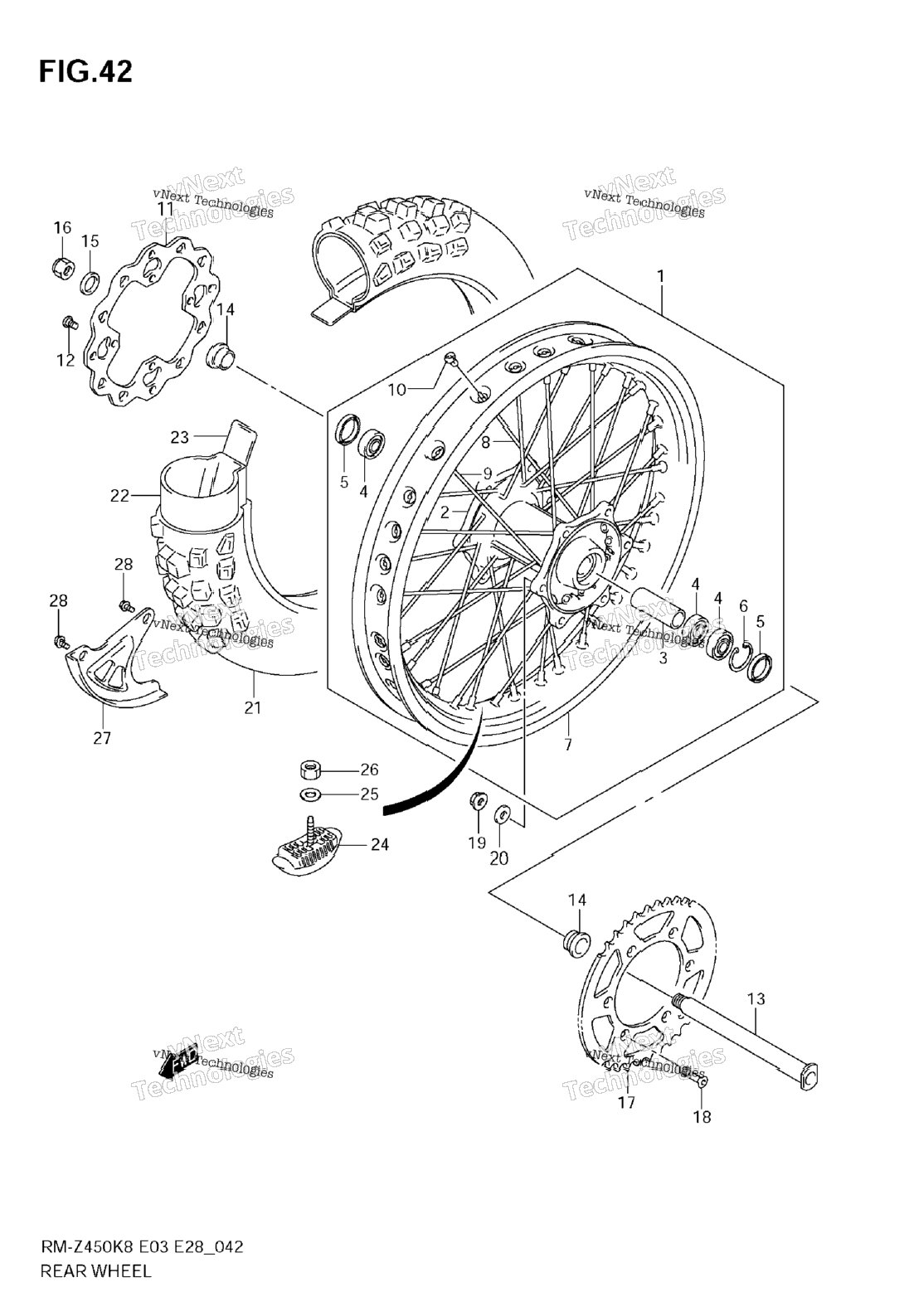

| 1 | 64100-28H00 | WHEEL ASSY, REAR Includes Item(s) 2 - 10 | 1 шт. | — | |
|
| 2 | 64111-35G20 | HUB, REAR WHEEL | 1 шт. | — | |
|
| 3 | 64731-35G01 | SPACER, BEARING | 1 шт. | — | |
|
| 4 | 09262-25139 | BEARING | 3 шт. | — | |
|
| 5 | 09283-32045 | SEAL, DUST | 2 шт. | — | |
|
| 6 | 08331-4142A | CIRCLIP | 1 шт. | — | |
|
| 7 | 65311-35G00 | RIM, REAR WHEEL (1.85X19) | 1 шт. | — | |
|
| 8 | 65321-35G10 | SPOKE, WHEEL INNER | 18 шт. | — | |
|
| 9 | 65322-35G10 | SPOKE, WHEEL OUTER | 18 шт. | — | |
|
| 10 | 65325-35G10 | NIPPLE, WHEEL | 36 шт. | — | |
|
| 11 | 69211-28H00 | DISC, REAR BRAKE | 1 шт. | — | |
|
| 12 | 09139-08022 | SCREW | 4 шт. | — | |
|
| 13 | 64711-35G00 | AXLE, REAR | 1 шт. | — | |
|
| 14 | 64751-35G00 | SPACER | 2 шт. | — | |
|
| 15 | 09160-22081 | WASHER | 1 шт. | — | |
|
| 16 | 09159-22007 | NUT | 1 шт. | — | |
|
| 17 | 64511-36E00 | SPROCKET, REAR (NT:50) | 1 шт. | — | |
|
| 18 | 64511-37E00 | SPROCKET, REAR (NT:48) OPT | 1 шт. | — | |
|
| 19 | 64511-40261 | SPROCKET, REAR (NT:51) OPT | 1 шт. | — | |
|
| 20 | 09120-08017 | SCREW (8X30.5) | 6 шт. | — | |
|
| 21 | 09159-08133 | NUT | 6 шт. | — | |
|
| 22 | 09160-08082 | WASHER | 6 шт. | — | |
|
| 23 | 65110-28H00 | TIRE, REAR (110/90-19) (BRIDGESTONE) | 0 шт. | — | |
|
| 24 | 65200-35G00 | TUBE ASSY, WHEEL INNER | 0 шт. | — | |
|
| 25 | 65261-35G00 | PROTECTOR, INNER TUBE | 1 шт. | — | |
|
| 26 | 65270-28E00 | STOPPER, BEAD | 1 шт. | — | |
|
| 27 | 08322-0108B | WASHER | 1 шт. | — | |
|
| 28 | 08310-0008B | NUT | 1 шт. | — | |
|
| 29 | 69231-37F11 | COVER, REAR DISC | 1 шт. | — | |
|
| 30 | 09116-06197 | BOLT | 2 шт. | — | |
|
