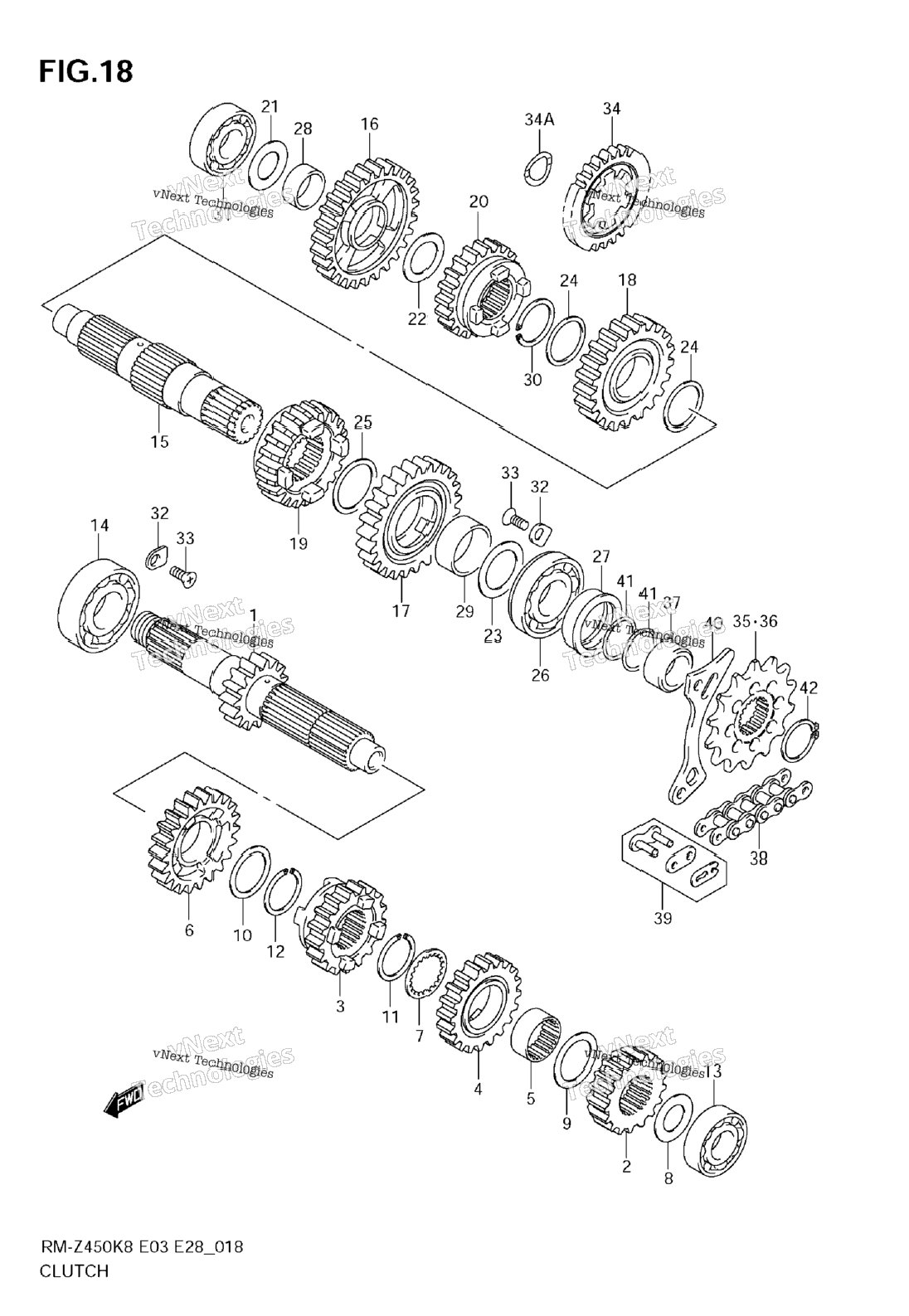

| 1 | 24120-28H00 | SHAFT, COUNTER (NT:15) | 1 шт. | — | |
|
| 2 | 24221-28H00 | GEAR, 2ND DRIVE (NT:17) | 1 шт. | — | |
|
| 3 | 24231-28H00 | GEAR, 3RD DRIVE (NT:17) | 1 шт. | — | |
|
| 4 | 24241-28H00 | GEAR, 4TH DRIVE (NT:20) | 1 шт. | — | |
|
| 5 | 24242-37F00 | BUSH, 4TH DRIVE GEAR | 1 шт. | — | |
|
| 6 | 24251-28H00 | GEAR, 5TH DRIVE (NT:22) | 1 шт. | — | |
|
| 7 | 09167-25026 | WASHER, 4TH DRIVE GEAR, R | 1 шт. | — | |
|
| 8 | 09181-17223 | WASHER, 2ND DRIVE GEAR 17X30X1.0 | 1 шт. | — | |
|
| 9 | 09181-25059 | WASHER, 4TH DRIVE GEAR, L 25X34X1.0 | 1 шт. | — | |
|
| 10 | 09181-25139 | SHIM (25X32X1) 25X32X1.0 | 1 шт. | — | |
|
| 11 | 09380-25010 | CIRCLIP, 4TH DRIVE GEAR | 1 шт. | — | |
|
| 12 | 09380-25010 | CIRCLIP, 5TH DRIVE GEAR | 1 шт. | — | |
|
| 13 | 08123-62030 | BEARING, CNTR SHAFT, L | 1 шт. | — | |
|
| 14 | 08143-62057 | BEARING, CNTR SHAFT, R | 1 шт. | — | |
|
| 15 | 24131-28H00 | SHAFT, DRIVE | 1 шт. | — | |
|
| 16 | 24311-28H00 | GEAR, 1ST DRIVEN (NT:27) | 1 шт. | — | |
|
| 17 | 24321-28H00 | GEAR, 2ND DRIVEN (NT:25) | 1 шт. | — | |
|
| 18 | 24331-28H00 | GEAR, 3RD DRIVEN (NT:21) | 1 шт. | — | |
|
| 19 | 24341-28H00 | GEAR, 4TH DRIVEN (NT:21) | 1 шт. | — | |
|
| 20 | 24351-28H00 | GEAR, 5TH DRIVEN (NT:20) | 1 шт. | — | |
|
| 21 | 09181-17223 | WASHER, 1ST DRIVEN GEAR, R 17X30X1.0 | 1 шт. | — | |
|
| 22 | 09181-20195 | WASHER, 1ST DRIVEN GEAR, L 20X30X1.0 | 1 шт. | — | |
|
| 23 | 09181-24005 | WASHER, 2ND DRIVEN GEAR, L 24X34X1.0 | 1 шт. | — | |
|
| 24 | 09181-25111 | WASHER, 3RD DRIVEN GEAR 25X30X1.0 | 2 шт. | — | |
|
| 25 | 09181-27015 | WASHER, 2ND DRIVEN GEAR, R 27X33X1.0 | 1 шт. | — | |
|
| 26 | 09262-24001 | BEARING, DRIVE SHAFT, L 24X56X14 | 1 шт. | — | |
|
| 27 | 09289-31003 | SEAL, DRIVE SHAFT OIL | 1 шт. | — | |
|
| 28 | 09300-20037 | BUSH, 1ST DRIVEN GEAR | 1 шт. | — | |
|
| 29 | 09300-27005 | BUSH, 2ND DRIVEN GEAR | 0 шт. | — | |
|
| 30 | 09380-25010 | CIRCLIP, 2ND DRIVEN GEAR, R | 1 шт. | — | |
|
| 31 | 08123-62030 | BEARING, DRIVE SHAFT, R | 1 шт. | — | |
|
| 32 | 24741-20A00 | RETAINER | 2 шт. | — | |
|
| 33 | 09126-06011 | SCREW, DRIVE SHAFT BRG 6X12 | 2 шт. | — | |
|
| 34 | 26260-35G00 | GEAR, KICK STARTER IDLE NT:23 | 1 шт. | — | |
|
| 35 | 26264-28H00 | WASHER, KICK IDLE | 1 шт. | — | |
|
| 36 | 27511-35G30 | SPROCKET, ENGINE (NT:13) | 1 шт. | — | |
|
| 37 | 27511-35G20 | SPROCKET, ENGINE (NT:14) OPT | 1 шт. | — | |
|
| 38 | 27531-35G01 | SPACER, ENGINE SPROCKET | 1 шт. | — | |
|
| 39 | 27600-35G10-114 | CHAIN ASSY, DRIVE DID520MXV,114L | 0 шт. | — | |
|
| 40 | 27620-35G10 | JOINT SET, CHAIN OPT | 1 шт. | — | |
|
| 41 | 27641-35G00 | PLATE, FRONT CHAIN GUIDE | 1 шт. | — | |
|
| 42 | 09280-21010 | O-RING (D:1.9,ID:21.8) D:1.9,ID:21.8 | 2 шт. | — | |
|
| 43 | 08331-3124A | CIRCLIP, ENGINE SPROCKET | 1 шт. | — | |
|
