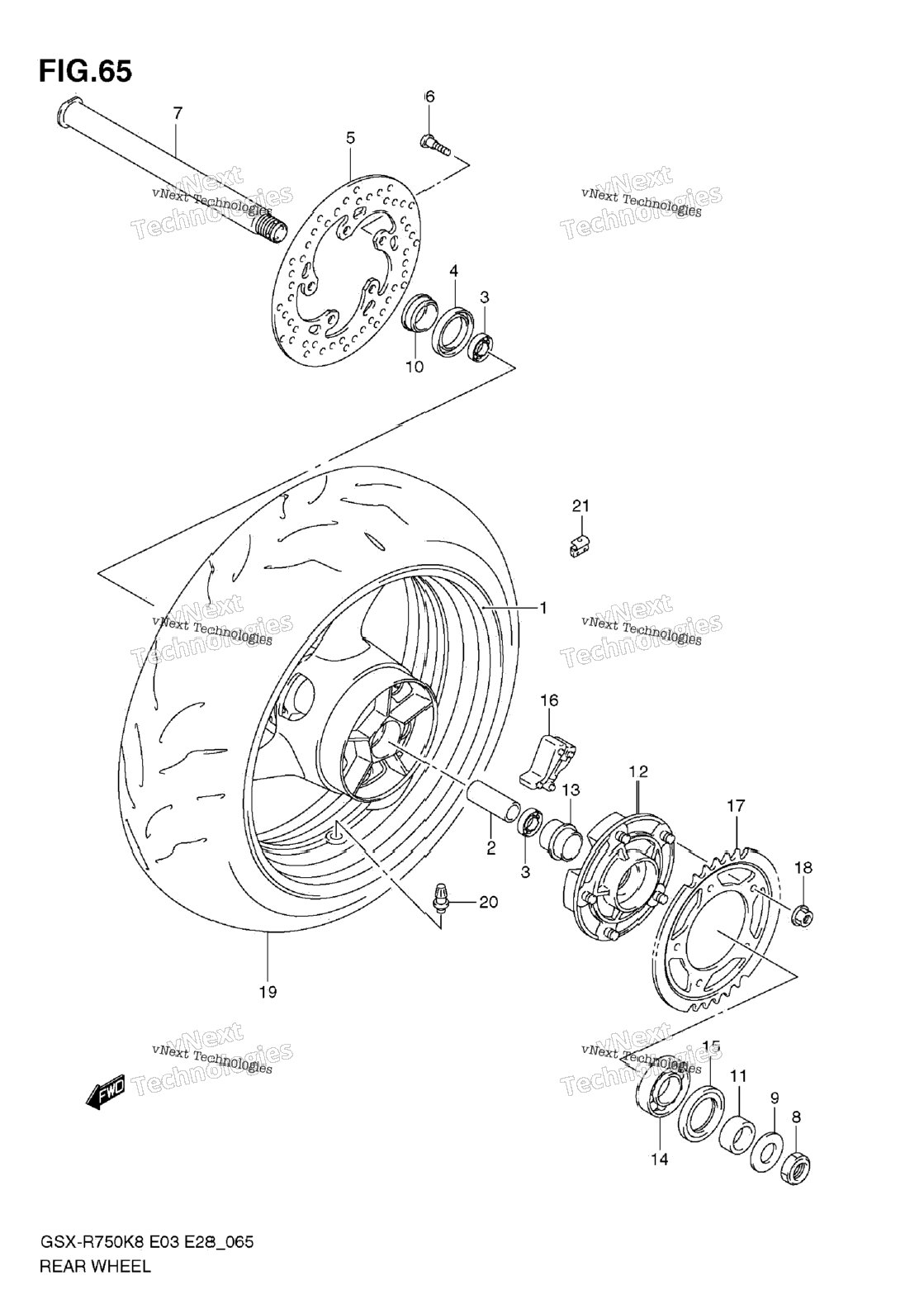

| 1 | 64111-37H00-019 | WHEEL, REAR (17M/CXMT5.50) (BLACK) MODEL K8:FOR CRU,ECE MODEL K9:EAH,FGG,GLR | 1 шт. | — | |
|
| 2 | 64111-37H00-YLY | WHEEL, REAR (17M/CXMT5.50) (BLUE) MODEL K8:FOR CWH | 0 шт. | — | |
|
| 3 | 64111-37H00-YMY | WHEEL, REAR (17M/CXMT5.50) (SILVER) MODEL K9:FOR CRU | 0 шт. | — | |
|
| 4 | 64731-01H00 | SPACER, HUB BEARING | 1 шт. | — | |
|
| 5 | 09262-28043 | BEARING (28X52X12) | 2 шт. | — | |
|
| 6 | 09284-37001 | SEAL, RR WHEEL BEARING, R | 1 шт. | — | |
|
| 7 | 69211-18G00 | DISC,REAR BRAKE | 1 шт. | — | |
|
| 8 | 09106-08160 | BOLT | 5 шт. | — | |
|
| 9 | 64711-49G00 | AXLE,RR | 1 шт. | — | |
|
| 10 | 09159-25003 | NUT | 1 шт. | — | |
|
| 11 | 09160-25070 | WASHER | 1 шт. | — | |
|
| 12 | 64741-35F00 | SPACER, AXLE RH | 1 шт. | — | |
|
| 13 | 64751-35F00 | SPACER, AXLE LH | 1 шт. | — | |
|
| 14 | 64610-44G00 | DRUM, REAR SPROCKET | 1 шт. | — | |
|
| 15 | 64733-35F00 | RETAINER, SPROCKET DRUM | 1 шт. | — | |
|
| 16 | 09262-32007 | BEARING (32X65X17) | 1 шт. | — | |
|
| 17 | 09285-39001 | OIL SEAL (39X65X7) | 1 шт. | — | |
|
| 18 | 64651-44G00 | ABSORBER, HUB SHOCK | 5 шт. | — | |
|
| 19 | 64511-39F00 | SPROCKET,REAR,45T-525 (NT:45) | 1 шт. | — | |
|
| 20 | 08319-3110A | NUT | 5 шт. | — | |
|
| 21 | 65110-38H00 | TIRE, REAR, 180/55 ZR17M/C (73W)(BRIDGESTONE) BATTLAX BT016R E | 0 шт. | — | |
|
| 22 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 23 | 55411-22H00 | BALANCER,WHEEL (10G) | 1 шт. | — | |
|
| 24 | 55412-22H00 | BALANCER,WHEEL (20G) | 1 шт. | — | |
|
| 25 | 55413-22H00 | BALANCER,WHEEL (30G) | 1 шт. | — | |
|
