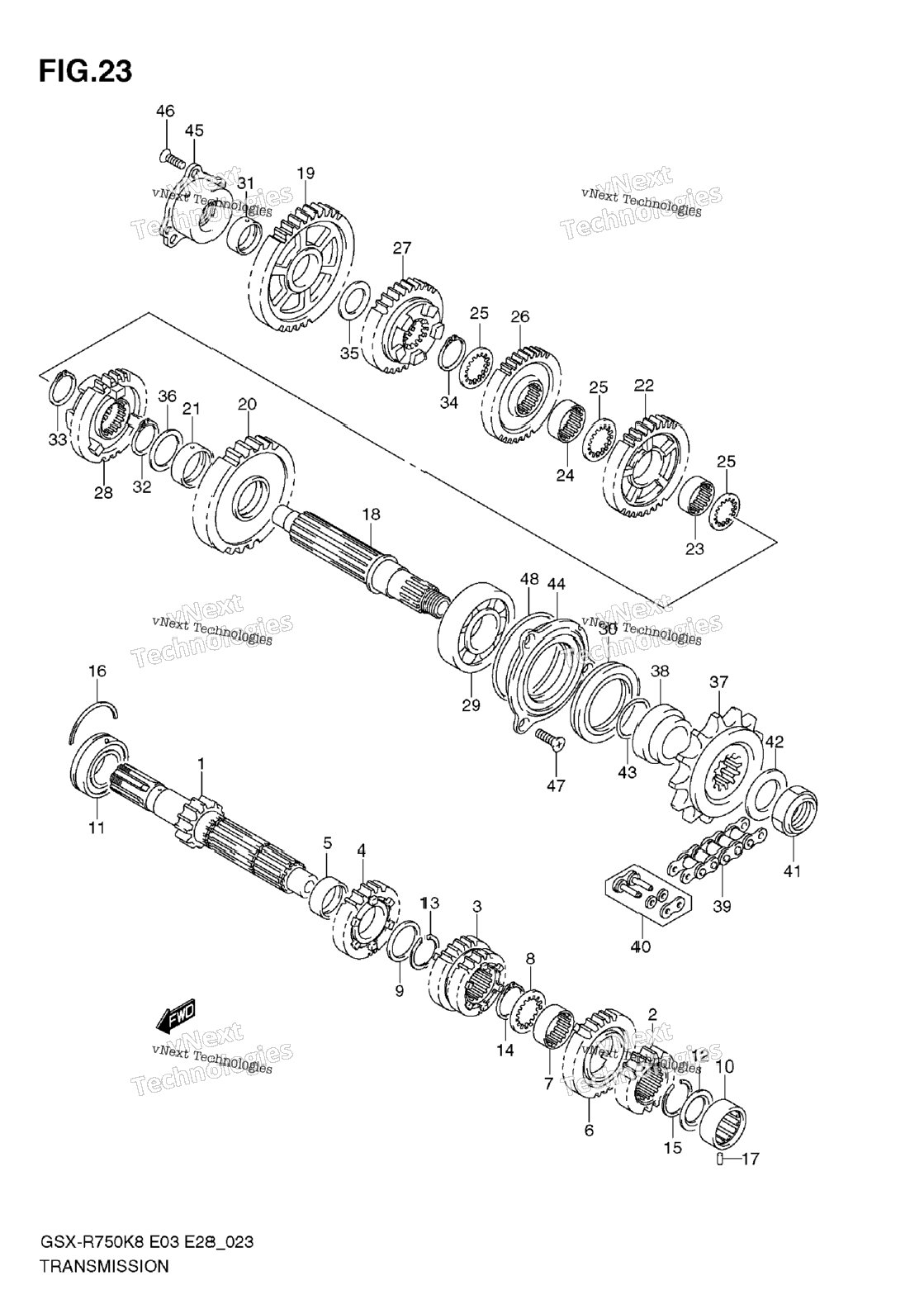

| 1 | 24120-01H00 | SHAFT, COUNTER (NT:14) | 0 шт. | — | |
|
| 2 | 24221-35F00 | GEAR,2ND DRIVE (NT:19) | 1 шт. | — | |
|
| 3 | 24231-01H00 | GEAR,3RD & 4TH DRIVE (NT:21/2 | 1 шт. | — | |
|
| 4 | 24251-01H00 | GEAR, 5TH DRIVE (NT:23) | 1 шт. | — | |
|
| 5 | 24252-35F00 | BUSH 5TH DRIVE GEAR | 1 шт. | — | |
|
| 6 | 24261-01H01 | GEAR,6TH DRIVEN (NT:24) | 1 шт. | — | |
|
| 7 | 24262-35F00 | BUSH, 6TH DRIVE GEAR | 1 шт. | — | |
|
| 8 | 09167-27001 | WASHER,LOCK (27X36X1) | 1 шт. | — | |
|
| 9 | 09160-27008 | WASHER, 5TH DRIVE 27X36X1.0 | 1 шт. | — | |
|
| 10 | 09263-20087 | BEARING, CNTR LH 20X34X13.5 | 1 шт. | — | |
|
| 11 | 09262-25150 | BEARING, CNTR RH 25X62X17 | 1 шт. | — | |
|
| 12 | 09285-20006 | SEAL,OIL (20X31.2X2.7) | 1 шт. | — | |
|
| 13 | 09380-27006 | CIRCLIP, 5TH DRIVE | 1 шт. | — | |
|
| 14 | 09380-27006 | CIRCLIP, 6TH DRIVE | 1 шт. | — | |
|
| 15 | 09380-27004 | CIRCLIP, 2ND DRIVE | 1 шт. | — | |
|
| 16 | 09390-62012 | C-RING | 1 шт. | — | |
|
| 17 | 09261-06003 | PIN, COUNTER SHAFT, LH | 1 шт. | — | |
|
| 18 | 24131-01H01 | SHAFT, DRIVE | 1 шт. | — | |
|
| 19 | 24311-35F20 | GEAR,1ST DRIVEN (NT:39) | 1 шт. | — | |
|
| 20 | 24321-35F11 | GEAR,2ND DRIVEN (NT:39) | 1 шт. | — | |
|
| 21 | 24322-35F00 | BUSH, 2ND DRIVEN | 1 шт. | — | |
|
| 22 | 24331-40F30 | GEAR,3RD DRIVEN (NT:36) | 1 шт. | — | |
|
| 23 | 24262-17E01 | BUSH, 3RD DRIVEN | 1 шт. | — | |
|
| 24 | 24262-17E01 | BUSH, 4TH DRIVEN GEAR | 1 шт. | — | |
|
| 25 | 24333-02F00 | WASHER, 3RD & 4TH DRIVEN | 3 шт. | — | |
|
| 26 | 24341-40F20 | GEAR,4TH DRIVEN (NT:36) | 1 шт. | — | |
|
| 27 | 24351-01H20 | GEAR,5TH DRIVEN (NT:31) | 1 шт. | — | |
|
| 28 | 24361-01H00 | GEAR, 6TH DRIVEN (NT:26) | 1 шт. | — | |
|
| 29 | 09262-28045 | BEARING, DRIVE SHAFT, LH 28X70X18 | 1 шт. | — | |
|
| 30 | 09283-42018 | SEAL,OIL (42X62X7) 42X62X7 | 1 шт. | — | |
|
| 31 | 09300-22008 | BUSH, 1ST DRIVEN GEAR 22X26X9 | 1 шт. | — | |
|
| 32 | 09380-27006 | CIRCLIP, 2ND DRIVEN GEAR | 1 шт. | — | |
|
| 33 | 09380-27006 | CIRCLIP, 3RD DRIVEN GEAR | 1 шт. | — | |
|
| 34 | 09380-27006 | CIRCLIP, 4TH DRIVEN GEAR | 1 шт. | — | |
|
| 35 | 09181-22223 | WASHER, 1ST DRIVEN LH 22X34X1.0 | 1 шт. | — | |
|
| 36 | 09160-27008 | WASHER, 2ND DRIVEN 27X36X1.0 | 1 шт. | — | |
|
| 37 | 27510-20A20 | SPROCKET, ENGINE (NT:17) | 1 шт. | — | |
|
| 38 | 27531-01H00 | SPACER, ENGINE SPROCKET | 1 шт. | — | |
|
| 39 | 27600-33E40-116 | CHAIN ASSY (RK GB525R0Z5Y) | 1 шт. | — | |
|
| 40 | 27620-33E40 | JOINT SET OPT | 1 шт. | — | |
|
| 41 | 09159-20004 | NUT, ENGINE SPROCKET | 1 шт. | — | |
|
| 42 | 09160-25009 | WASHER (25X41X3) | 1 шт. | — | |
|
| 43 | 09280-24010 | O RING (D:2.4,ID:23.7) | 1 шт. | — | |
|
| 44 | 24751-01H10 | RETAINER, DRIVE SHAFT, L | 1 шт. | — | |
|
| 45 | 24771-01810 | HOUSING, DRIVE SHAFT SET | 1 шт. | — | |
|
| 46 | 09139-06159 | SCREW, DRIVE SHAFT (6X20) | 3 шт. | — | |
|
| 47 | 09139-06159 | SCREW, RETAINER (6X20) | 3 шт. | — | |
|
| 48 | 09280-68009 | O RING | 1 шт. | — | |
|
