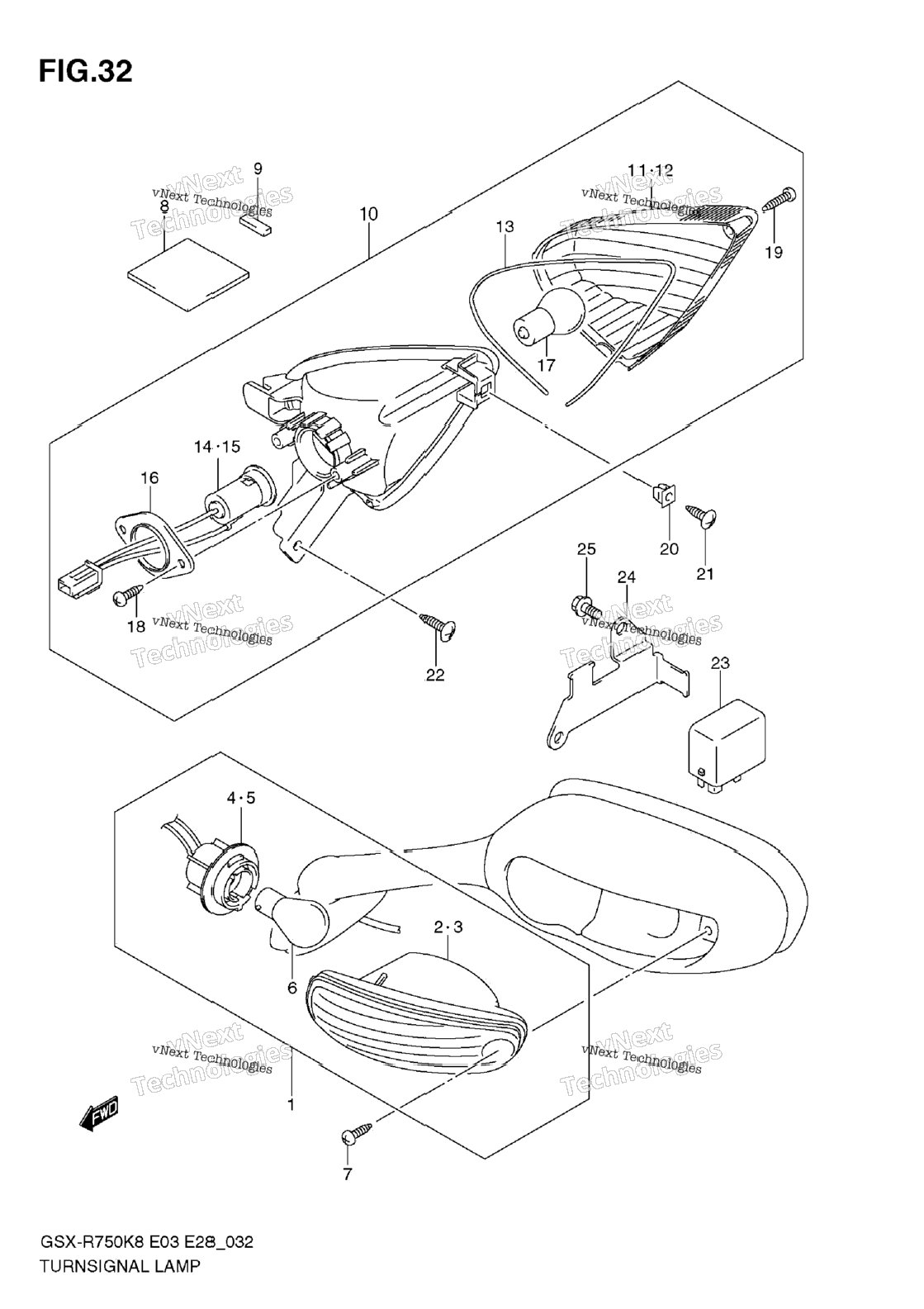

| 1 | 35601-41G00 | LAMP ASSY, FRONT, R | 1 шт. | — | |
|
| 2 | 35602-41G00 | LAMP ASSY, FRONT, L | 1 шт. | — | |
|
| 3 | 35610-41G00 | LAMP UNIT, R | 1 шт. | — | |
|
| 4 | 35630-41G00 | LAMP UNIT, L | 1 шт. | — | |
|
| 5 | 35618-10G50 | SOCKET & CORD, R | 1 шт. | — | |
|
| 6 | 35638-10G50 | SOCKET & CORD, L | 1 шт. | — | |
|
| 7 | 09471-12186 | BULB (12V21W) | 2 шт. | — | |
|
| 8 | 09132-04032 | SCREW (4X20) | 2 шт. | — | |
|
| 9 | 33652-20C00 | PROTECTOR (50X50X5) CUT AS REQUIRED (20X10X5) | 2 шт. | — | |
|
| 10 | 94443-21H00 | CUSHION, FRONT (20X5X0.4) | 2 шт. | — | |
|
| 11 | 35603-21H00 | LAMP ASSY, REAR, R | 1 шт. | — | |
|
| 12 | 35604-21H00 | LAMP ASSY, REAR, L | 1 шт. | — | |
|
| 13 | 35652-21H00 | LENS, R | 1 шт. | — | |
|
| 14 | 35672-21H00 | LENS, L | 1 шт. | — | |
|
| 15 | 35653-21H00 | GASKET | 2 шт. | — | |
|
| 16 | 35658-41G00 | SOCKET & CORD, R | 1 шт. | — | |
|
| 17 | 35678-41G00 | SOCKET & CORD, L | 1 шт. | — | |
|
| 18 | 35716-07A30 | PLATE, REAR | 2 шт. | — | |
|
| 19 | 09471-12186 | BULB (12V21W) | 2 шт. | — | |
|
| 20 | 03211-0412A | SCREW | 2 шт. | — | |
|
| 21 | 03212-04169 | SCREW | 2 шт. | — | |
|
| 22 | 09148-04021 | NUT, REAR TURNSIGNAL | 2 шт. | — | |
|
| 23 | 03541-0412A | SCREW, REAR | 2 шт. | — | |
|
| 24 | 03541-0512A | SCREW, REAR | 2 шт. | — | |
|
| 25 | 38610-03F00 | RELAY ASSY, TURNSIGNAL | 1 шт. | — | |
|
| 26 | 38621-37H00 | BRACKET, RELAY | 1 шт. | — | |
|
| 27 | 01550-0612A | NUT, BRKT | 2 шт. | — | |
|
