Применяемость детали ZONGSHEN 100108525
Статистика
Всего каталогов: 5
Всего схем: 10
Позиций: 10
Схемы применения
| Каталог | Схема | Позиция | Артикул | Описание | Превью | Действия |
|---|---|---|---|---|---|---|
ZONGSHEN 2024 NC250 | 气缸体部件 CYLINDER ASSEMBLY | 1 | 100108525 | Штифт 13x14 |  | |
ZONGSHEN 2024 NC250 | 右曲轴箱 RIGHT CRANKCASE | 17 | 100108525 | Dowel Pin,φ13×14 |  | |
ZONGSHEN 2024 NC250 | 右曲轴箱 RIGHT CRANKCASE | 17 | 100108525 | Dowel Pin,φ13×14 | | |
ZONGSHEN 2024 NC250S | 气缸体部件 CYLINDER ASSEMBLY | 1 | 100108525 | Dowel Pin,φ13×14 |  | |
ZONGSHEN 2024 NC250S | 右曲轴箱 RIGHT CRANKCASE | 19 | 100108525 | Dowel Pin,φ13×14 |  | |
ZONGSHEN 2024 NC250SR | 气缸体部件 CYLINDER ASSEMBLY | 1 | 100108525 | Dowel Pin,φ13×14 |  | |
ZONGSHEN 2024 NC250SR | 右曲轴箱 RIGHT CRANKCASE | 17 | 100108525 | Dowel Pin,φ13×14 |  | |
ZONGSHEN 2024 NC300S | 气缸体部件 CYLINDER ASSEMBLY | 1 | 100108525 | Dowel Pin,φ13×14 |  | |
ZONGSHEN 2024 NC300S | 右曲轴箱 RIGHT CRANKCASE | 19 | 100108525 | Dowel Pin,φ13×14 |  | |

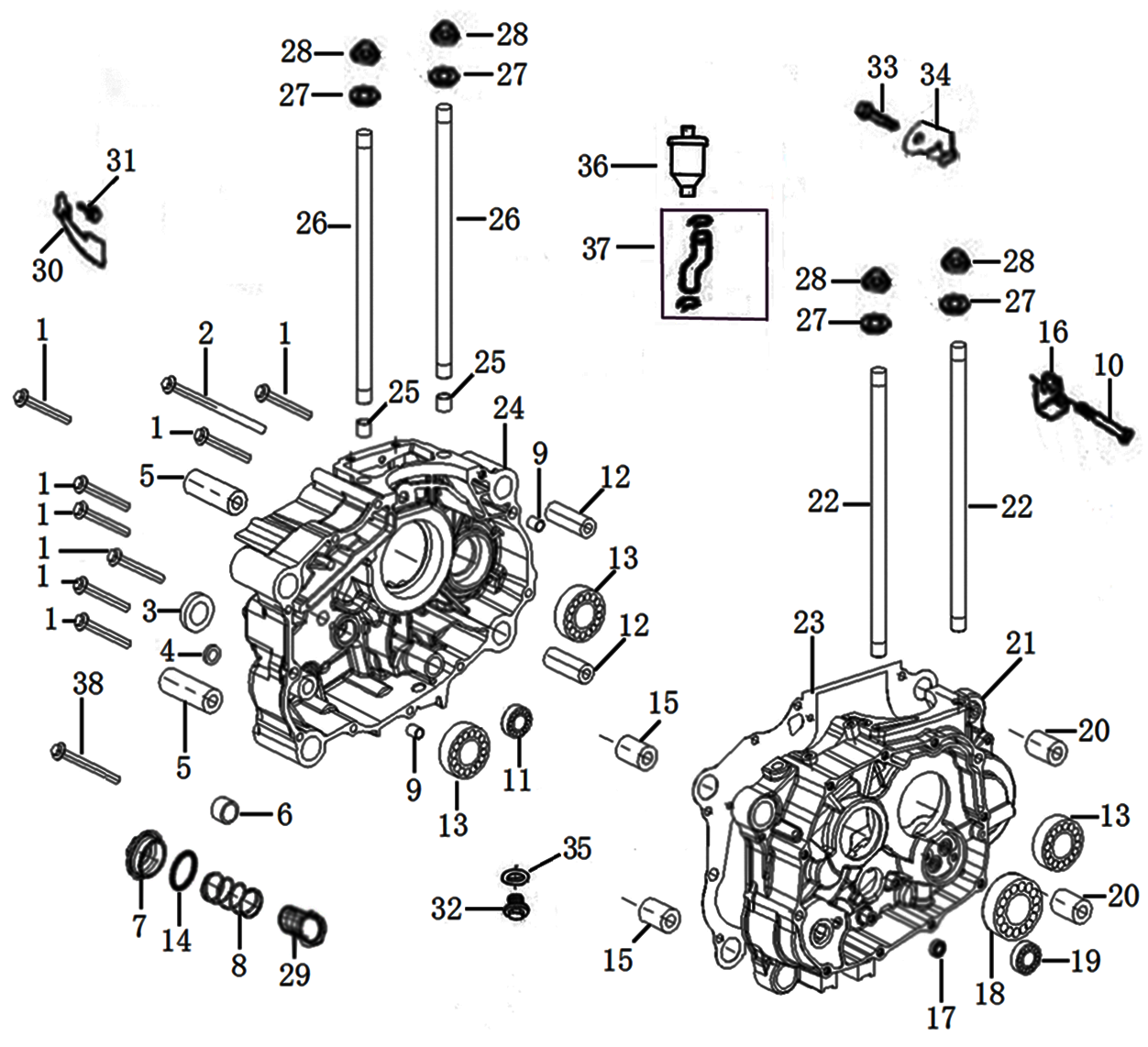

ZONGSHEN 2024 ZS174MN-3 | 曲轴箱 CRANKCASE | 9 | 100108525 | Dowel Pin,φ13×14 |  |
