Применяемость детали Suzuki 09111-06066
Статистика
Всего каталогов: 38
Всего схем: 38
Позиций: 38
Схемы применения
| Каталог | Схема | Позиция | Артикул | Описание | Превью | Действия |
|---|---|---|---|---|---|---|
Suzuki 2007 GSF1250S | Seat Схема Seat | 18 | 09111-06066 | SCREW, SEAT LOWER COVER |  | |
Suzuki 2007 GSF1250SA | Seat Схема Seat | 18 | 09111-06066 | SCREW, SEAT LOWER COVER |  | |
Suzuki 2007 GZ250 | Headlamp Housing Схема Headlamp Housing | 14 | 09111-06066 | BOLT |  | |
Suzuki 2008 GSF1250S | Seat Схема Seat | 18 | 09111-06066 | SCREW, SEAT LOWER COVER |  | |
Suzuki 2008 GSF1250SA | Seat Схема Seat | 18 | 09111-06066 | SCREW, SEAT LOWER COVER |  | |
Suzuki 2008 GSX1300BK | Rear Fender Схема Rear Fender | 6 | 09111-06066 | BOLT, FRONT NO.1 |  | |
Suzuki 2008 GSX1300BKA | Rear Fender Схема Rear Fender | 6 | 09111-06066 | BOLT, FRONT NO.1 |  | |

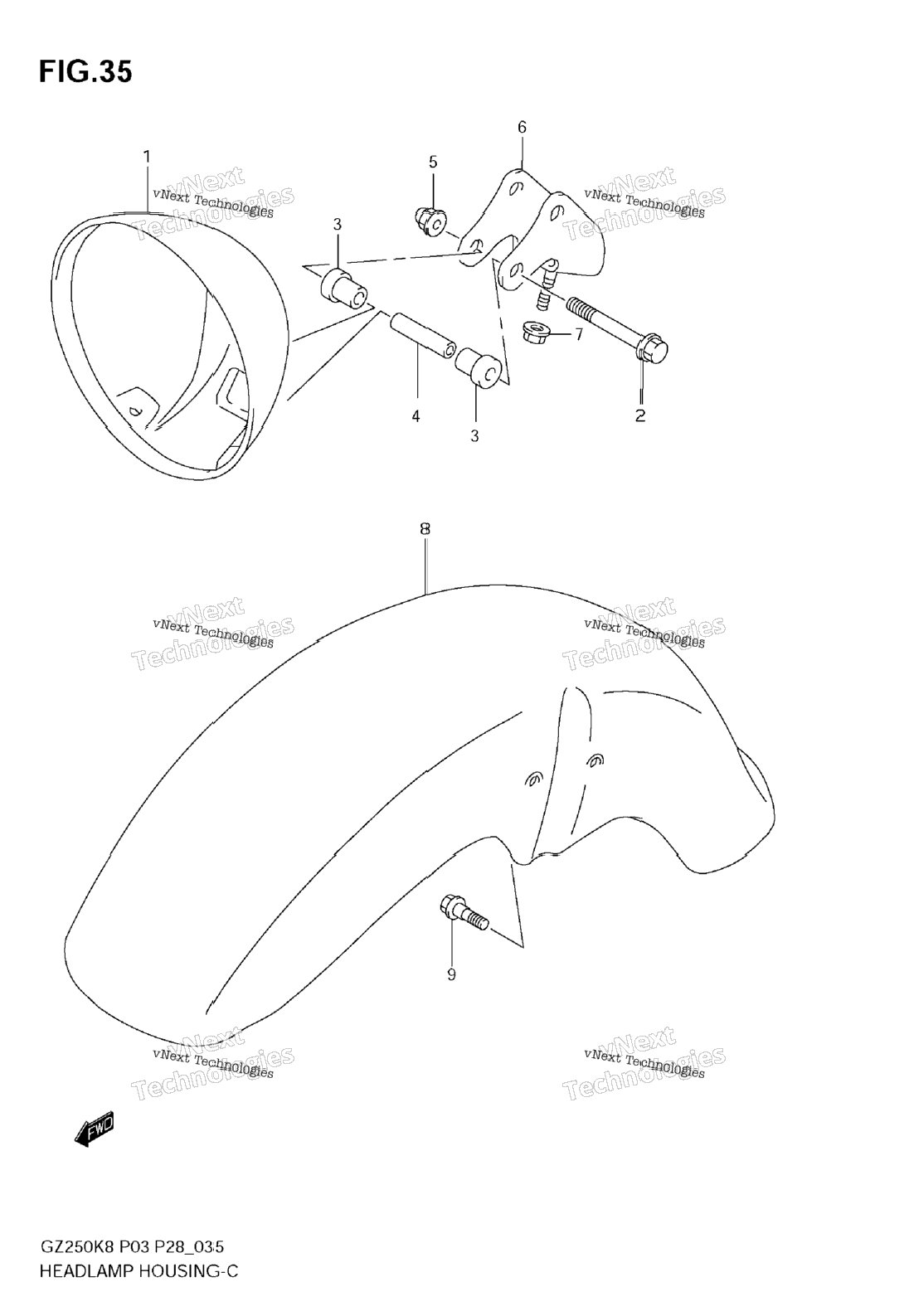

Suzuki 2008 GZ250 | Headlamp Housing Схема Headlamp Housing | 11 | 09111-06066 | BOLT |  | |
Suzuki 2008 GZ250K8 | Headlamp Housing Схема Headlamp Housing | 11 | 09111-06066 | BOLT |  | |

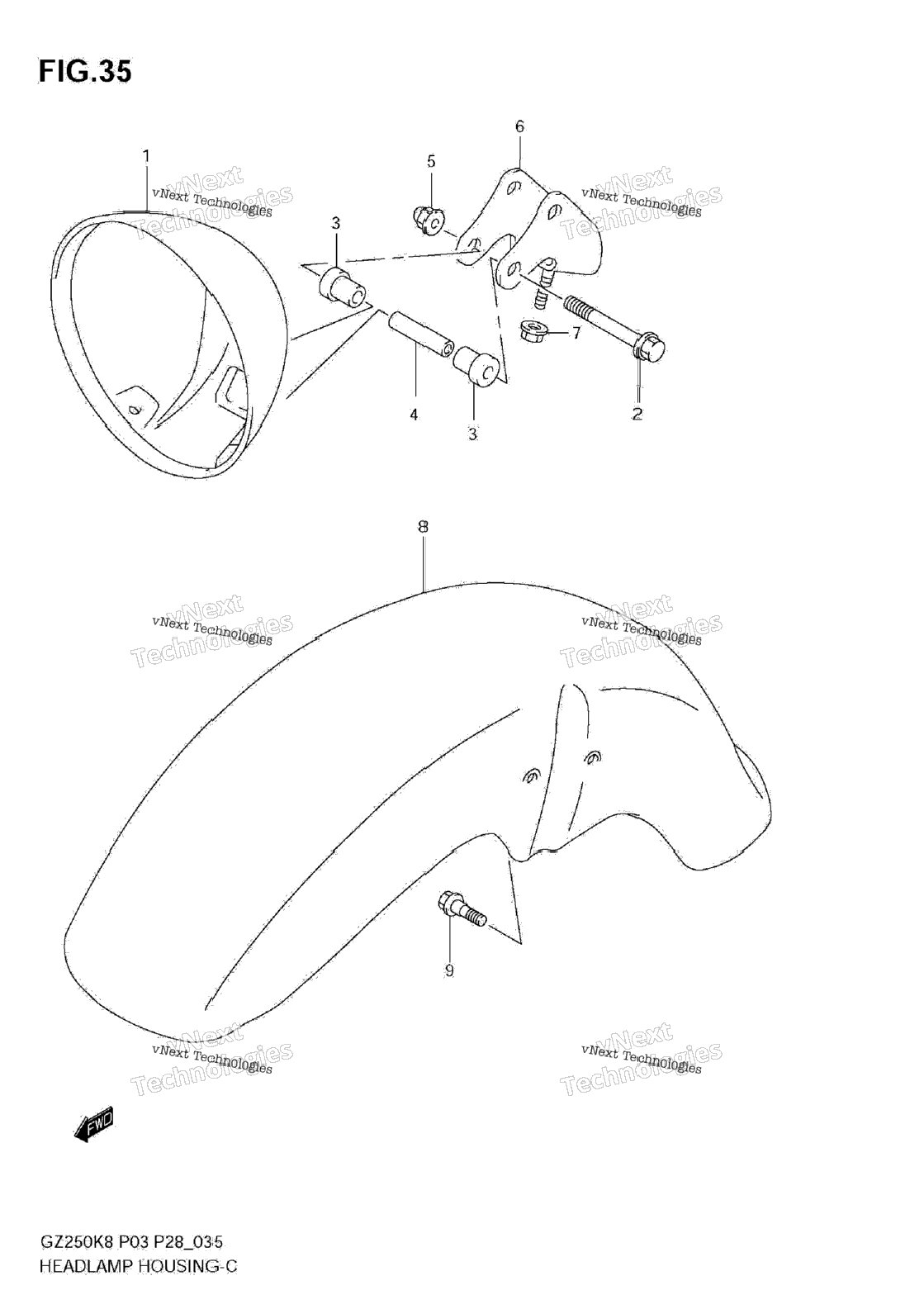

Suzuki 2008 GZ250K9 | Headlamp Housing Схема Headlamp Housing | 11 | 09111-06066 | BOLT |  | |
Suzuki 2008 GZ250L0 | Headlamp Housing Схема Headlamp Housing | 11 | 09111-06066 | BOLT |  | |
Suzuki 2009 GSF1250S | Seat Схема Seat | 18 | 09111-06066 | SCREW, SEAT LOWER COVER |  | |
Suzuki 2009 GSF1250SA | Seat Схема Seat | 18 | 09111-06066 | SCREW, SEAT LOWER COVER |  | |
Suzuki 2009 GSX1300BK | Rear Fender Схема Rear Fender | 6 | 09111-06066 | BOLT, FRONT NO.1 |  | |
Suzuki 2009 GSX1300BKA | Rear Fender Схема Rear Fender | 6 | 09111-06066 | BOLT, FRONT NO.1 |  | |
Suzuki 2009 GZ250 | Headlamp Housing Схема Headlamp Housing | 11 | 09111-06066 | BOLT |  | |
Suzuki 2009 GZ250K8 | Headlamp Housing Схема Headlamp Housing | 11 | 09111-06066 | BOLT |  | |
Suzuki 2009 GZ250K9 | Headlamp Housing Схема Headlamp Housing | 11 | 09111-06066 | BOLT |  | |
Suzuki 2009 GZ250L0 | Headlamp Housing Схема Headlamp Housing | 11 | 09111-06066 | BOLT |  | |
Suzuki 2010 GZ250K8 | Headlamp Housing Схема Headlamp Housing | 11 | 09111-06066 | BOLT |  | |
Suzuki 2010 GZ250K9 | Headlamp Housing Схема Headlamp Housing | 11 | 09111-06066 | BOLT |  | |
Suzuki 2010 GZ250L0 | Headlamp Housing Схема Headlamp Housing | 11 | 09111-06066 | BOLT |  | |
Suzuki 2011 GSX1250FAL1 | Seat Схема Seat | 18 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2012 DL650AL2 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2014 DL650AL4 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2015 DL650AL5 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2015 DL650XAL5 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2016 DL650AL6 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2017 DL650AL7 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2017 DL650XAL7 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2019 DL650AL9 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2019 DL650XAL9 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2022 DL650AM2 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2022 DL650XAM2 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2023 DL650AM3 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2023 DL650XAM3 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2024 DL650AM4 | Hydraulic Unit Схема Hydraulic Unit | 9 | 09111-06066 | BOLT (6X16) |  | |
Suzuki 2024 DL650XAM4 | Headlamp Схема Headlamp | 9 | 09111-06066 | BOLT (6X16) |  |
