Применяемость детали Yamaha 90467-09002-00
Статистика
Всего каталогов: 42
Всего схем: 63
Позиций: 63
Схемы применения
| Каталог | Схема | Позиция | Артикул | Описание | Превью | Действия |
|---|---|---|---|---|---|---|
Yamaha 2012 RAIDER | Fuel Tank 2 Схема Fuel Tank 2 | 34 | 90467-09002-00 | Clip FOR U49 |  | |
Yamaha 2012 RAIDER | Fuel Tank 2 Схема Fuel Tank 2 | 33 | 90467-09002-00 | Clip FOR CAL | | |
Yamaha 2012 ROADLINER | Fuel Tank 2 Схема Fuel Tank 2 | 33 | 90467-09002-00 | Clip FOR CAL |  | |
Yamaha 2012 ROADLINER | Fuel Tank 2 Схема Fuel Tank 2 | 34 | 90467-09002-00 | Clip FOR U49 | | |
Yamaha 2012 ROYAL | Fuel Tank Схема Fuel Tank | 33 | 90467-09002-00 | Clip |  | |
Yamaha 2012 STRATOLINER | Fuel Tank 2 Схема Fuel Tank 2 | 34 | 90467-09002-00 | Clip FOR U49 |  | |
Yamaha 2012 STRATOLINER | Fuel Tank 2 Схема Fuel Tank 2 | 33 | 90467-09002-00 | Clip FOR CAL | | |
Yamaha 2012 YZ85 | Fuel Tank Схема Fuel Tank | 25 | 90467-09002-00 | Clip |  | |

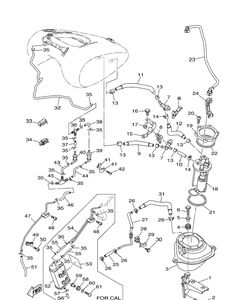

Yamaha 2013 RAIDER | Fuel Tank 2 Схема Fuel Tank 2 | 36 | 90467-09002-00 | Clip FOR CAL |  | |
Yamaha 2013 RAIDER | Fuel Tank 2 Схема Fuel Tank 2 | 37 | 90467-09002-00 | Clip FOR U49 | | |
Yamaha 2013 ROADLINER | Fuel Tank 2 Схема Fuel Tank 2 | 33 | 90467-09002-00 | Clip FOR CAL |  | |
Yamaha 2013 ROADLINER | Fuel Tank 2 Схема Fuel Tank 2 | 34 | 90467-09002-00 | Clip FOR U49 | | |
Yamaha 2013 ROYAL | Fuel Tank Схема Fuel Tank | 33 | 90467-09002-00 | Clip |  | |
Yamaha 2013 STRATOLINER | Fuel Tank 2 Схема Fuel Tank 2 | 33 | 90467-09002-00 | Clip FOR CAL |  | |
Yamaha 2013 STRATOLINER | Fuel Tank 2 Схема Fuel Tank 2 | 34 | 90467-09002-00 | Clip FOR U49 | | |

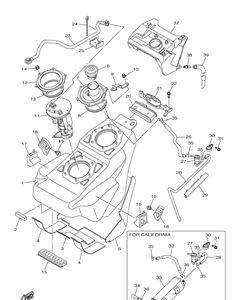

Yamaha 2013 VMAX | Fuel Tank Схема Fuel Tank | 37 | 90467-09002-00 | Clip FOR CALIFORNIA |  | |
Yamaha 2013 VMAX | Fuel Tank Схема Fuel Tank | 36 | 90467-09002-00 | Clip FOR U49 | | |
Yamaha 2013 YZ85 | Fuel Tank Схема Fuel Tank | 25 | 90467-09002-00 | Clip |  | |
Yamaha 2014 RAIDER | Fuel Tank 2 Схема Fuel Tank 2 | 37 | 90467-09002-00 | Clip FOR U49 |  | |
Yamaha 2014 RAIDER | Fuel Tank 2 Схема Fuel Tank 2 | 36 | 90467-09002-00 | Clip FOR CAL | | |
Yamaha 2014 ROADLINER | Fuel Tank 2 Схема Fuel Tank 2 | 33 | 90467-09002-00 | Clip FOR CAL |  | |
Yamaha 2014 ROADLINER | Fuel Tank 2 Схема Fuel Tank 2 | 34 | 90467-09002-00 | Clip FOR U49 | | |
Yamaha 2014 STRATOLINE | Fuel Tank 2 Схема Fuel Tank 2 | 33 | 90467-09002-00 | Clip FOR CAL |  | |
Yamaha 2014 STRATOLINE | Fuel Tank 2 Схема Fuel Tank 2 | 34 | 90467-09002-00 | Clip FOR U49 | | |
Yamaha 2014 STRATOLINER | Fuel Tank 2 Схема Fuel Tank 2 | 34 | 90467-09002-00 | Clip FOR U49 |  | |
Yamaha 2014 STRATOLINER | Fuel Tank 2 Схема Fuel Tank 2 | 33 | 90467-09002-00 | Clip FOR CAL | | |
Yamaha 2014 VMAX | Fuel Tank Схема Fuel Tank | 36 | 90467-09002-00 | Clip |  | |
Yamaha 2014 VMAX | Fuel Tank Схема Fuel Tank | 37 | 90467-09002-00 | Clip FOR CALIFORNIA | | |
Yamaha 2014 YZ85 | Fuel Tank Схема Fuel Tank | 25 | 90467-09002-00 | Clip |  | |
Yamaha 2015 RAIDER | Fuel Tank 2 Схема Fuel Tank 2 | 36 | 90467-09002-00 | Clip FOR CAL |  | |
Yamaha 2015 RAIDER | Fuel Tank 2 Схема Fuel Tank 2 | 37 | 90467-09002-00 | Clip FOR U49 | | |
Yamaha 2015 VMAX | Fuel Tank Схема Fuel Tank | 36 | 90467-09002-00 | Clip FOR U49 |  | |
Yamaha 2015 VMAX | Fuel Tank Схема Fuel Tank | 37 | 90467-09002-00 | Clip FOR CALIFORNIA | | |
Yamaha 2015 YZ85 | Fuel Tank Схема Fuel Tank | 25 | 90467-09002-00 | Clip |  | |
Yamaha 2016 RAIDER | Fuel Tank 2 Схема Fuel Tank 2 | 36 | 90467-09002-00 | Clip FOR CAL |  | |
Yamaha 2016 RAIDER | Fuel Tank 2 Схема Fuel Tank 2 | 37 | 90467-09002-00 | Clip FOR U49 | | |
Yamaha 2016 VMAX | Fuel Tank Схема Fuel Tank | 36 | 90467-09002-00 | Clip FOR U49 |  | |
Yamaha 2016 VMAX | Fuel Tank Схема Fuel Tank | 37 | 90467-09002-00 | Clip FOR CALIFORNIA | | |
Yamaha 2016 YZ85 | Fuel Tank Схема Fuel Tank | 25 | 90467-09002-00 | Clip |  | |
Yamaha 2017 RAIDER | Flasher Light Схема Flasher Light | 37 | 90467-09002-00 | Clip FOR U49 |  | |
Yamaha 2017 RAIDER | Flasher Light Схема Flasher Light | 36 | 90467-09002-00 | Clip FOR CAL | | |

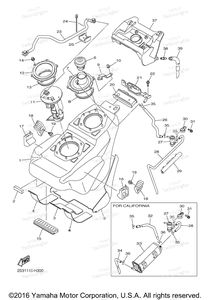

Yamaha 2017 VMAX | Fuel Tank Схема Fuel Tank | 36 | 90467-09002-00 | Clip |  | |
Yamaha 2017 VMAX | Fuel Tank Схема Fuel Tank | 37 | 90467-09002-00 | Clip FOR CALIFORNIA | | |
Yamaha 2017 YZ85 | Fuel Tank Схема Fuel Tank | 25 | 90467-09002-00 | Clip |  | |
Yamaha 2018 VMAX | Fuel Tank Схема Fuel Tank | 36 | 90467-09002-00 | Clip FOR 49 |  | |
Yamaha 2018 VMAX | Fuel Tank Схема Fuel Tank | 37 | 90467-09002-00 | Clip FOR CALIFORNIA | | |
Yamaha 2018 YZ65 | Fuel Tank Схема Fuel Tank | 24 | 90467-09002-00 | Clip |  | |
Yamaha 2018 YZ85 | Fuel Tank Схема Fuel Tank | 25 | 90467-09002-00 | Clip |  | |
Yamaha 2019 VMAX | Fuel Tank Схема Fuel Tank | 36 | 90467-09002-00 | Clip FOR U49 |  | |
Yamaha 2019 VMAX | Fuel Tank Схема Fuel Tank | 37 | 90467-09002-00 | Clip FOR CALIFORNIA | | |
Yamaha 2019 YZ85 | Fuel Tank Схема Fuel Tank | 24 | 90467-09002-00 | Clip |  | |
Yamaha 2020 VMAX | Fuel Tank Схема Fuel Tank | 36 | 90467-09002-00 | Clip |  | |
Yamaha 2020 VMAX | Fuel Tank Схема Fuel Tank | 37 | 90467-09002-00 | Clip FOR CALIFORNIA | | |
Yamaha 2020 YZ65 | Fuel Tank Схема Fuel Tank | 24 | 90467-09002-00 | Clip |  | |
Yamaha 2020 YZ85 | Fuel Tank Схема Fuel Tank | 24 | 90467-09002-00 | Clip |  | |
Yamaha 2021 YZ65 | Fuel Tank Схема Fuel Tank | 24 | 90467-09002-00 | Clip |  | |
Yamaha 2021 YZ85 | Fuel Tank Схема Fuel Tank | 24 | 90467-09002-00 | Clip |  | |
Yamaha 2022 YZ65 | Fuel Tank Схема Fuel Tank | 24 | 90467-09002-00 | Clip |  | |
Yamaha 2022 YZ85 | Fuel Tank Схема Fuel Tank | 22 | 90467-09002-00 | Clip |  | |
Yamaha 2023 YZ65 | Fuel Tank Схема Fuel Tank | 24 | 90467-09002-00 | Clip |  | |
Yamaha 2023 YZ85 | Fuel Tank Схема Fuel Tank | 22 | 90467-09002-00 | Clip |  | |
Yamaha 2024 YZ65 | Fuel Tank Схема Fuel Tank | 24 | 90467-09002-00 | Clip |  | |
Yamaha 2024 YZ85 | Fuel Tank Схема Fuel Tank | 22 | 90467-09002-00 | Clip |  |
